A petrol (gas) station is to be set up for fully automated operation. A driver inputs his or her credit card into the pump, the
card is verified by communication with a credit company computer and a fuel limit established. The driver may then take the fuel required and, on completion of delivery (when the pump hose is returned to its holster), the driver's credit account is debited with the cost of the fuel taken. The credit card is returned after debiting. If the card is invalid, it is returned by the pump with no fuel dispensed
1 answer:
Answer:
Explanation:
Gas Filling Station has pumps. Pumps have credit card readers. Driver can able to swipe their cards, pumps have Fuel. Pumps card readers communicate with Credit Company. Driver interacts with pump for fuel and credit card.
In this situation the following we need to treat as objects.
They are Pump, Card reader, Fuel tank, communication system, system controller and price table.

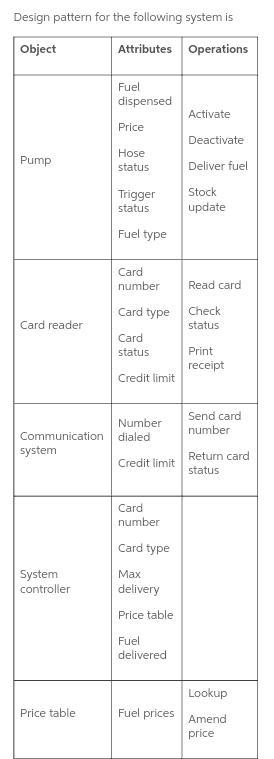

Design pattern for the following system is attached below
You might be interested in
Answer:
<u>The total time elapsed from the time a bit is created (from the original analog signal at Host A) until the bit is decoded (as part of the analog signal at Host B is </u><u>25.11 ms</u>
Explanation:
Host A first converts the analog signal to a digital 64kbps stream and then groups it into 56-byte packets. The time taken for this can be calculated as:
time taken 1=
= (56 x 8) bits / 64 x 10³ bits/s
= 7 x 10⁻³s
time taken 1= 7 ms
The transmission rate of the packet from Host A to Host B is 4 Mbps. The time taken to transfer the packets can be calculated as:
time taken 2= (56 x 8) bits / 4 x 10⁶ bits/s
= 1.12 x 10⁻⁴ s
time taken 2= 112 μs
The propagation delay is 18 ms.
To calculate the total time elapsed, we need to add up all the time taken at each individual stage.
<u /><u> = Time taken 1 + Time taken 2 + Propagation Delay</u>
= 7 ms + 112 μs + 18 ms
= 0.025112 s
= 25.11 ms
