Answer:
stress = 38.84 MPa
Explanation:
The function below takes a single string parameter: input_string. If the input contains the lowercase letter z, return the strin
g 'has the letter z'. Otherwise, return the string 'not worthwhile'.
1 answer:
Answer:
# string_contains function is defined with input_string
# as arguments
def string_contains(input_string):
# if-statement that check if letter z is in input_string
if 'z' in input_string:
# it print"has the letter z" if it has z
print("has the letter z")
else:
# else it print "not worthwhile"
print("not worthwhile")
# string_contains function is called
string_contains("The animal is zebra")
string_contains("learning is fun")
Explanation:
The code is written in Python and well commented.

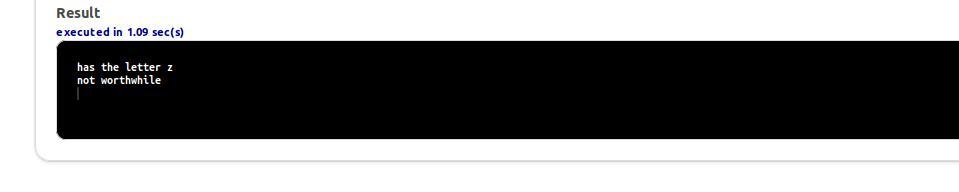

Image of the output when the function is called is attached.
You might be interested in
Answer:
hello the diagram attached to your question is missing attached below is the missing diagram
answer :
a) 48.11 MPa
b) - 55.55 MPa
Explanation:
First we consider the equilibrium moments about point A
∑ Ma = 0
( Fbd * 300cos30° ) + ( 24sin∅ * 450cos30° ) - ( 24cos∅ * 450sin30° ) = 0
therefore ;<em> Fbd = 36 ( cos ∅tan30° - sin∅ ) kN ----- ( 1 )</em>
A ) when ∅ = 0
Fbd = 20.7846 kN
link BD will be under tension when ∅ = 0, hence we will calculate the loading area using this equation
A = ( b - d ) t
b = 12 mm
d = 36 mm
t = 18
therefore loading area ( A ) = 432 mm^2
determine the maximum value of average normal stress in link BD using the relation below
бbd = = 20.7846 kN / 432 mm^2 = 48.11 MPa
b) when ∅ = 90°
Fbd = -36 kN
the negativity indicate that the loading direction is in contrast to the assumed direction of loading
There is compression in link BD
next we have to calculate the loading area using this equation ;
A = b * t
b = 36mm
t = 18mm
hence loading area = 36 * 18 = 648 mm^2
determine the maximum value of average normal stress in link BD using the relation below
бbd = = -36 kN / 648mm^2 = -55.55 MPa
Answer:
- hoop stress
- longitudinal stress
- material used
all this could led to the failure of the garden hose and the tear along the length
Explanation:
For the flow of water to occur in any equipment, water has to flow from a high pressure to a low pressure. considering the pipe, water is flowing at a constant pressure of 30 psi inside the pipe which is assumed to be higher than the allowable operating pressure of the pipe. but the greatest change in pressure will occur at the end of the hose because at that point the water is trying to leave the hose into the atmosphere, therefore the great change in pressure along the length of the hose closest to the end of the hose will cause a tear there. also the other factors that might lead to the failure of the garden hose includes :
hoop stress ( which acts along the circumference of the pipe):
αh = EQUATION 1
and Longitudinal stress ( acting along the length of the pipe )
αl = EQUATION 2
where p = water pressure inside the hose
d = diameter of hose, T = thickness of hose
we can as well attribute the failure of the hose to the material used in making the hose .
assume for a thin cylindrical pipe material used to be
≥ 20
insert this value into equation 1
αh = = 60/2 = 30 psi
the allowable hoop stress was developed by the material which could have also led to the failure of the garden hose
