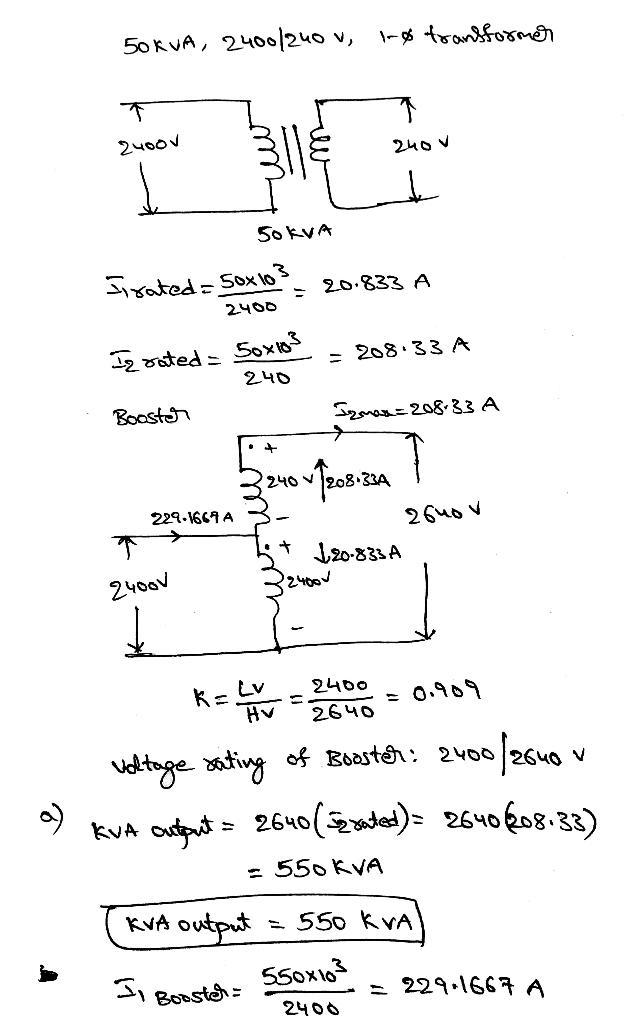

A 50 kVA, 2400/240 V, 1-Φ transformer is connected to act as a booster from 2400 to 2640 V. Without exceeding the rated current

of any winding and assuming an ideal transformer, determine (a) the kVA input and output, (b) the kVA transformed, and (c) the kVA conducted.

1 answer:

maxonik [38]2 years ago

7 0

Answer:

Explanation:

Find explanation below

You might be interested in

Water at 200C flows through a pipe of 10 mm diameter pipe at 1 m/s. Is the flow Turbulent ? a. Yes b. No

Degger [83]

Answer:

Yes, the flow is turbulent.

Explanation:

Reynolds number gives the nature of flow. If he Reynolds number is less than 2000 then the flow is laminar else turbulent.

Given:

Diameter of pipe is 10mm.

Velocity of the pipe is 1m/s.

Temperature of water is 200°C.

The kinematic viscosity at temperature 200°C is $1.557\times10^{-7}$ m2/s.

Calculation:

Step1

Expression for Reynolds number is given as follows:

$Re=\frac{vd}{\nu}$

Here, v is velocity, $\nu$ is kinematic viscosity, d is diameter and Re is Reynolds number.

Substitute the values in the above equation as follows:

$Re=\frac{vd}{\nu}$

$Re=\frac{1\times(10mm)(\frac{1m}{1000mm})}{1.557\times10^{-7}}$

Re=64226.07579

Thus, the Reynolds number is 64226.07579. This is greater than 2000.

Hence, the given flow is turbulent flow.

5 0

2 years ago

A 60-kg woman holds a 9-kg package as she stands within an elevator which briefly accelerates upward at a rate of g/4. Determine

Anuta_ua [19.1K]

Answer:

force R = 846.11 N

lifting force L = 110.36 N

if cable fail complete both R and L will be zero

Explanation:

given data

mass woman mw = 60 kg

mass package mp = 9 kg

accelerates rate a = g/4

to find out

force R and lifting force L and if cable fail than what values would R and L acquire

solution

we calculate here first reaction R force

we know elevator which accelerates upward

so now by direction of motion , balance the force that is express as

R - ( mw + mp ) × g = ( mw + mp ) × a

here put all these value and a = g/4 and use g = 9.81 m/s²

R - ( 60 + 9 ) × 9.81 = ( 60 + 9 ) × g/4

R = ( 69 ) × 9.81/4 + ( 69 ) 9.81

R = 69 ( 9.81 + 2.4525 )

force R = 846.11 N

and

lifting force is express as here

lifting force = mp ( g + a)

put here value

lifting force = 9 ( 9.81 + 9.81/4)

lifting force L = 110.36 N

and

we know if cable completely fail than body move free fall and experience no force

so both R and L will be zero

5 0

2 years ago

A six- lane freeway ( three lanes in each direction) in a scenic area has a measured free- flow speed of 55 mi/ h. The peak- hou

Novosadov [1.4K]

Answer:

0.867

Explanation:

The driver population factor ( $f_{p}$ )can be estimated using the equation below:

$f_{p} = \frac{V}{PHF*N*f_{HV}*v_{p}}$

The value of the heavy vehicle factor ( $f_{HV}$ ) is determined below:

The values of the $E_{T}$ = 2 and $E_{R}$ = 3 are gotten from the tables for the RVs, trucks and buses upgrades for passenger-car equivalents. Therefore:

$f_{HV}$ = 1/[1+0.08(2-1)+0.06(3-1)] = 1/[1+0.08+0.12] = 1/1.2 = 0.833

Furthermore, the vp is taken as 2250 pc/(h*In) from the table of LOS criteria for lane freeway using the 15 minutes flow rate. Therefore:

$f_{p}$ = 3900/[0.8*3*0.833*2250] = 3900/4498.2 = 0.867

6 0

2 years ago

Fix the code so the program will run correctly for MAXCHEESE values of 0 to 20 (inclusive). Note that the value of MAXCHEESE is

GarryVolchara [31]

Answer:

Code fixed below using Java

Explanation:

<u>Error.java </u>

import java.util.Random;

public class Error {

public static void main(String[] args) {

final int MAXCHEESE = 10;

String[] names = new String[MAXCHEESE];

double[] prices = new double[MAXCHEESE];

double[] amounts = new double[MAXCHEESE];

// Three Special Cheeses

names[0] = "Humboldt Fog";

prices[0] = 25.00;

names[1] = "Red Hawk";

prices[1] = 40.50;

names[2] = "Teleme";

prices[2] = 17.25;

System.out.println("We sell " + MAXCHEESE + " kind of Cheese:");

System.out.println(names[0] + ": $" + prices[0] + " per pound");

System.out.println(names[1] + ": $" + prices[1] + " per pound");

System.out.println(names[2] + ": $" + prices[2] + " per pound");

Random ranGen = new Random(100);

// error at initialising i

// i should be from 0 to MAXCHEESE value

for (int i = 0; i < MAXCHEESE; i++) {

names[i] = "Cheese Type " + (char) ('A' + i);

prices[i] = ranGen.nextInt(1000) / 100.0;

amounts[i] = 0;

System.out.println(names[i] + ": $" + prices[i] + " per pound");

}

}

}

7 0

2 years ago

Explain why the fundamental software engineering principles of process, dependability, requirements management, and reuse are re

Svet_ta [14]

Answer:

1. Costs and frequency of change.

2. The most important ‘non-functional’ requirements. Different systems have different priorities for non-functional requirements.

3. The software lifetime and delivery schedule.

Explanation:

The process of requirement gathering is required in both generic and customized software.

• A document to define the development process is required in all type of software application.

• Updating is required in each type of software. For doing so, new version of each type of software is released.

• Maintenance is an important part of software development. It is required in each type of application development.

• Software has some minimum requirements to execute. So, platform dependability is considered in all software development.

5 0

2 years ago
