Explain the major differences between designing buildings for earthquake resistance and for wind resistance.

Engineering

1 answer:

True [87]2 years ago

6 0

Answer:

Earthquake's put vibration and seismic load on a building while wind puts a continuous force throughout the whole structure.

Explanation:

The most important difference between the design of a building that's resistent to earthquakes and resistant to high speed winds is that earthquake's put vibration and seismic load on a building while wind puts a continuous force throughout the whole structure.

Earthquake resistent building are equipped with a base that is isolated from the buildings with several layers of different material which absorb the vibration of the seismic waves and prevent them from reaching to the building.

Wind resistent buildings must have strong foundations and a sturdy structure/material that can withstand high pressure that the wind applies during events such as hurricanes.

I hope this answer helps.

You might be interested in

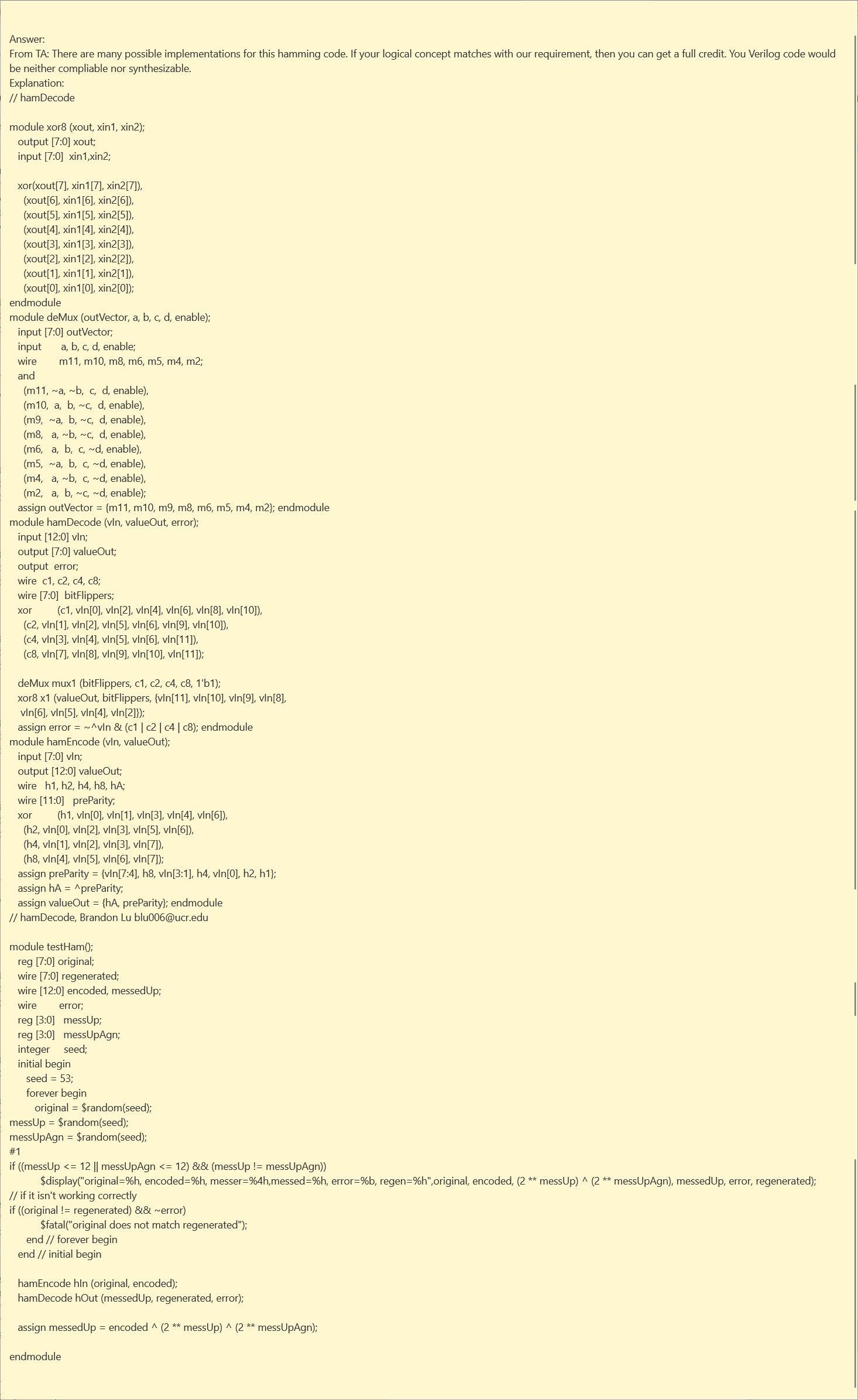

The Hamming encoder/decoder in the lecture detected and corrected one error bit. By adding a thirteen bit which is the exclusive

krek1111 [17]

Cos of error of special characters

The solution has been attached to the portal

7 0

2 years ago

A joining process in which a filler metal is melted and distributed by capillary action between faying surfaces, the base metals

PolarNik [594]

Answer:

A soldering process

Explanation:

Given that ,The filler metal's melting point temperature is less than 450 ° C.

Usually, the brazing material has the liquid temperature of the melting point, the full melting point of the filler material approaching 450 degrees centigrade, while the filler material is less than 450 degrees centigrade in the case of soldering.

Therefore the answer is "A soldering process".

4 0

2 years ago

The purification of hydrogen gas is possible by diffusion through a thin palladium sheet. Calculate the number of kilograms of h

diamong [38]

Answer:

$M=0.0411 kg/h or 4.1*10^{-2} kg/h$

Explanation:

We have to combine the following formula to find the mass yield:

$M=JAt$

$M=-DAt(ΔC/Δx)$

The diffusion coefficient : $D=6.0*10^{-8} m/s^{2}$

The area : $A=0.25 m^{2}$

Time : $t=3600 s/h$

ΔC: $(0.64-3.0)kg/m^{3}$

Δx: $3.1*10^{-3}m$

Now substitute the values

$M=-DAt(ΔC/Δx)$

$M=-(6.0*10^{-8} m/s^{2})(0.25 m^{2})(3600 s/h)[(0.64-3.0kg/m^{3})(3.1*10^{-3}m)]$

$M=0.0411 kg/h or 4.1*10^{-2} kg/h$

8 0

2 years ago

Python Homework

DerKrebs [107]

Answer:

TAX_RATE = 0.20
STANDARD_DEDUCTION = 10000.0
DEPENDENT_DEDUCTION = 3000.0
# Request the inputs
grossIncome = float(input("Enter the gross income: "))
numDependents = int(input("Enter the number of dependents: "))
# Compute the income tax
taxableIncome = grossIncome - STANDARD_DEDUCTION - \
DEPENDENT_DEDUCTION * numDependents
incomeTax = taxableIncome * TAX_RATE
# Display the income tax
print("The income tax is $" + str(round(incomeTax,2)))

Explanation:

We can use round function to enable the program to output number with two digits of precision.

The round function will take two inputs, which is the value intended to be rounded and the number of digits of precision. If we set 2 as second input, the round function will round the incomeTax to two decimal places. The round function has to be enclosed within the str function so that the rounded value will be converted to a string and joined with the another string to display the complete a sentence of income tax info.

5 0

2 years ago

Chapter 19: Diesel Engine Operation and Diagnosis -Chapter Quiz

Llana [10]

Answer: See explanation

Explanation:

1. How is diesel fuel ignited in a warm diesel engine?

B. Heat compression

2. Which type of diesel injection produces less noise?

A. Indirect injection (IDI)

3. Which diesel injection system requires the use of a glow plug?

A. Indirect injection (IDI)

4. The three phases of diesel ignition include:

C. Ignition delay, repaid combustion, controlled combustion.

5. What fuel system component is used in a vehicle equipped with a diesel engine that is seldom used on the same vehicle when it is equipped with a gasoline engine?

D. Water-fuel separator

6. The diesel injection pump is usually driven by a _________________.

A. Gear off the camshaft

7. Which diesel system supplies high-pressure diesel fuel to all the injectors all of the time?

C. High-pressure common rail

8. Glow plugs should have high resistance when _____________and lower resistance when __________________.

B. Warm/cold

9. Technician A says that glow plugs are used to help start a diesel engine and are shut off as soon as the engine starts. Technician B says that the glow plugs are turned off as soon as a flame is detected in the combustion chamber. Which Technician is correct?

D. Neither Technicians A NOR B

10. What part should be removed to test cylinder compression on a diesel engine?

D. A glow plug

6 0
