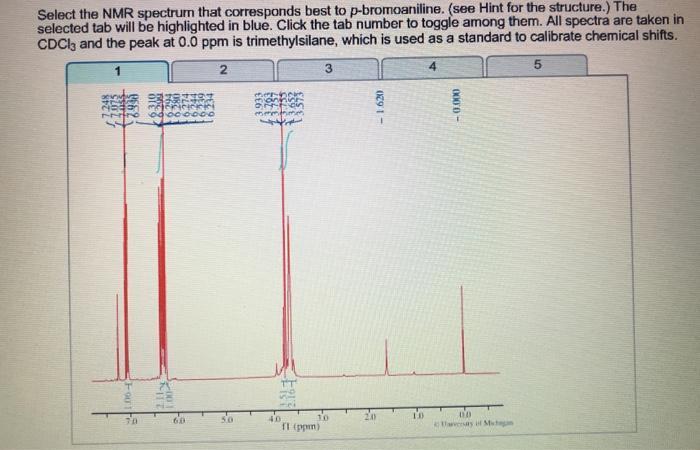

Select the NMR spectrum that corresponds best to p-bromoaniline. (see Hint for the structure.) The selected tab will be highligh
ted in blue. Click the tab number to toggle among them. All spectra are taken in CDCl3 and the peak at 0.0 ppm is trimethylsilane, which is used as a standard to calibrate chemical shifts.
1 answer:
Answer:
The NMR spectrum that corresponds best to p-bromoaniline is the one that is attached in the image below.
Explanation:
For the p-bromoaniline 3 types of hydrogen are observed. The first signal that appears at 3.7 ppm would be from the hydrogens of the NH2 group, the hydrogens in ortho position with respect to the NH2 group give a double at approximately 6.54 ppm, and finally the characteristic 7.21 ppm signal is observed for the hydrogens in meta position with with respect to the NH2 group.
You might be interested in
Answer:
4
Explanation:
Relationship between wavenumber and Rydberg constant (R) is as follows:
Here, Z is atomic number.
R=109677 cm^-1
Wavenumber is related with wavelength as follows:
wavenumber = 1/wavelength
wavelength = 253.4 nm
Z fro Be = 4
Therefore, the principal quantum number corresponding to the given emission is 4.
