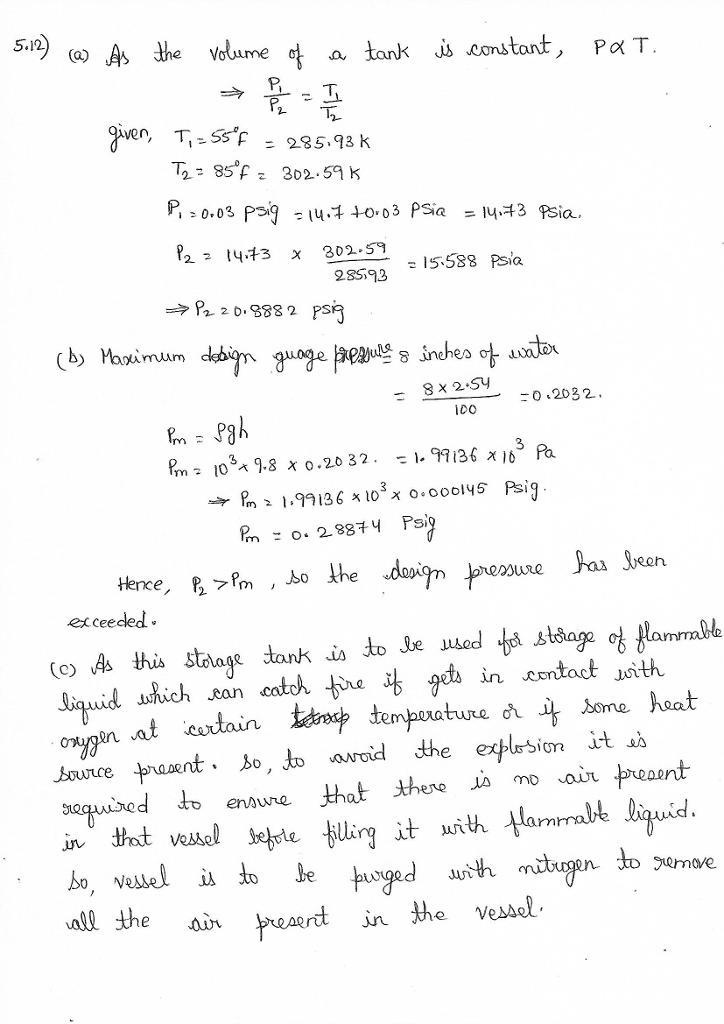

After being purged with nitrogen, a low-pressure tank used to store flammable liquids is at a total pressure of 0.03 psig. (a) I
f the purging process is done in the morning when the tank and its contents are at 55°F, what will be the pressure in the tank when it is at 85℉ in the afternoon? (b) If the maximum design gauge pressure of the tank is 8 inches of water, has the design pressure been exceeded? (c) Speculate on the purpose of purging the tank with nitrogen
1 answer:
You might be interested in
Answer:
<em>minimum required diameter of the steel linkage is 3.57 mm</em>
<em></em>
Explanation:
original length of linkage l = 10 m
force to be transmitted f = 2 kN = 2000 N
extension e = 5 mm= 0.005 m
maximum stress σ = 200 N/mm^2 =
maximum stress allowed on material σ = force/area
imputing values,
200 = 2000/area
area = 2000/() =
m^2
recall that area =
=
=
=
=
m = 3.57 mm
<em>maximum diameter of the steel linkage d = 3.57 mm</em>
Answer:
net amount of energy change of the air in the room during a 30-min period = 660KJ
Explanation:
The detailed calculation is as shown in the attached file.
