An air standard cycle with constant specific heats is executed in a closed pistoncylinder system and is composed of the followin
g four processes: 1-2 Isentropic compression 2-3 Constant volume heat addition 3-4 Isentropic expansion with a volume ratio, r1=V4/V3 4-1 Constant pressure heat rejection with a volume ratio, r2=V4/V1 (a) Sketch the P-v and T-s diagrams for this cycle. (b)Find out T2/T1 as a function of k, r1, r2 only. (c) Find out T4/T1 as a function of k, r1, r2 only. (d)Find out T3/T4 as a function of k, r1, r2 only. (e) Find out T3/T2 as a function of k, r1, r2 only. (f) Obtain an expression for the back work ratio for a fixed minimum-tomaximum temperature ratio T1/T3. The expression should be of a function of T1/T3, k, r1, r2 only. (g)Obtain an expression for the cycle thermal efficiency as a function of k, r1, r2 only.

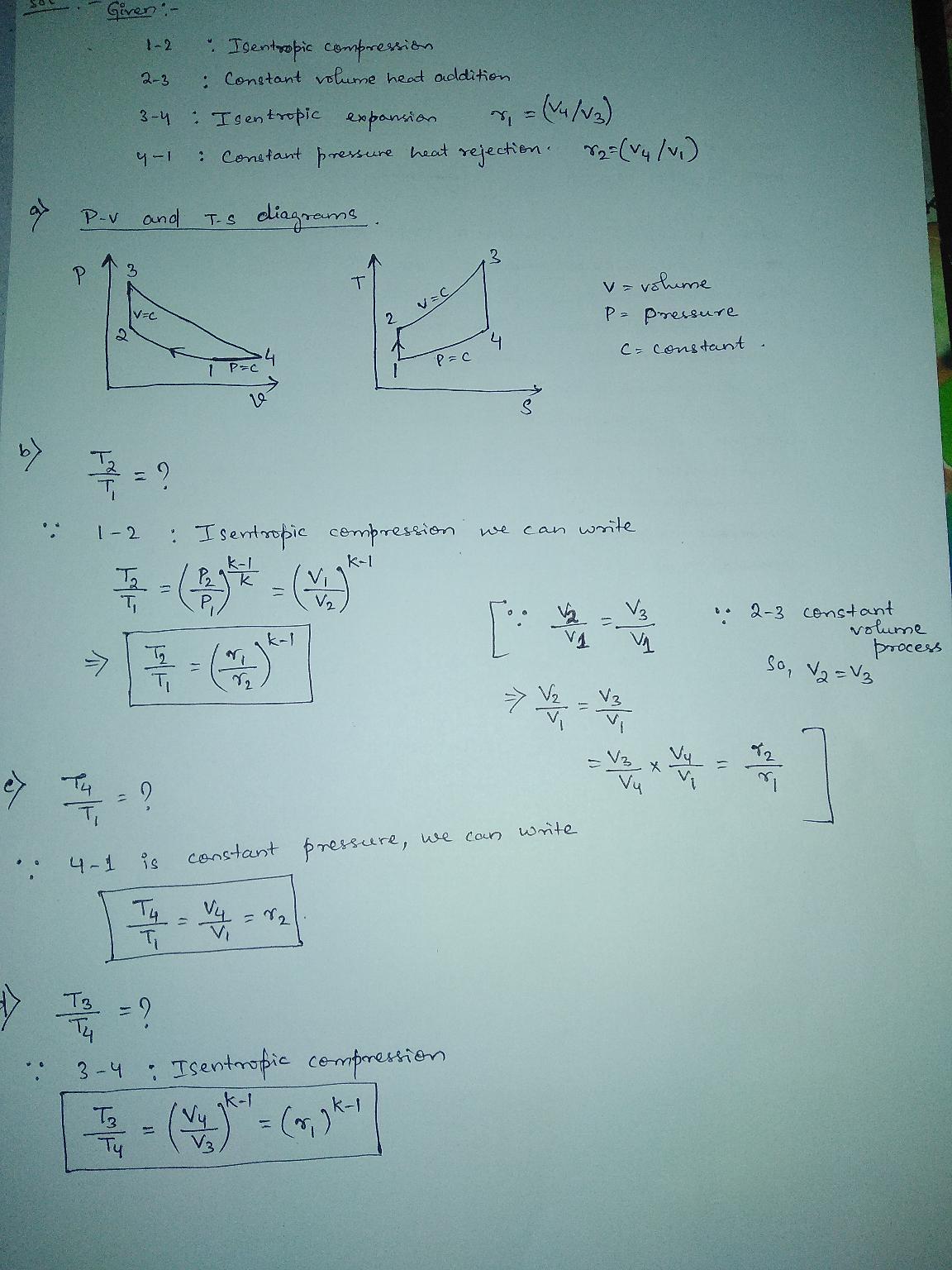

1 answer:
