The mechanical properties of some metals may be improved by incorporating fine particles of their oxides. If the moduli of elast

icity of a hypothetical metal and its oxide are, respectively, 55 GPa and 430 GPa, what is the upper-bound modulus of elasticity value for a composite that has a composition of 31 vol% of oxide particles

1 answer:

mezya [45]2 years ago

3 0

Answer:

171.2 GPa

Explanation:

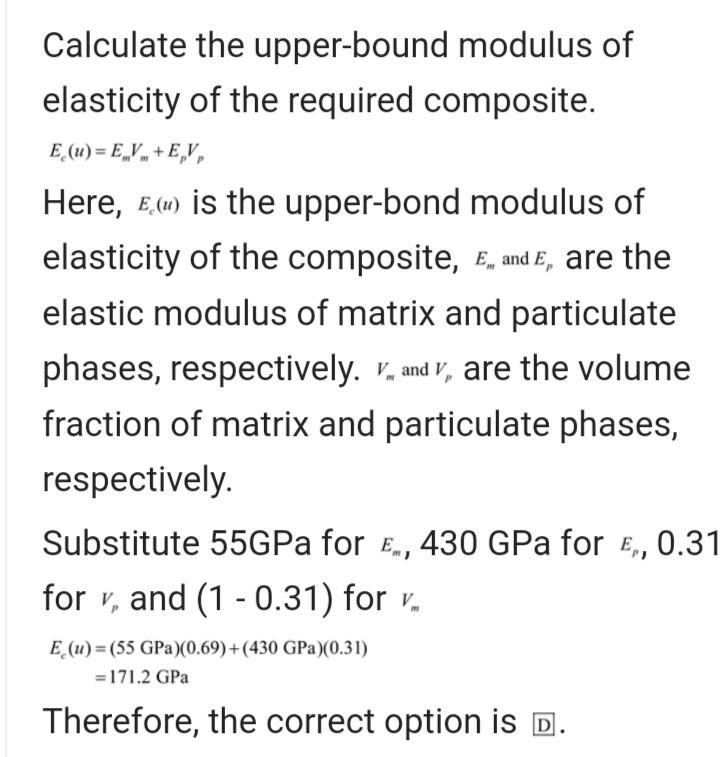

I explained every step in the attached file, please kindly go through it.

But the answer is 171.2 GPa
