PolarNik [594]
2 years ago
11

8. When supplying heated air for a building, one often chooses to mix in some fresh outside air with air that has been heated fr

om the building as it passes through the furnace. An insulated mixing chamber is used to combine two streams of air to be used in a building. One stream of air, brought from the outside, enters at 2 kg/s, at a pressure of 120 kPa, and a temperature of 5oC. The second stream of air, coming from the building’s furnace, has a mass flow rate of 8 kg/s, a pressure of 120 kPa, and a temperature of 35oC. The combined stream is then delivered to the warm space at 120 kPa. Determine the rate of entropy generation for this mixing chamber.

Engineering
1 answer:
Afina-wow [57]2 years ago
5 0

Answer:

Check the explanation

Explanation:

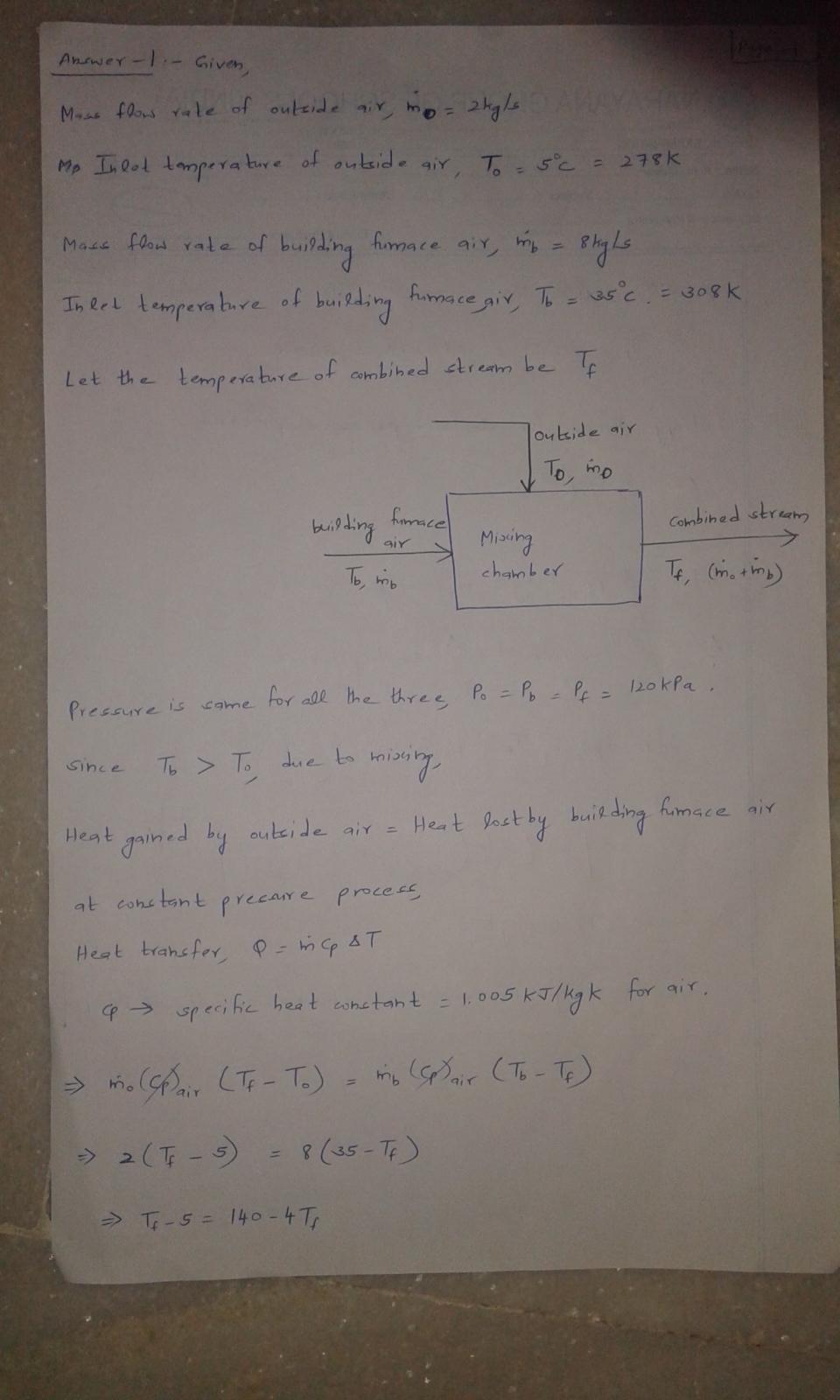

Kindly check the attached images below to see the step by step explanation to the question above.

You might be interested in
An electrical utility delivers 6.25E10 kWh of power to its customers in a year. What is the average power required during the ye
Sindrei [870]

Answer:

The overall Utility delivered to customers in a year 'U' = 6.25 X 10¹⁰Kwh

However, the average power P, required for a year, t  = ? Kw

Expressing their relationship, we will have

             U = P x t

Given t = 1 year = 24 x 365 hours (assume a year operation is 365 days)

          t = 8760 hours

P = \frac{62500000000}{8760}

P = 7134.7Kw

Hence, the average power required during the year is 7,135Kw

Now to calculate the energy used by the power plant in a year (in quads)?

Recall, Efficiency, η = Power Output/Power Input (100)

so, we have

η = P₀/P₁, given

0.45 = \frac{7134.7Kw}{P₁}

P₁ = 15,855Kw

the total energy E₁ used in a year = 15,855x24x365 = 138.89MJoules

So to convert this to quads, Note;

1 quads of energy = 10¹⁵ Joules

The total energy used is 0.000000139 quads

Now to find the cubic feet of natural gas required to generate this power?

Note: 0.29Kwh of Power generated  = 1 cubic feet of natural gas used

Since, the power plant generated = 62500000000Kwh

The cubic feet of natural gas used = \frac{62500000000}{0.29}

Hence, 2.155x10²⁰cubic feet of N.gas was used to generate this much power.

8 0
2 years ago
In which of the following branches of engineering is the practice not restricted?
fgiga [73]

Answer:

a) civil engineering.

Explanation:

Civil engineering is a professional engineering program that deals with the construction, design, and maintenance of all the natural and man-made environments including dams, buildings, railways, and roads.

Civil engineering is the branch of engineering that is the practice not restricted because civil engineer is not restricted to academic profession but practice in designing and construction can make someone a professional civil engineer.

Hence, the correct answer is "a)."

6 0
2 years ago
Read 2 more answers
In a heat-treating process, a 1-kg metal part, initially at 1075 K, is quenched in a closed tank containing 100 kg of water, ini
storchak [24]

Answer:

attached below

Explanation:

8 0
2 years ago
Given an array of words representing your dictionary, you test words to see if it can be made into another word in dictionary. T
katen-ka-za [31]

Answer:

Detailed solution is given below:

8 0
2 years ago
A cylindrical rod of copper (E = 110 GPa, 16 × 106 psi) having a yield strength of 240 MPa (35,000 psi) is to be subjected to a
77julia77 [94]

Answer:

7.65 mm

Explanation:

Stress, \sigma=\frac {F}{A} where F is the force and A is the area

Also, \sigma=E\times \frac {\triangle L}{L}

Where E is Young’s modulus, L is the length and \triangle L is the elongation

Therefore,

\frac {F}{A}= E\times \frac {\triangle L}{L}

Making A the subject of the formula then

A=\frac {FL}{E\triangle L}=\frac {6660\times 380}{110\times 10^{9}\times 0.5}=4.60145\times 10^{-5} m^{2}

Since A=\frac {\pi d^{2}}{4} then

d=\sqrt {\frac {4A}{\pi}}=\sqrt {\frac {4\times 4.60145\times 10^{-5}}{\pi}}= 0.00765425m= 7.654249728 mm\approx 7.65 mm

4 0
2 years ago
