When choosing building-construction materials, what kinds of materials would you choose, all other things being equal?

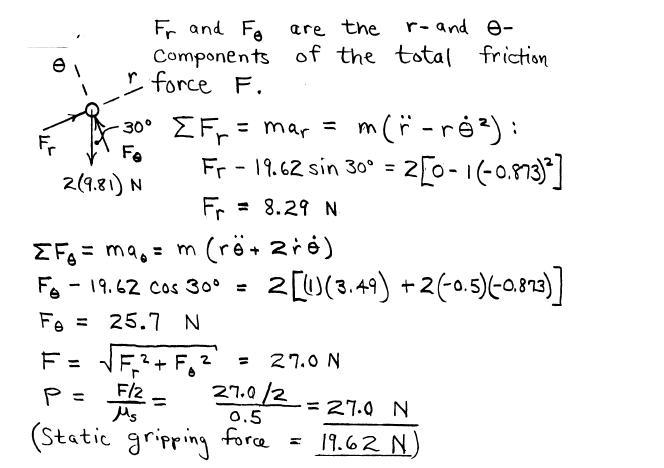

3/63 A 2‐kg sphere S is being moved in a vertical plane by a robotic arm. When the angle θ is 30°, the angular velocity of the a

miss Akunina [59]

Answer:

Ps=19.62N

Explanation:

The detailed explanation of answer is given in attached files.

5 0

2 years ago

Instructions given by traffic police or construction flaggers _____. A. Are sometimes important to follow B. Are usually not imp

Anestetic [448]

Answer:

D. Overrule any other laws and traffic control devices.

Explanation:

Laws and traffic control devices are undoubtedly compulsory to be followed at every point in time to control traffic and other related situations. However, there are cases when certain instructions overrule these laws and traffic control devices. For example, when a traffic police is giving instructions, and though the traffic control devices too (such as traffic lights) are displaying their own preset lights to control some traffic, the instructions from the traffic police take more priority. This is because at that point in time, the instructions from the traffic control devices might not be just applicable or sufficient.

Also, in the case of instructions given by construction flaggers, these instructions have priority over those from controlling devices. This is because during construction traffic controls are redirected from the norms. Therefore, the flaggers such be given more importance.

6 0

2 years ago

4. Two technicians are discussing the evaporative emission monitor. Technician A says that serious monitor faults cause a blinki

snow_lady [41]

Answer:

The correct option is;

Neither Technician A nor B

Explanation:

The evaporative emission monitor or Evaporaive Emission Control System EVAP System monitors enables the Power Control Module of the car to check fuel system leak integrity and the vapor consumption efficiency during engine combustion

It is a requirement of EPA on cars to check the emission of smug forming evaporates from cars

Serious monitor faults can cause the turning on of the check engine lights and the vehicle will not pass OBD II test, but it will not lead to engine shutdown

It runs when the engine is 15 to 85% full and the TP sensor is between 9% and 35%.

Therefore, the correct option is that neither Technician A nor B are correct.

3 0

2 years ago

A pipe of 0.3 m outer diameter at a temperature of 160°C is insulated with a material having a thermal conductivity of k = 0.055

Alekssandra [29.7K]

Answer:

Q=0.95 W/m

Explanation:

Given that

Outer diameter = 0.3 m

Thermal conductivity of material

$K= 0.055(1+2.8\times 10^{-3}T)\frac{W}{mK}$

So the mean conductivity

$K_m=0.055\left ( 1+2.8\times 10^{-3}T_m \right )$

$T_m=\dfrac{160+273+40+273}{2}$

$T_m=373 K$

$K_m=0.055\left ( 1+2.8\times 10^{-3}\times 373 \right )$

$K_m=0.112 \frac{W}{mK}$

So heat conduction through cylinder

$Q=kA\dfrac{\Delta T}{L}$

$Q=0.112\times \pi \times 0.15^2\times 120$

Q=0.95 W/m

4 0

2 years ago

A hydraulic cylinder is to be used to move a workpiece in a manufacturing operation through a distance of 50 mm in 10 s. A force

svetlana [45]

Answer:

The answer to this question is 1273885.3 ∅

Explanation:

The first step is to determine the required hydraulic flow rate liquid if working pressure and if a cylinder with a piston diameter of 100 mm is available.

Given that,

The distance = 50mm

The time t =10 seconds

The force F = 10kN

The piston diameter is = 100mm

The pressure = F/A

10 * 10^3/Δ/Δ

P = 1273885.3503 pa

Then

Power = work/time = Force * distance /time

= 10 * 1000 * 0.050/10

which is =50 watt

Power =∅ΔP

50 = 1273885.3 ∅

5 0

2 years ago
