Ket [755]
2 years ago
7

A copper-constantan thermocouple is to be used to measure temperatures between 0 and 200°C. The e.m.f. at 0°C is 0 mV, at 100°C

it is 4.277 mV and at 200°C it is 9.286 mV. What will be the non-linearity error at 100°C as a percentage of the full range output if a linear relationship is assumed between e.m.f. and temperature over the full range?

Engineering
1 answer:
Helga [31]2 years ago
5 0

Answer:

3.941%

Explanation:

You might be interested in
NEEDS TO BE IN PYTHON:ISBN-13 is a new standard for indentifying books. It uses 13 digits d1d2d3d4d5d6d7d8d910d11d12d13 . The la
kondor19780726 [428]

Answer:

Follows are the code to this question:

n=input("Enter the first 12 digits of an ISBN-13 as a string:")#defining a varaible isbn for input value

if len(n)!=12: #use if block to check input value is equal to 12 digits

   print("incorrect input") #print error message

elif n.isdigit()==False: #use else if that check input is equal to digit

   print("incorrect input") #print error message

else:# defining else block

   s=0 #defining integer vaiable s to 0

   for i in range(12):#defining for loop to calculate sum of digit

       if i%2==0: #defining if block to check even value

           s=s+int(n[i])#add even numbers in s vaiable

       else: #use else block for odd numbers

           s=s+int(n[i])*3 #multiply the digit with 3 and add into s vaiable

   s=s%10#calculate the remainder value

   s=10-s#subtract the remainder value with 10 and hold its value

   if s==10: #use if to check s variable value equal to 10

       s=0#use s variable to assign the value 0

   n=n+s.__str__() #u

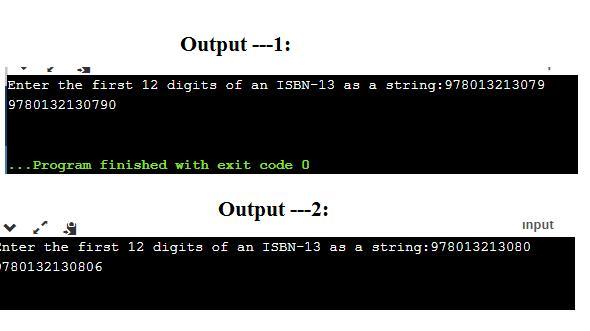

Output:

please find attached file.

Explanation:In the above Python code, the "n" variable is used for input the number into the string format uses multiple conditional statements for a check input value, which can be defined as follows:

  • In if block, it checks the length isn't equal to 12, if the condition true, it will print an error message.
  • In the else, if the block it checks input value does not digit, if the condition is true, it will print an error message.
  • In the else block, it uses the for loop, in which it calculates the even and odd number sum, and in the odd number, we multiply by 3 then add into s variable.
  • In this, the s variable is used to calculate its remainder and subtract from the value and use the if block to check, its value is not equal to 10 if it's true, it adds 0 into the last of n variable, otherwise, it adds its calculated value.

4 0
2 years ago
A closed system consisting of 4 lb of a gas undergoes a process during which the relation between pressure and volume is pVn 5 c
gayaneshka [121]

Answer:

V1=5<u>ft3</u>

<u>V2=2ft3</u>

n=1.377

Explanation:

PART A:

the volume of each state is obtained by multiplying the mass by the specific volume in each state

V=volume

v=especific volume

m=mass

V=mv

state 1

V1=m.v1

V1=4lb*1.25ft3/lb=5<u>ft3</u>

state 2

V2=m.v2

V2=4lb*0.5ft3/lb=  <u> 2ft3</u>

PART B:

since the PV ^ n is constant we can equal the equations of state 1 and state 2

P1V1^n=P2V2^n

P1/P2=(V2/V1)^n

ln(P1/P2)=n . ln (V2/V1)

n=ln(P1/P2)/ ln (V2/V1)

n=ln(15/53)/ ln (2/5)

n=1.377

3 0
2 years ago
The rigid bar CDE is attached to a pin support at E and rests on the 30 mm diameter brass cylinder BD. A 22 mm diameter steel ro
Leno4ka [110]

Answer:

stress = 38.84 MPa

Explanation:

S_{D} = \alpha _{brass} * (delta T) *(L_{BD} )\\= (18.8 * 10^(-6) )*(30)*(0.3)\\= 0.0001692 m\\\\E_{BD} = stress / strain\\stress = E_{BD} * S_{D}\\stress = (200 *10^9) * (0.0001692)\\stress = 33.84 MPa

3 0
2 years ago
Q4. What happen when a steady potential is connected across the end points of the [3] conductor? Illustrate with an example.
den301095 [7]

Answer: Flow of current and the resistance to the flow of the current.

Explanation:

When a steady potential is connected across the end points of the conductor, there will be a of current through the conductor and the internal resistance in the conductor will tend to resist the flow of the current

A good example is a simple circuit comprises of a battery, wires and a touch bulb.

When the battery is connected to the two ends of the torch bulb, current flow through and the bulb is lit up.

4 0
2 years ago
A thin-walled tube with a diameter of 12 mm and length of 25 m is used to carry exhaust gas from a smoke stack to the laboratory
nlexa [21]

Answer:

(a)  h₁   = 204.45 W/m²k

(b) h₀ = 46.80 W/m².k

(c) T = T = 15.50°C

Explanation:

Given Data;

Diameter = 12mm

Length = 25 m

Entry temperature = 200°C

Flow rate = 0.006 kg/s

velocity = 2.5 m/s.

Step 1: Calculating the mean temperature;

(200 + 15)/2

Mean temperature = 107.5°C = 380.5 K

The properties of air at mean temperature 380.5 K are given as:

v = 24.2689*10⁻⁶m²/s

a = 35.024*10⁻⁶m²/s

μ    = 221.6 *10⁻⁷Ns/m²

k = 0.0323 W/m.k

Cp = 1012 J/kg.k

Step 2: Calculating the prantl number using the formula;

Pr = v/a

   = 24.2689*10⁻⁶/ 35.024*10⁻⁶

   = 0.693

Step3: Calculating the reynolds number using the formula;

Re = 4m/πDμ

    = 4 *0.006/π*12*10⁻³ * 221.6 *10⁻⁷

    = 0.024/8.355*10⁻⁷

    = 28725

Since Re is greater than 2000, the flow is turbulent. Nu becomes;

Nu = 0.023Re^0.8 *Pr^0.3

Nu = 0.023 * 28725^0.8 * 0.693^0.3

     = 75.955

(a) calculating the heat transfer coefficient:

Nu = hD/k

h = Nu *k/D

  = (75.955 * 0.0323)/12*10^-3

h   = 204.45 W/m²k

(b)

Properties of air at 15°C

v = 14.82 *10⁻⁶m²/s

k = 0.0253 W/m.k

a = 20.873 *10⁻⁶m²/s

Pr(outside) = v/a

                  = 14.82 *10⁻⁶/20.873 *10⁻⁶

                 = 0.71

Re(outside) = VD/v

                   = 2.5 * 12*10⁻³/14.82*10⁻⁶

                    =2024.29

Using Zakauskus correlation,

Nu = 0.26Re^0.6 * Pr^0.37 * (Pr(outside)/Pr)^1/4

    = 0.26 * 2024.29^0.6 *  0.71^0.37 * (0.71/0.693)^1/4

    = 22.199

Nu = h₀D/k

h₀ = Nu*k/D

     = 22.199* 0.0253/12*10⁻³

h₀ = 46.80 W/m².k

 (c)

Calculating the overall heat transfer coefficient using the formula;

1/U =1/h₁ +1/h₀

1/U = 1/204.45 + 1/46.80

1/U = 0.026259

U = 1/0.026259

U = 38.08

Calculating the temperature of the exhaust using the formula;

T -T₀/T₁-T₀ = e^-[uπDL/Cpm]

T - 15/200-15 = e^-[38.08*π*12*10⁻³*25/1012*0.006]

T - 15/185 = e^-5.911

T -15 = 185 * 0.002709

T = 15+0.50

T = 15.50°C

6 0
2 years ago
