You are asked to measure nondestructively the yield strength and tensile strength of an annealed 65–45–12 cast iron structural m

ember. Fortunately, a small hardness indentation in this structural design will not impair its future usefulness, which is a working definition of nondestructive. A 10-mm-diameter tungsten carbide sphere creates a 4.26-mm-diameter impression under a 3000-kg load. What are the yield and tensile strengths?

1 answer:

anzhelika [568]2 years ago

5 0

Answer:

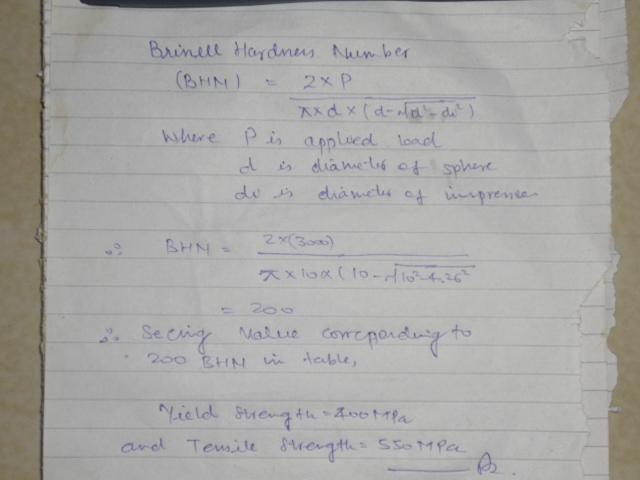

The solution and complete explanation for the above question and mentioned conditions is given below in the attached document.i hope my explanation will help you in understanding this particular question.

Explanation:
