A gun drilling operation is used to drill a 9/64-in diameter hole to a certain depth. It takes 4.5 minutes to perform the drilli

ng operation using high-pressure fluid delivery of coolant to the drill point. The current spindle speed = 4000 rev/min, and feed = 0.0017 in/rev. In order to improve the surface finish in the hole, it has been decided to increase the speed by 20% and decrease the feed by 25%.
How long will it take to perform the operation at the new cutting conditions?

1 answer:

hichkok12 [17]2 years ago

5 0

Answer:

fr = Nf = 4000 rev/min (0.0017 in/rev) = 6.8 in/min Hole depth

d = 4.5 min (6.8 in/min) = 30.6 in New speed v = 4000(1 + 0.20) = 4800 rev/min

New feed f = 0.0017(1- 0.25) = 0.001275 in/min

New feed rate fr = 4800(0.001275) = 6.12 in/min

New drilling time Tm = 30.6/6.12 in/min = 5.0 min

Explanation:

You might be interested in

At a certain college, 30% of the students major in engineering, 20% play club sports, and 10% both major in engineering and play

hodyreva [135]

At a certain college, 30% of the students major in engineering, 20% play club sports, and 10% both major in engineering and play club sports. A student is selected at random.

a) What is the probability that the student is majoring in engineering?

b) What is the probability that the student plays club sports?

c) Given that the student is majoring in engineering, what is the probability that the

student plays club sports?

d) Given that the student plays club sports, what is the probability that the student is

majoring in engineering?

e) Given that the student is majoring in engineering, what is the probability that the

student does not play club sports?

f) Given that the student plays club sports, what is the probability that the student is not

majoring in engineering?

Answer and Explanation

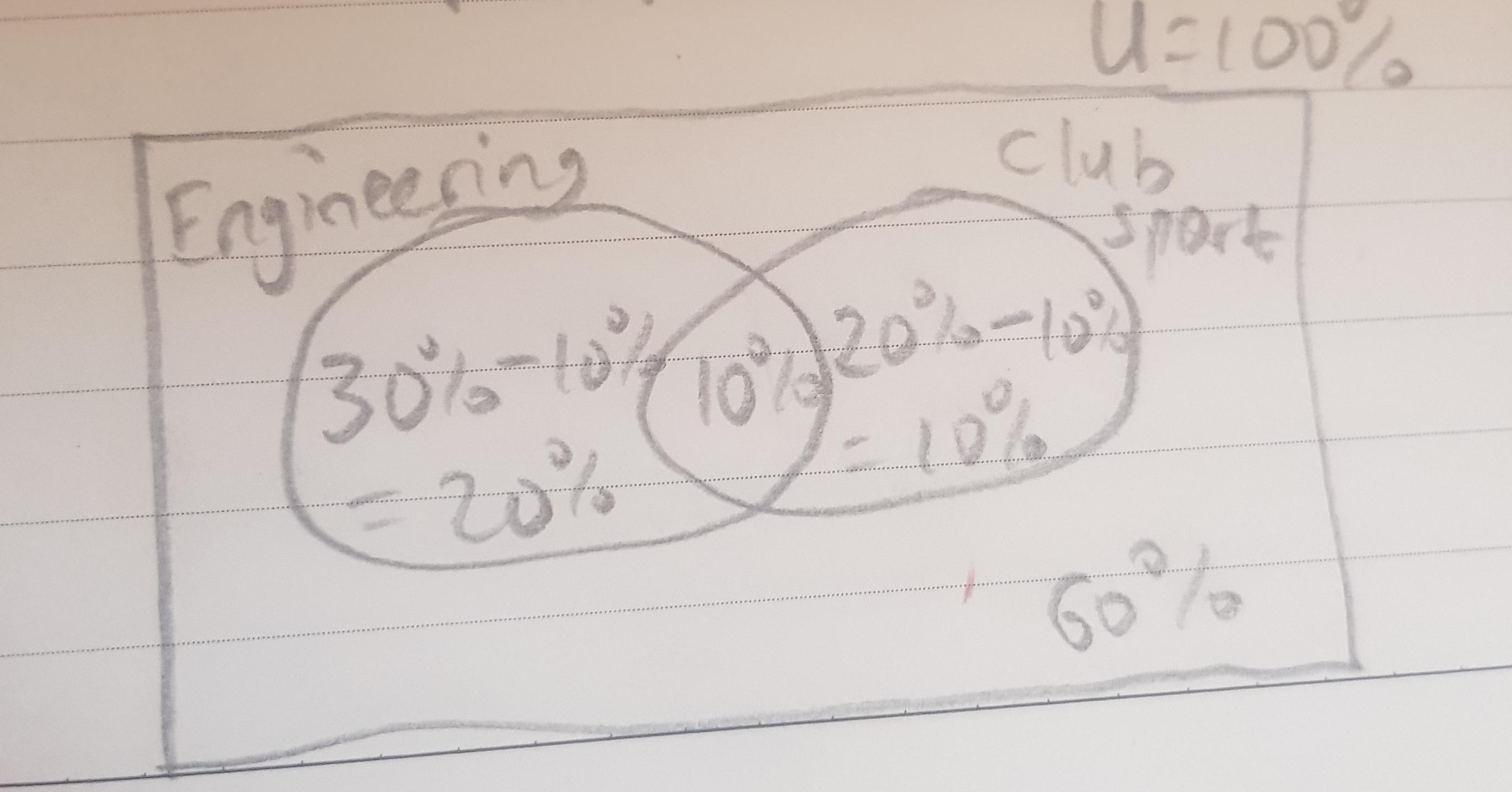

The venn diagram for the question is in the attachment.
