Interlocking stacked material is done by _____.

Engineering

2 answers:

VikaD [51]2 years ago

7 0

Answer:

B. Placing the objects at right angles

Explanation:

Workers are required to follow the safety guidelines when handling stacking materials. A material can fall or collapse causing injuries or death. According to OSHA guidelines, worker must do the following but not limited to:

when using hands, stacks should not exceed 16 feet high and 20 feet high if using a forklift
remove nails from used lumber before stacking
stacks should be stable and self-stable
material stored in racks should face away from main aisles

Dmitry [639]2 years ago

3 0

Answer:

Explanation:

You might be interested in

The purification of hydrogen gas is possible by diffusion through a thin palladium sheet. Calculate the number of kilograms of h

diamong [38]

Answer:

$M=0.0411 kg/h or 4.1*10^{-2} kg/h$

Explanation:

We have to combine the following formula to find the mass yield:

$M=JAt$

$M=-DAt(ΔC/Δx)$

The diffusion coefficient : $D=6.0*10^{-8} m/s^{2}$

The area : $A=0.25 m^{2}$

Time : $t=3600 s/h$

ΔC: $(0.64-3.0)kg/m^{3}$

Δx: $3.1*10^{-3}m$

Now substitute the values

$M=-DAt(ΔC/Δx)$

$M=-(6.0*10^{-8} m/s^{2})(0.25 m^{2})(3600 s/h)[(0.64-3.0kg/m^{3})(3.1*10^{-3}m)]$

$M=0.0411 kg/h or 4.1*10^{-2} kg/h$

8 0

2 years ago

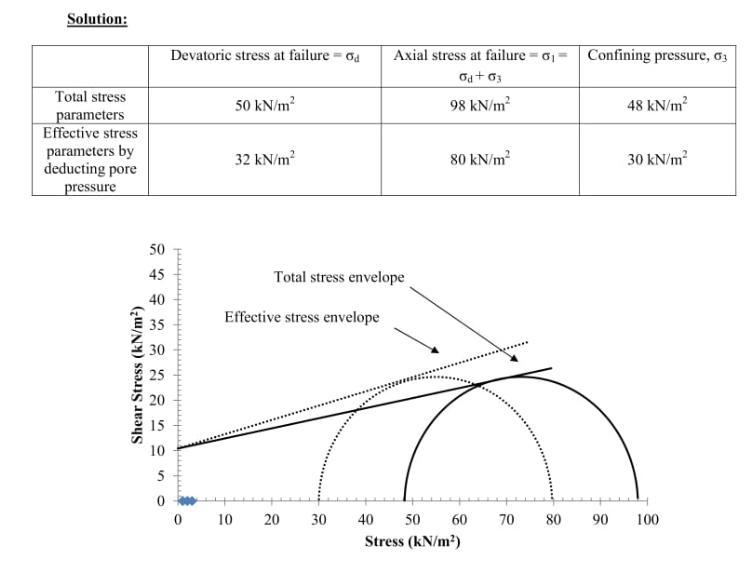

A sample of normally consolidated clay was subjected to a CU triaxial compression test that was carried out until the specimen f

QveST [7]

Answer:

Check the explanation

Explanation:

Given

1) CU traixial compression test

2) Devatoric stress at failure = бd = 50 kN/ $m^2$

3) Confining pressure at failure = бd = 48 kN/ $m^2$

4) Pore pressure at failure = u = 18 kN/ $m^2$

5) Unconfined compression stress = q = 20 kN/ $m^2$

6) Undrained cohesion = q/2 = 20 kN/ $m^2$

To find:

1) Effective and total stress strength failure envelope

Kindly check the attached image below .

7 0

2 years ago

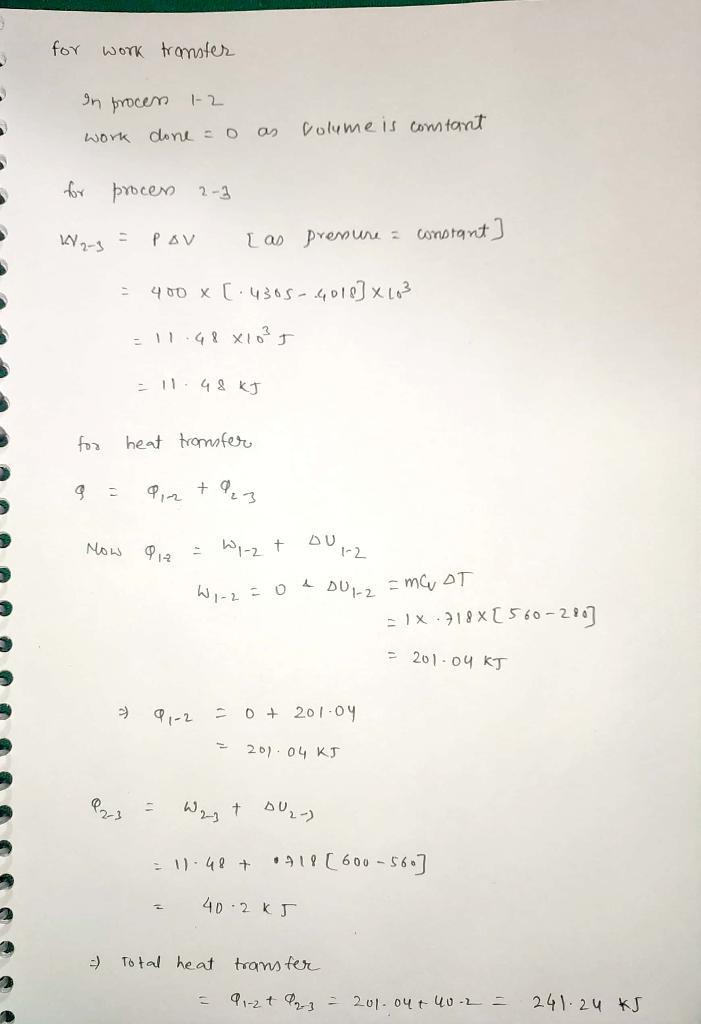

Air in tankBis at 200 kPa, 280 K and mass 1 kg. It is connected to an empty piston/cylinder with a float pressure of 400 kPa sim

Romashka [77]

Answer:

Explanation: see attachment

7 0

2 years ago

Identify the four engineering economy symbols and their values from the following problem statement. Use a question mark with th

Vilka [71]

Answer:

The company will have $311,424 in its investment set-aside account.

Explanation:

To determine the amount of money that the company will have after 7 years with an interest rate of 11% per year, we must calculate the price to start with an increase of 11%, and then repeat the operation until reaching seven years:

Year 0: 150,000

Year 1: 150,000 x 1.11 = 166,500

Year 2: 166,000 x 1.11 = 184,815

Year 3: 184,815 x 1.11 = 205,144.65

Year 4: 205,144.65 x 1.11 = 227,710.56

Year 5: 227,710.56 x 1.11 = 252,758.72

Year 6: 252,758.72 x 1.11 = 280,562.18

Year 7: 280,562.18 x 1.11 = 311,424

3 0

2 years ago

A fatigue test was conducted in which the mean stress was 46.2 MPa and the stress amplitude was 219 MPa.

sleet_krkn [62]

Answer:

a)σ₁ = 265.2 MPa

b)σ₂ = -172.8 MPa

c) $Stress\ ratio =-0.65$

d)Range = 438 MPa

Explanation:

Given that

Mean stress ,σm= 46.2 MPa

Stress amplitude ,σa= 219 MPa

Lets take

Maximum stress level = σ₁

Minimum stress level =σ₂

The mean stress given as

$\sigma_m=\dfrac{\sigma_1+\sigma_2}{2}$

$2\sigma_m={\sigma_1+\sigma_2}$

2 x 46.2 = σ₁ + σ₂

σ₁ + σ₂ = 92.4 MPa --------1

The amplitude stress given as

$\sigma_a=\dfrac{\sigma_1-\sigma_2}{2}$

$2\sigma_a={\sigma_1-\sigma_2}$

2 x 219 = σ₁ - σ₂

σ₁ - σ₂ = 438 MPa --------2

By adding the above equation

2 σ₁ = 530.4

σ₁ = 265.2 MPa

-σ₂ = 438 -265.2 MPa

σ₂ = -172.8 MPa

Stress ratio

$Stress\ ratio =\dfrac{\sigma_{min}}{\sigma_{max}}$

$Stress\ ratio =\dfrac{-172.8}{265.2}$

$Stress\ ratio =-0.65$

Range = 265.2 MPa - ( -172.8 MPa)

Range = 438 MPa
