The uniform beam is supported by two rods AB and CD that have crosssectional areas of 10 mm2 and 15 mm2 , respectively. Determin

e the intensity w of the distributed load so that the average normal stress in each rod does not exceed 300 kPa.

1 answer:

ddd [48]2 years ago

6 0

Answer:

w=2.25

Explanation:

It is necessary to determine the maximum w so that the normal stress in the AB and CD rods does not exceed the permitted normal stress.

The surface of the cross-section of the stapes was determined:

A_ab= 10 mm^2

A-cd= 15 mm^2

The maximum load is determined from the condition that the normal stresses is not higher than the permitted normal stress σ_allow.

σ_ab = F_ab/A_ab $\leq$ σ_allow

σ_cd = F_cd/A_cd $\leq$ σ_allow

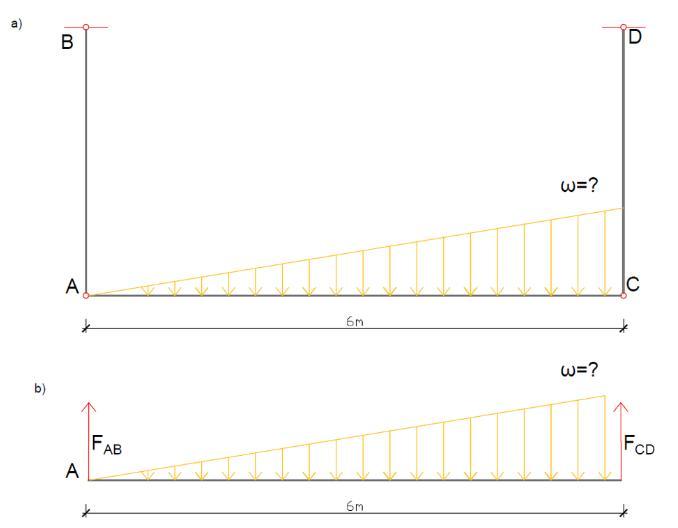

In the next step we will determine the static size: Picture b).

We apply the conditions of equilibrium:

∑F_x=0

∑F_y=0

∑M=0

∑M_a=0 ==> -w*6*0.5*6*0.75*F_cd*6 =0

==> F_cd = 2*w*k*N

∑F_y=0 ==> F_cd+F_ab - 6*w*0.5 ==>2*w+F_ab -6*w*0.5 =0

==> F_ab = w*k*N

Now we determine the load w

<u>Sector AB: </u>

σ_ab = F_ab/A_ab $\leq$ σ_allow=300 KPa

= w/10*10^-6 $\leq$ σ_allow=300 KPa

w_ab = 3*10^-3 kN/m

<u>Sector CD: </u>

σ_cd = F_cd/A_cd $\leq$ σ_allow=300 KPa

= 2*w/15*10^-6 $\leq$ σ_allow=300 KPa

w_cd = 2.25*10^-3 kN/m

w=min{w_ab;w_cd} ==> w=min{3*10^-3;2.25*10^-3}

==> w=2.25 * 10^-3 kN/m

<u>The solution is: </u>

w=2.25 N/m

note:

find the attached graph

You might be interested in

A cylindrical drum (2 ft. dia ,3 ft height) is filled with a fluid whose density is 40 lb/ft^3. Determine (a. the total volume o

Ksivusya [100]

Answer:

a) $V=9.42\ ft^3$

b)Mass in lb = 376.8 lb

Mass in slug = 11.71 slug

c) $v=0.025\ ft^3/lb$

d) $w=1276 \ lb/ft.s^2$

Explanation:

Given that

d= 2 ft

r= 1 ft

h= 3 ft

Density

$\rho = 40\ lb/ft^3$

a)

We know that volume V given as

$V=\pi r^2 h$

$V=\pi \times 1^2\times 3$

$V=9.42\ ft^3$

b)

Mass = Density x volume

$mass =40\times 9.42\ lb$

mass= 376.8 lb

We know that

1 lb = 0.031 slug

So 376.8 lb= 11.71 slug

Mass in lb = 376.8 lb

Mass in slug = 11.71 slug

c)

we know that specific volume(v) is the inverse of density.

$v=\dfrac{1}{\rho}\ ft^3/lb$

$v=\dfrac{1}{40}\ ft^3/lb$

$v=0.025\ ft^3/lb$

d)

Specific weight(w) is the product of density and the gravity(g).

w= ρ X g

w = 40 x 31.9

$w=1276 \ lb/ft.s^2$

8 0

2 years ago

The roof of a building frame is subjected to the wind loading shown. Determine (a) the equivalent force-couple system at D, (b)

bulgar [2K]

Answer:

quivalent force-couple system at D, (b) the resultant of the loading and its line of action.Explanation:

5 0

2 years ago

Same rule: If both players spend the same number of coins, player 2 gains 1 coin. Off-by-one rule: If the players do not spend t

Galina-37 [17]

Answer:

Check the explanation

Explanation:

1 -

public int getPlayer2Move(int round)

{

int result = 0;

//If round is divided by 3

if(round%3 == 0) {

result= 3;

}

//if round is not divided by 3 and is divided by 2

else if(round%3 != 0 && round%2 == 0) {

result = 2;

}

//if round is not divided by 3 or 2

else {

result = 1;

}

return result;

}

2-

public void playGame()

{

//Initializing player 1 coins

int player1Coins = startingCoins;

//Initializing player 2 coins

int player2Coins = startingCoins;

for ( int round = 1 ; round <= maxRounds ; round++) {

//if the player 1 or player 2 coins are less than 3

if(player1Coins < 3 || player2Coins < 3) {

break;

}

//The number of coins player 1 spends

int player1Spends = getPlayer1Move();

//The number of coins player 2 spends

int player2Spends = getPlayer2Move(round);

//Remaining coins of player 1

player1Coins -= player1Spends;

//Remaining coins of player 2

player2Coins -= player2Spends;

//If player 2 spends the same number of coins as player 2 spends

if ( player1Spends == player2Spends) {

player2Coins += 1;

continue;

}

//positive difference between the number of coins spent by the two players

int difference = Math.abs(player1Spends - player2Spends) ;

//if difference is 1

if( difference == 1) {

player2Coins += 1;

continue;

}

//If difference is 2

if(difference == 2) {

player1Coins += 2;

continue;

}

}

// At the end of the game

//If player 1 coins is equal to player two coins

if(player1Coins == player2Coins) {

System.out.println("tie game");

}

//If player 1 coins are greater than player 2 coins

else if(player1Coins > player2Coins) {

System.out.println("player 1 wins");

}

//If player 2 coins is grater than player 2 coins

else if(player1Coins < player2Coins) {

System.out.println("player 2 wins");

}

}

3 0

2 years ago

Consider air entering a heated duct at P1 = 1 atm and T1 = 288 K. Ignore the effect of friction. Calculate the amount of heat pe

Ne4ueva [31]

Answer:

The solution for the given problem is done below.

Explanation:

M1 = 2.0

$\frac{p1}{p*}$ = 0.3636

$\frac{T1}{T*}$ = 0.5289

$\frac{T01}{T0*}$ = 0.7934

Isentropic Flow Chart: M1 = 2.0 , $\frac{T01}{T1}$ = 1.8

T1 = $\frac{1}{0.7934}$ (1.8)(288K) = 653.4 K.

In order to choke the flow at the exit (M2=1), the above T0* must be stagnation temperature at the exit.

At the inlet,

T02= $\frac{T02}{T1}T1$ = (1.8)(288K) = 518.4 K.

Q= Cp(T02-T01) = $\frac{1.4(287 J / (Kg.K)}{1.4-1}(653.4-518.4)K$ = 135.7* $10^{3}$ J/Kg.

5 0

2 years ago

Read 2 more answers

Air enters a compressor steadily at the ambient conditions of 100 kPa and 22°C and leaves at 800 kPa. Heat is lost from the comp

telo118 [61]

Answer:

a) 358.8K

b) 181.1 kJ/kg.K

c) 0.0068 kJ/kg.K

Explanation:

Given:

P1 = 100kPa

P2= 800kPa

T1 = 22°C = 22+273 = 295K

q_out = 120 kJ/kg

∆S_air = 0.40 kJ/kg.k

T2 =??

a) Using the formula for change in entropy of air, we have:

∆S_air = $c_p In \frac{T_2}{T_1} - Rln \frac{P_2}{P_1}$

Let's take gas constant, Cp= 1.005 kJ/kg.K and R = 0.287 kJ/kg.K

Solving, we have:

[/tex] -0.40= (1.005)ln\frac{T_2}{295} ln\frac{800}{100}[/tex]

$-0.40= 1.005(ln T_2 - 5.68697)- 0.5968$

Solving for T2 we have:

$T_2 = 5.8828$

Taking the exponential on the equation (both sides), we have:

[/tex] T_2 = e^5^.^8^8^2^8 = 358.8K[/tex]

b) Work input to compressor:

$w_in = c_p(T_2 - T_1)+q_out$

$w_in = 1.005(358.8 - 295)+120$

= 184.1 kJ/kg

c) Entropy genered during this process, we use the expression;

Egen = ∆Eair + ∆Es

Where; Egen = generated entropy

∆Eair = Entropy change of air in compressor

∆Es = Entropy change in surrounding.

We need to first find ∆Es, since it is unknown.

Therefore ∆Es = $\frac{q_out}{T_1}$

$\frac{120kJ/kg.k}{295K}$

∆Es = 0.4068kJ/kg.k

Hence, entropy generated, Egen will be calculated as:

= -0.40 kJ/kg.K + 0.40608kJ/kg.K

= 0.0068kJ/kg.k

3 0

2 years ago
