MissTica
2 years ago
14

The asymmetric roof truss is of the type used when a near normal angle of incidence of sunlight onto the south-facing surface AB

C is desirable for solar energy purposes. The five vertical loads represent the effect of the weights of the truss and supported roofing materials. The 400-N load represents the effect of wind pressure. Determine the equivalent force-couple system at A. The couple is positive if counterclockwise, negative if clockwise. Also, compute the x-intercept of the line of action of the system resultant treated as a single force R.

Engineering
1 answer:
marysya [2.9K]2 years ago
6 0

Answer:

Check the explanation

Explanation:

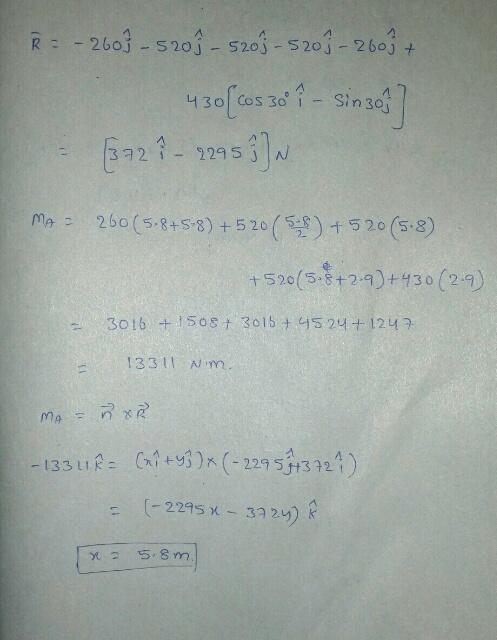

Kindly check the attached image below to see the step by step explanation to the question above.

You might be interested in
Two kilograms of oxygen fills the cylinder of a piston-cylinder assembly. The initial volume and pressure are 2 m3 and 1 bar, re
valentinak56 [21]

Answer: Heat transfer (Q) is 521 kJ.

Explanation: In the piston-cilinder assembly, we can suppose that the oxygen act as an ideal gas, so, it can be used the General Gas Equation:

PV=\frac{m}{M}RT, where:

P is pressure;

V is volume;

m is mass;

M is molar mass;

R is a constant: R = 8.314.10^{-5} m³bar.K⁻¹.mol⁻¹;

T is temperature;

Using this equation, find the intial temperature:

PV = \frac{m}{M}RT

1.2 = \frac{2}{16}.8.314.10^{-5}.T

T = 1.924.10^{5} K

To determine the final temperature, use Combined Gas Law:

\frac{P_{i} . V_{i} }{T_{i} } = \frac{P.V }{T}, in which, the left side of the equality is related to the initial values and the right side, to the final values.

As pressure is constant:

\frac{V_{i} }{T_{i} } =\frac{V}{T}

T = \frac{V.T_{i} }{V_{i} }

T = \frac{4.1.924.10^{-5} }{2}

T = 3.85.10^{5} K

With the temperatures, calculate the heat transfer of the process:

Q = m.k.ΔT, where:

k is heat constant

ΔT = T - T_{i}

Q = m.k.ΔT

Q = 2.1.35.(3.85 - 1.92).10^{5}

Q = 521 kJ

The heat transfer in the process is 521 kJ.

6 0
2 years ago
Read 2 more answers
Write multiple if statements: If carYear is before 1967, print "Probably has few safety features." (without quotes). If after 19
Free_Kalibri [48]

Answer:

The solution code is written in Python 3.

  1. carYear = 1995
  2. if(carYear < 1967):
  3.    print("Probably has few safety features.\n")
  4. if(carYear > 1970):
  5.    print("Probably has head rests. \n")
  6. if(carYear > 1991):
  7.    print("Probably has electronic stability control.\n")
  8. if(carYear > 2002):
  9.    print("Probably has airbags. \n")

Explanation:

Firstly, create a variable, <em>carYear</em> to hold the value of year of the car make. (Line 1)

Next, create multiple if statements as required by the question (Line 3-13). The operator "<" denotes "smaller" and therefore <em>carYear < 1967</em> means any year before 1967. On another hand, the operator ">" denotes "bigger" and therefore <em>carYear > 1970 </em>means any year after 1970.

The print statement in each of the if statements is done using the Python built-in function <em>print()</em>. The "\n" is an escape sequence that create a new line at the end of each printed phrase.

5 0
2 years ago
The pressure drop across a valve through which air flows is expected to be 10 kPa. If this differential were applied to the two
ozzi

Answer:hit that soulja boy

Explanation:

6 0
2 years ago
Michelle is the general manager of a power plant. This morning, she will meet with city officials to discuss environmental issue
Irina-Kira [14]

Answer:

interpersonal.

Explanation:

Out of all the activities performed by Michelle, three activities involves the interpersonal skills.

1. Meeting with city officials

2. Meeting with section managers

3. Handling the complaint filed by an employee

All these activities involves interpersonal skills. Hence, we can say that she had spent her most of the day by using the interpersonal skills.

6 0
2 years ago
If you see rough patches, loose gravel, or potholes on the road, you should ______.l
Black_prince [1.1K]
Avoid them because they can cause you to lose traction.
4 0
2 years ago
