A single phase, 50-KVA, 2400-240-volt, 60 Hz distribution transformer has the following parameters: •
1 answer:
Answer:
B) voltage at the sending end of the feeder = 2483.66 v
Explanation:

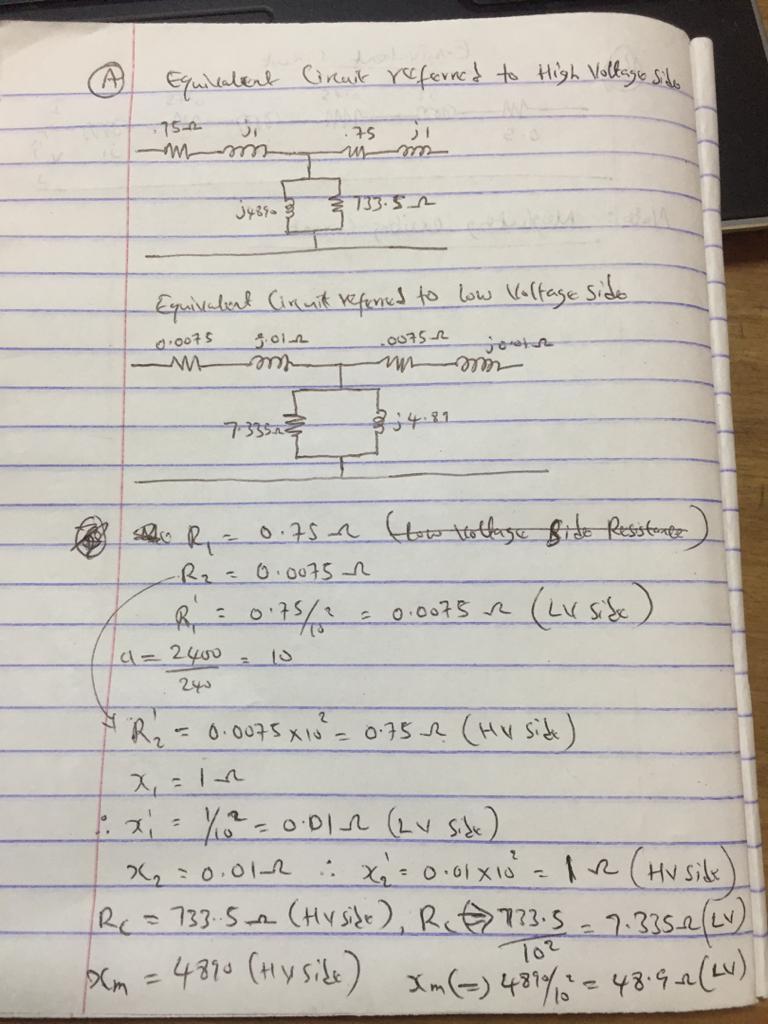

attached below is the the equivalent circuits and the remaining solution for option A
B) voltage = 2400 v
I = = 20.83 A
calculate voltage at sending end ( Vs )
Vs = 2400 + 20.83 ∠ -cos^-1 (0.8) ( 0.75*2 + 0.5 + j 2 + j2 )
hence Vs = 2483.66 ∠ 0.961
therefore voltage at the sending end = 2483.66 v
