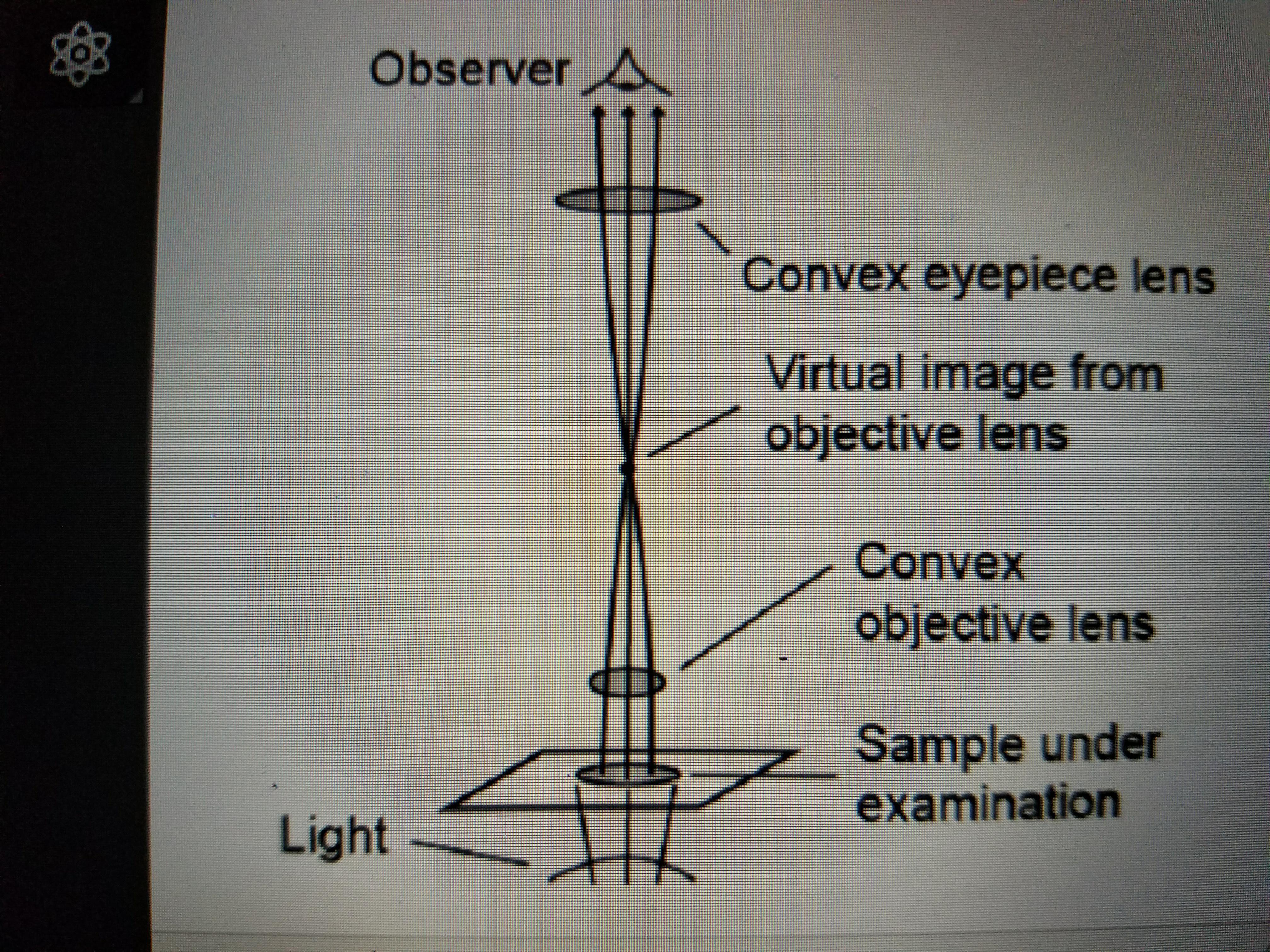

Makori drew the diagram below to show how a light microscope works.

Physics

1 answer:

Kamila [148]2 years ago

3 0

Change the label "Virtual image from objective lens" to "Real image from objective lens." so the answer is A

You might be interested in

There are devices to put in a light socket that control the current through a lightbulb, thereby increasing its lifetime. Which

Dmitrij [34]

Answer: B

Explanation:

Limiting the maximum current through the bulb. This will help in preserving or improving the bulb's lifetime and also this won't have an effect on the brightness of the bulb as brightness is affected by the average value. Although brightness is a factor of current, reducing the maximum current won't have any bearing on the average current the bulb is getting.

4 0

2 years ago

Determine the force P required to maintain the 200-kg engine in the position for which θ = 30°. The diameter of the pulley at B

gregori [183]

Answer:

The force P required is 1759.22 N

Explanation:

The missing diagram is seen in the first image below.

From the second image, we can see the schematic diagram of the engine hanging over the pulley.

To start with determining the value of the angle ∝;

$tan \ \alpha = \dfrac{CD}{BD}$

where;

BD = AB-AD

Then;

$tan \ \alpha = \dfrac{CD}{AB-AD}$

$\alpha = tan^{-1} \bigg(\dfrac{CD}{AB-AD} \bigg )$

replacing their respective values, where;

CD = 2 sin 30° m, AB = 2m and AD = 2 cos 30° m

$\alpha = tan^{-1} \bigg(\dfrac{2 \ sin \ 30^0}{2-2 \ cos \ 30^0} \bigg )$

$\alpha = tan^{-1} \bigg(\dfrac{1}{2-1.732} \bigg )$

$\alpha = tan^{-1} \bigg(\dfrac{1}{0.268} \bigg )$

$\alpha = tan^{-1} \bigg(3.73\bigg )$

$\alpha \simeq 75^0$

From the third diagram attached below:

The tension occurring in the thread BC is equal to force P

$T_{BC} = P$

Using the force equilibrium expression along the horizontal direction.

$\sum F_x = 0\\\\ -T_{AC} \ cos \ 30^0 + Pcos \alpha = 0$

replacing the value of $\alpha \simeq 75^0$

$-T_{AC} \ cos 30^0 + P cos 75^0 = 0$

$P \ cos \ 75^0 = T_{AC} \ cos \ 30^0$

$P =\dfrac{ T_{AC} \ cos \ 30^0}{\ cos \ 75^0} \ \ \ - - - (1)$

Along the vertical direction, the force equilibrium equation can be expressed as:

$\sum F_y =0$

$-W + P \ sin \alpha + T_{AC} \ sin \ 30^0 = 0$

$W = P \ sin \ \alpha + T_{AC} \ sin \ 30^0$

replacing $\alpha \simeq 75^0$ and $P =\dfrac{ T_{AC} \ cos \ 30^0}{\ cos \ 75^0}$

$W =\dfrac{T_{AC} \ cos \ 30^0}{cos \ 75^0}\times sin \ 75^0 + T_{AC} \ sin \ 30^0$

Also, replacing W for (200 × 9.81) N

$200 \times 9.81 =\dfrac{T_{AC} \ cos \ 30^0}{cos \ 75^0}\times sin \ 75^0 + T_{AC} \ sin \ 30^0$

$200 \times 9.81 = T_{AC} \ cos \ 30^0 \ tan \ 75^0 + T_{AC} \ sin \ 30^0$

$1962= T_{AC} \ ( cos \ 30^0 \ tan \ 75^0 + \ sin \ 30^0)$

$1962= T_{AC} \ (0.8660\times 3.732 + 0.5)$

$1962= T_{AC} \ (3.231912 + 0.5)$

$1962= T_{AC} \ (3.731912)$

$T_{AC} = \dfrac{1962}{ \ (3.731912)}$

$T_{AC} = 525.736 \ N$

From $P =\dfrac{ T_{AC} \ cos \ 30^0}{\ cos \ 75^0}$

$P =\dfrac{ 525.736 \ cos \ 30^0}{\ cos \ 75^0}$

$P =\dfrac{ 525.736 \times0.866}{0.2588}$

P = 1759.22 N

Thus, the force P required is 1759.22 N

6 0

1 year ago

Traffic officials indicate, it takes longer to ______ when you drive fast.

nignag [31]

The answer in the blank is that it is difficult to accelerate at decelerate the vehicle when it is on a fast speed because having a fast speed makes it difficult to adjust the meter as well as if you try to decelerate the vehicle, it could burn out the tires and engine as it is in the fast speed, in accelerating it, it could also be complicated because it would only make the car faster enough that you may no longer control of how to stop it.

7 0

2 years ago

Read 2 more answers

Determine the cutting force f exerted on the rod s in terms of the forces p applied to the handles of the heavy-duty cutter.

Alexus [3.1K]

If you use the next formula with the data given in the exercise you are asking:
Ey[3.4] - F[1.7] = 0
Ey = F/2
and after that what you need to do is sum the moments of the handle about D to zero asumming it is a positive moment and we proceed like this
Ey[1.5sin19] – P[21 – 1.5sin19] = 0
(F/2)[1.5sin19] = P[21 – 1.5sin19]
F = 2P[21 – 1.5sin19] / [1.5sin19]
F = 84P

5 0

2 years ago

Read 2 more answers

Liam throws a water balloon horizontally at 8.2 m/s out of a window 18 m from the ground.

Alecsey [184]

Time taken by the water balloon to reach the bottom will be given as

$h = \frac{1}{2} gt^2$
