Answer:
M = 281.25 lb*ft
Explanation:
Given
W<em>man</em> = 150 lb
Weight per linear foot of the boat: q = 3 lb/ft
L = 15.00 m
M<em>max</em> = ?
Initially, we have to calculate the Buoyant Force per linear foot (due to the water exerts a uniform distributed load upward on the bottom of the boat):
∑ Fy = 0 (+↑) ⇒ q'*L - W - q*L = 0
⇒ q' = (W + q*L) / L
⇒ q' = (150 lb + 3 lb/ft*15 ft) / 15 ft
⇒ q' = 13 lb/ft (+↑)

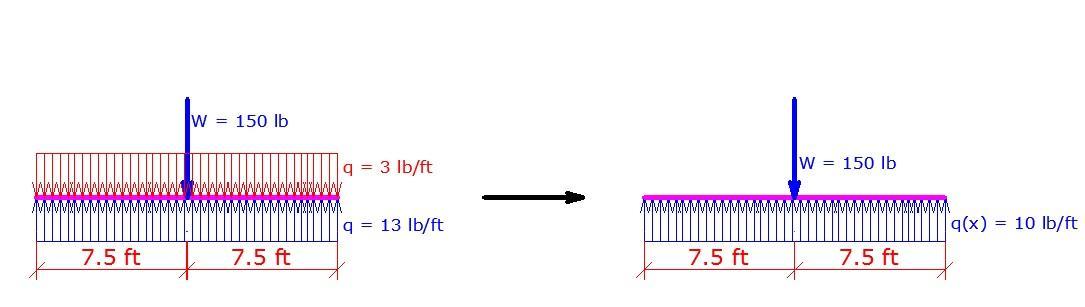

The free body diagram of the boat is shown in the pic.
Then, we apply the following equation
q(x) = (13 - 3) = 10 (+↑)
V(x) = ∫q(x) dx = ∫10 dx = 10x (0 ≤ x ≤ 7.5)
M(x) = ∫10x dx = 5x² (0 ≤ x ≤ 7.5)
The maximum internal bending moment occurs when x = 7.5 ft
then
M(7.5) = 5(7.5)² = 281.25 lb*ft
Answer:
Your question is lacking some information attached is the missing part and the solution
A) AB = AD = BD = 0, BC = LC
AC =
B) AB = AD = BC = BD = 0
AC =
Explanation:
A) Forces in all members due to the load L in position A
assuming that BD goes slack from an inspection of Joint B
AB = 0 and BC = LC from Joint D, AD = 0 and CD = 4L/3 C
B) steps to arrive to the answer is attached below
AB = AD = BC = BD = 0
AC =
Answer:
a. 4.279 MPa
b. 3.198 MPa to 4.279 MPa
c. 0.939 MPa
d. Below 3.198 MPa
Explanation:
From the given parameters
M = 1.75 MPa
M at 1.6 MPa gives A/A* = 1.2502
M at 1.8 MPa gives A/A* = 1.4390
Therefore, by interpolation, we have M = 1.75 MPa gives A
However, we shall use M = 1.75 MPa and A
Similarly,
P/P₀ = 0.1878
a) Where the nozzle is choked at the throat there is subsonic flow in the following diverging part of the nozzle. From tables, we have
A/A* = 1.387. by interpolation M
Therefore P = P₀ × P
Which shows that the nozzle is choked for back pressures lower than 4.279 MPa
b) Where there is a normal shock at the exit of the nozzle, we have;
M₁ = 1.75 MPa, P₁ = 0.1878 × 5 = 0.939 MPa
Where the normal shock is at M₁ = 1.75 MPa, P₂/P₁ = 3.406
Where the normal shock occurs at the nozzle exit, we have
Where the shock occurs t the section prior to the nozzle exit from the throat, the back pressure was derived as = 4.279 MPa
Therefore the back pressure value ranges from 3.198 MPa to 4.279 MPa
c) At M = 1.75 MPa and P
d) Where the back pressure is less than 3.198 MPa according to isentropic flow relations supersonic flow will exist at the exit plane
