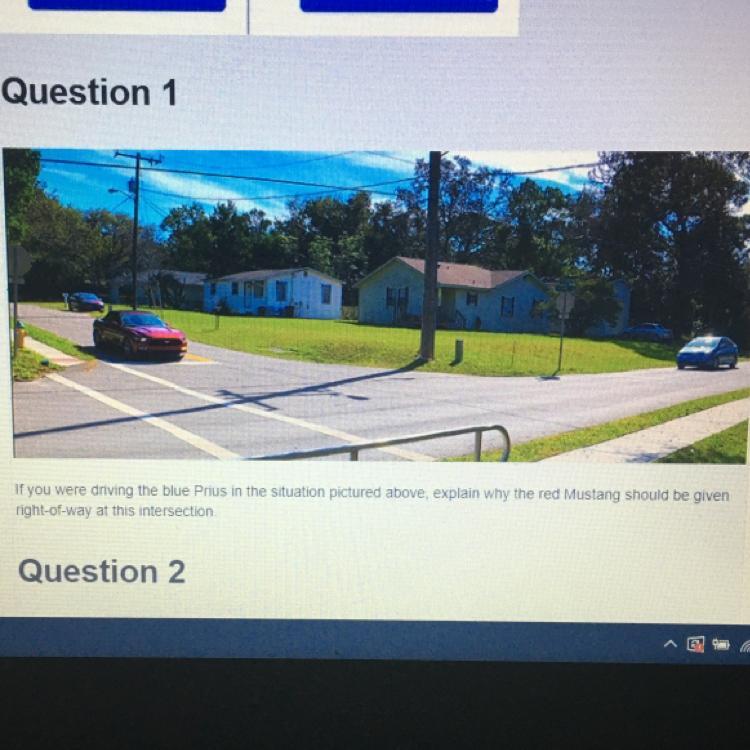

If you were driving the blue Prius in the situation pictured above, explain why the red Mustang should be giver right-of -way at

this intersection .

1 answer:

Scilla [17]2 years ago

6 0

Because the red mustang is at the stop sign first. It’s a 4 way intersection

You might be interested in

In a heat-treating process, a 1-kg metal part, initially at 1075 K, is quenched in a closed tank containing 100 kg of water, ini

storchak [24]

Answer:

attached below

Explanation:

8 0

2 years ago

Dust, dirt, or metal chips can pose a potential ____ injury risk in a shop.

pantera1 [17]

Answer:

Eye.

Explanation:

Dust, dirt, and metal chips are most unpleasant to get in your eyes. Just experience it and you'll know what I mean.

;)

3 0

2 years ago

To unload a bound stack of plywood from a truck, the driver first tilts the bed of the truck and then accelerates from rest. Kno

azamat

Answer:

a) The truck must have an acceleration of at least 3.92 * cos(θ)^2 for the stack to start sliding.

b) a = 2.94 * cos(θ)^2 + 0.32 * L * cos(θ)

Explanation:

The stack of plywood has a certain mass. The weight will depend on that mass.

w = m * g

There will be a normal reaction between the stack and the bed of the truck, this will be:

nr = -m * g * cos(θ)

Being θ the tilt angle of the bed.

The static friction force will be:

ffs = - m * g * cos(θ) * fJK

The dynamic friction force will be:

ffd = - m * g * cos(θ) * fik

These forces would produce accelerations

affs = -g * cos(θ) * fJK

affd = -g * cos(θ) * fik

affs = -9.81 * cos(θ) * 0.4 = -3.92 * cos(θ)

affd = -9.81 * cos(θ) * 0.3 = -2.94 * cos(θ)

These accelerations oppose to movement and must be overcome by another acceleration to move the stack.

The acceleration of the truck is horizontal, the horizontal component of these friction forces is:

affs = -3.92 * cos(θ)^2

affd = -2.94 * cos(θ)^2

The truck must have an acceleration of at least 3.92 * cos(θ)^2 for the stack to start sliding.

Assuming the bed has a lenght L.

The horizontal movement will be over a distance cos(θ) * L because L is tilted.

Movement under constant acceleration:

X(t) = X0 + V0 * t + 1/2 * a * t^2

In this case X0 = 0, V0 = 0, and a will be the sum of the friction force minus the acceleration of the truck.

If we set the frame of reference with the origin on the initial position of the stack and the positive X axis pointing backwards, the acceleration of the truck will now be negative and the dynamic friction acceleration positive.

L * cos(θ) = 1/2 * (2.94 * cos(θ)^2 - a) * 0.4^2

2.94 * cos(θ)^2 - a = 2 * 0.16 * L * cos(θ)

a = 2.94 * cos(θ)^2 + 0.32 * L * cos(θ)

6 0

2 years ago

Methane and oxygen react in the presence of a catalyst to form formaldehyde. In a parallel reaction, methane is oxidized to carb

Nezavi [6.7K]

Answer:

$y_{CH_4}^2=\frac{5mol/s}{100mol/s}=0.05\\y_{O_2}^2=\frac{3mol/s}{100mol/s}=0.03\\y_{H_2O}^2=\frac{47mol/s}{100mol/s}=0.47\\y_{HCHO}^2=\frac{43mol/s}{100mol/s}=0.43\\y_{CO_2}^2=\frac{2mol/s}{100mol/s}=0.02$

Explanation:

Hello,

a. On the attached document, you can see a brief scheme of the process. Thus, to know the degrees of freedom, we state the following unknowns:

- $\xi_1$ and $\xi_2$ : extent of the reactions (2).

- $F_{O_2}^2$ , $F_{CH_4}^2$ , $F_{H_2O}^2$ , $F_{HCHO}^2$ and $F_{CO_2}^2$ : Molar flows at the second stream (5).

On the other hand, we've got the following equations:

- $F_{O_2}^2=50mol/s-\xi_1-2\xi_2$ : oxygen mole balance.

- $F_{CH_4}^2=50mol/s-\xi_1-\xi_2$ : methane mole balance.

- $F_{H_2O}^2=\xi_1+2\xi_2$ : water mole balance.

- $F_{HCHO}^2=\xi_1$ : formaldehyde mole balance.

- $F_{CO_2}^2=\xi_2$ : carbon dioxide mole balance.

Thus, the degrees of freedom are:

$DF=7unknowns-5equations=2$

It means that we need two additional equations or data to solve the problem.

b. Here, the two missing data are given. For the fractional conversion of methane, we define:

$0.900=\frac{\xi_1+\xi_2}{50mol/s}$

And for the fractional yield of formaldehyde we can set it in terms of methane as the reagents are equimolar:

$0.860=\frac{F_{HCHO}^2}{50mol/s}$

In such a way, one realizes that the output formaldehyde's molar flow is:

$F_{HCHO}^2=0.860*50mol/s=43mol/s$

Which is equal to the first reaction extent $\xi_1$ , therefore, one computes the second one from the fractional conversion of methane as:

$\xi_2=0.900*50mol/s-\xi_1\\\xi_2=0.900*50mol/s-43mol/s\\\xi_2=2mol/s$

Now, one computes the rest of the output flows via:

- $F_{O_2}^2=50mol/s-43mol/s-2*2mol/s=3mol/s$

- $F_{CH_4}^2=50mol/s-43mol/s-2mol/s=5mol/s$

- $F_{H_2O}^2=43mol/s+2*2mol/s=47mol/s$

- $F_{HCHO}^2=43mol/s$

- $F_{CO_2}^2=2mol/s$

The total output molar flow is:

$F_{O_2}+F_{CH_4}+F_{H_2O}+F_{HCHO}+F_{CO_2}=100mol/s$

Therefore the output stream composition turns out into:

$y_{CH_4}^2=\frac{5mol/s}{100mol/s}=0.05\\y_{O_2}^2=\frac{3mol/s}{100mol/s}=0.03\\y_{H_2O}^2=\frac{47mol/s}{100mol/s}=0.47\\y_{HCHO}^2=\frac{43mol/s}{100mol/s}=0.43\\y_{CO_2}^2=\frac{2mol/s}{100mol/s}=0.02$

Best regards.

7 0

2 years ago

Determine the deflection at the center of the beam. Express your answer in terms of some or all of the variables LLL, EEE, III,

Rom4ik [11]

Answer:

See explanations for step by step procedures to get answer.

Explanation:

Given that;

Determine the deflection at the center of the beam. Express your answer in terms of some or all of the variables LLL, EEE, III, and M0M0M_0. Enter positive value if the deflection is upward and negative value if the deflection is downward.

4 0
