A 0.91 m diameter corrugated metal pipe culvert (n = 0.024) has a length of 90 m and a slope of 0.0067. The entrance has a squar

e edge in a headwall. At the design discharge of 1.2 m3 /s, the tailwater is 0.45 m above the outlet invert. Determine the head on the culvert at the design discharge. Repeat the calculation for head if the culvert is concrete.

1 answer:

NikAS [45]2 years ago

3 0

Answer:

HW=1.71m

Explanation:

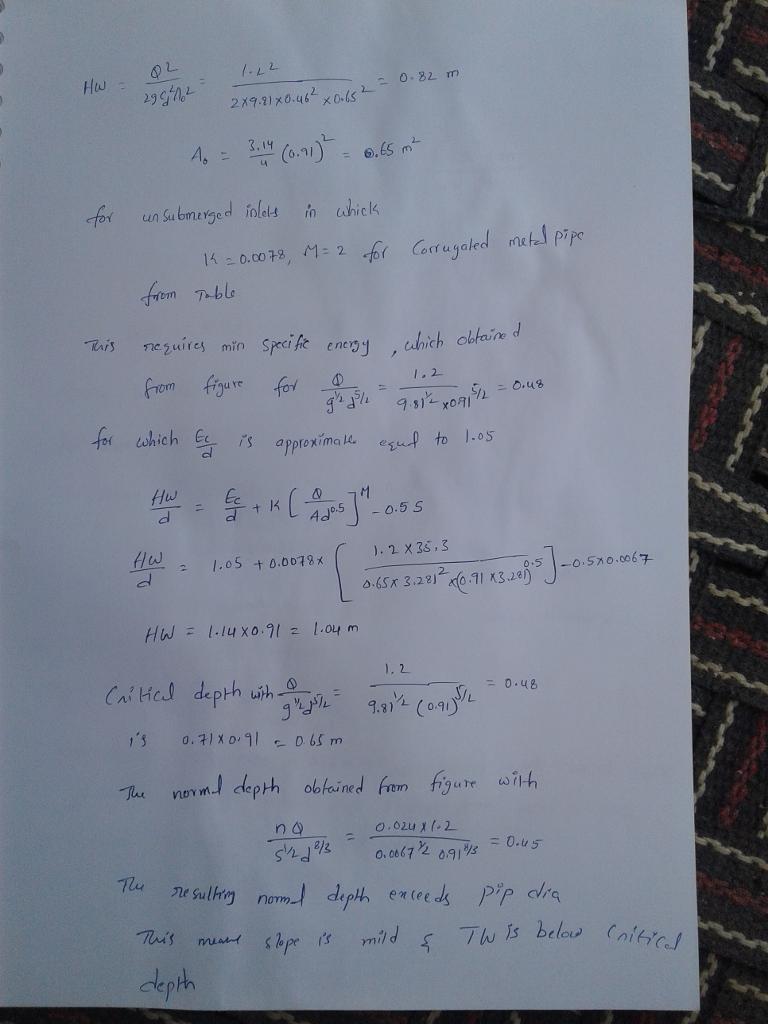

Please kindly check attachment for the step by step solution of the given problem.

You might be interested in

The air contained in a room loses heat to the surroundings at a rate of 50 kJ/min while work is supplied to the room by computer

Artemon [7]

Answer:

net amount of energy change of the air in the room during a 30-min period = 660KJ

Explanation:

The detailed calculation is as shown in the attached file.

4 0

2 years ago

Read 2 more answers

Annealing is a process by which steel is reheated and then cooled to make it less brittle. Consider the reheat stage for a 100-m

kodGreya [7K]

Complete question is;

Annealing is a process by which steel is reheated and then cooled to make it less brittle. Consider the reheat stage for a 100 mm thick plate (ρ = 7830 kg/m3, Cp = 550 J/kg K, k = 48 W/m K). The plate initially is at 200 °C and is to be heated to a minimum temperature of 550 °C. Heating is effected in a gas-fired furnace where the products of combustion at T∞ = 800 °C maintain a convection heat transfer coefficient of h = 250 W/m.K on both surfaces of the plate. How long should the plate be left in the furnace?

Answer:

860 seconds

Explanation:

We are given;

Initial Temperature; Ti = 200 °C

Minimum Temperature; T_i = 550 °C

T∞ = 800 °C

convection coefficient; h = 250 W/m².K

ρ = 7830 kg/m³

Cp = 550 J/kg K

k = 48 W/m K

Plate thickness = 100mm

Thus,L = 100/2 = 50mm = 0.05 m

Let's find the biot number from the formula;

Bi = hL/K

Bi = (250 × 0.05)/48

Bi = 0.2604

Now, lowest temperature in the slab is given as;

θ_o = (T_o - T∞)/(T_i - T∞)

θ_o = (550 - 800)/(200 - 800)

θ_o = 0.4167

Now, from online tables calculation, we can find the root of the biot number.

Thus, root of the biot number Bi = 0.2604 is;

ζ1 = 0.488 rad

Also, C1 is gotten as 1.0396

Now,formula for thermal diffusivity is;

α = k/ρc

α = 48/(7830 × 550)

α = 1.115 × 10^(-5) m²/s

Also, from online tables, f(ζ1) = 0.401

Thus, we can find the time the plate should the plate be left in the furnace from;

-(ζ1)²(αt/L²) = In 0.401

-(ζ1)²(αt/L²) = -0.9138

t = (-0.9138 × 0.05²)/-(0.488² × 1.115 × 10^(-5))

t ≈ 860 s

8 0

2 years ago

6. You are an electrician working in an industrial plant. You are building a motor control cabinet that contains six motor start

Sveta_85 [38]

Answer:

It's indeed safer to suggest a 150 VA transformer. Following table however is the clarification given.

Explanation:

For 2 motors with 0.1 A, the Power will be:

P = $2\times 120\times 0.1$

= $24 \ W$

For 4 motors with 0.18 A, the Power will be:

P = $4\times 120\times 0.18$

= $86.4 \ W$

As we know, for 6 pilot lamps, the power is "5 W".

So,

The total power will be:

⇒ P = $24+86.4+5$

= $115.4 \ W$

Now,

Consider the power factor to be "0.95"

VA of transformer is:

= $PF\times Power$

= $115.4\times 0.9$

= $109.63 \ VA$

8 0

2 years ago

1. Consider a city of 10 square kilometers. A macro cellular system design divides the city up into square cells of 1 square kil

kakasveta [241]

Answer:

a) $n = 1000\,users$ , b) $\Delta t_{min} = \frac{1}{30}\,h$ , $\Delta t_{max} = \frac{\sqrt{2} }{30}\,h$ , $\Delta t_{mean} = \frac{1 + \sqrt{2} }{60}\,h$ , c) $n = 10000000\,users$ , $\Delta t_{min} = \frac{1}{3000}\,h$ , $\Delta t_{max} = \frac{\sqrt{2} }{3000}\,h$ , $\Delta t_{mean} = \frac{1 + \sqrt{2} }{6000}\,h$

Explanation:

a) The total number of users that can be accomodated in the system is:

$n = \frac{10\,km^{2}}{1\,\frac{km^{2}}{cell} }\cdot (100\,\frac{users}{cell} )$

$n = 1000\,users$

b) The length of the side of each cell is:

$l = \sqrt{1\,km^{2}}$

$l = 1\,km$

Minimum time for traversing a cell is:

$\Delta t_{min} = \frac{l}{v}$

$\Delta t_{min} = \frac{1\,km}{30\,\frac{km}{h} }$

$\Delta t_{min} = \frac{1}{30}\,h$

The maximum time for traversing a cell is:

$\Delta t_{max} = \frac{\sqrt{2}\cdot l }{v}$

$\Delta t_{max} = \frac{\sqrt{2} }{30}\,h$

The approximate time is giving by the average of minimum and maximum times:

$\Delta t_{mean} = \frac{1+\sqrt{2} }{2}\cdot\frac{l}{v}$

$\Delta t_{mean} = \frac{1 + \sqrt{2} }{60}\,h$

c) The total number of users that can be accomodated in the system is:

$n = \frac{10\times 10^{6}\,m^{2}}{100\,m^{2}}\cdot (100\,\frac{users}{cell} )$

$n = 10000000\,users$

The length of each side of the cell is:

$l = \sqrt{100\,m^{2}}$

$l = 10\,m$

Minimum time for traversing a cell is:

$\Delta t_{min} = \frac{l}{v}$

$\Delta t_{min} = \frac{0.01\,km}{30\,\frac{km}{h} }$

$\Delta t_{min} = \frac{1}{3000}\,h$

The maximum time for traversing a cell is:

$\Delta t_{max} = \frac{\sqrt{2}\cdot l }{v}$

$\Delta t_{max} = \frac{\sqrt{2} }{3000}\,h$

The approximate time is giving by the average of minimum and maximum times:

$\Delta t_{mean} = \frac{1+\sqrt{2} }{2}\cdot\frac{l}{v}$

$\Delta t_{mean} = \frac{1 + \sqrt{2} }{6000}\,h$

8 0

2 years ago

___________ is NOT a common injury that an automotive tech may experience at work.

Degger [83]

Answer:The most common injuries were sprains/strains (39% of the total), lacerations (22%), and contusions (15%). Forty-nine percent of the injuries resulted in one or more lost or restricted workdays; 25% resulted in 7 or more lost or restricted workdays.

Explanation:

The most common injuries were sprains/strains (39% of the total), lacerations (22%), and contusions (15%). Forty-nine percent of the injuries resulted in one or more lost or restricted workdays; 25% resulted in 7 or more lost or restricted workdays.

7 0
