4.116 The lid of a roof scuttle weighs 75 lb. It is hinged at corners A and B and maintained in the desired position by a rod CD

Question

2 years ago

9

4.116 The lid of a roof scuttle weighs 75 lb. It is hinged at corners A and B and maintained in the desired position by a rod CD

pivoted at C. A pin at end D of the rod fits into one of several holes drilled in the edge of the lid. For α 5 50°, determine (a) the magnitude of the force exerted by rod CD, (b) the reactions at the hinges. Assume that the hinge at B does not exert any axial thrust. Beer, Ferdinand. Vector Mechanics for Engineers: Statics (p. 219). McGraw-Hill Higher Education. Kindle Edition.

Engineering

1 answer:

babunello [35] · Answer 1 · 2023-08-01T22:22:07+03:00

Answer:

(a) The magnitude of force is 116.6 lb, as exerted by the rod CD

(b) The reaction at A is (-72.7j-38.1k) lb and at B it is (37.5j) lb.

Explanation:

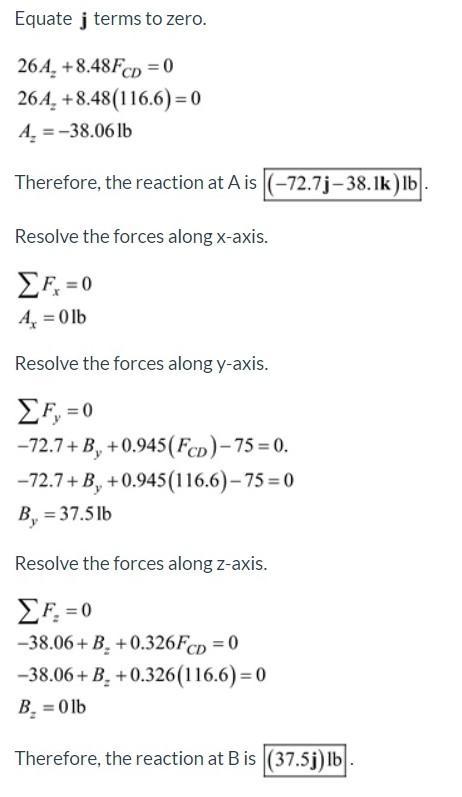

Step by step working is shown in the images attached herewith.

For this given system, the coordinates are the following:

A(0, 0, 0)

B(26, 0, 0)

And the value of angle alpha is 20.95°

Hope that answers the question, have a great day!
