All categories

2 years ago

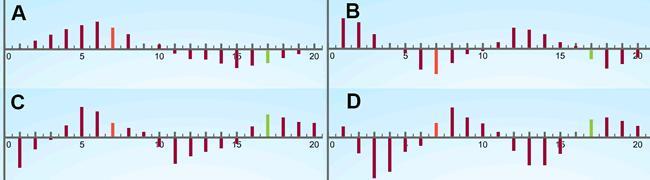

Which acceleration graph corresponds to the pressure graph shown?

Physics

2 answers:

romanna [79]2 years ago

8 0

Answer:

Option B. Graph B

Explanation:

The graph B will be the correct option in this category. In essence, the pressure graph will be a sinusoidal wave. In this respect, the graph will be a wave-like function. This wave-like function will be identical at some point, having rising and falling areas. These areas may represent areas of compression and rarefaction. This is typical with sound waves which travel as pockets of alternating pressures. These compression and relaxations present a propagation in their movements.

rewona [7]2 years ago

3 0

Graph B
Hope it helps!

You might be interested in

Ram has power of 550 watt. What does it mean?

WARRIOR [948]

It means you can do 550 Newton Meters of work every second. Power is the rate of doing work, I hope this helps

4 0

2 years ago

You are given 6 identical resistors, and allowed to combine them in any possible configuration to produce different equivalent r

tatyana61 [14]

Answer:your gay

Explanation:

gay

7 0

2 years ago

Jaiden is writing a report about the structure of the atom. In her report, she says that the atom has three main parts and two s

USPshnik [31]

No because an atom consists of two main parts and three subatomic particles - protons, neutrons, electrons. Each one is smaller than an atom, therefore they are subatomic particles. An atom only requires protons and electrons to be an atom - e.g. Hydrogen has 1 proton and 1 electron. Neutrons do not affect the overall charge of the atom, and only increase the atomic mass.

7 0

2 years ago

Read 2 more answers

A particle moves along a straight line with a velocity in meters per second given by v = 12 - 3t + 8t, where t is in seconds. Wh

elena-14-01-66 [18.8K]

Answer:

Explanation:

Given the velocity of a particle modeled by the equation

v = 13-3t+8t² where t is in seconds

Given t = 0 and position s = +5m

A) To get the position as a function of time, we will integrate the function with respect to t ad shown;

v = 13-3t+8t²

S = ∫13-3t+8t² dt

S = 13t-13t²/2+8t³/3 + C

at t = 0 and S = +5m

5 = 13(0)-13(0)²/2+8(0)³/3+C

5 = 0-0+0+C

C = 5

Substituting c = 5 into the displacement function

S = 13t-13t²/2+8t³/3 + C

S = 13t-13t²/2+8t³/3 + 5

B) acceleration is the change in velocity with respect to time.

a = dv/dt

Given v = 13-3t+8t²

a= dv/dt = -3+16t

a = 16-3t

C) acceleration at t = 6s is derived by plugging in t = 6 into the resulting equations in (B)

a = 16-3t

a = 16-3(6)

a = 16-18

a = -2m/s²

D) net displacement from t = 0 to t = 6s

At t = 0:

S(0) = 13(0)-13(0)²/2+8(0)³/3 + 5

S(0) = 0+5

S(0) = 5m

At t = 6s

S(6) = 13(6)-13(6)²/2+8(6)³/3 + 5

S(6) = 78-234+576+5

S(6) = 425m

Net displacement from t = 0s to t = 6s is s(6)-s(0)

= 425-5

= 420m

E) Total distance travelled D = S(6)+S(0)

= 425+5

= 430m

F) Average velocity = ∆S/∆t

Average velocity = S(6)-S(0)/6-0

Average velocity = 425-5/6

Average velocity = 420/6

Average velocity = 70m/s

4 0

2 years ago

In a supermarket, you place a 22.3-N (around 5 lb) bag of oranges on a scale, and the scale starts to oscillate at 2.7 Hz. What

allsm [11]

Answer:

Force constant, k = 653.3 N/m

Explanation:

It is given that,

Weight of the bag of oranges on a scale, W = 22.3 N

Let m is the mass of the bag of oranges,

$m=\dfrac{W}{g}$

$m=\dfrac{22.3}{9.8}$

m = 2.27 kg

Frequency of the oscillation of the scale, f = 2.7 Hz

We need to find the force constant (spring constant) of the spring of the scale. We know that the formula of the frequency of oscillation of the spring is given by :

$f=\dfrac{1}{2\pi}\sqrt{\dfrac{k}{m}}$

$k=4\pi^2 f^2m$

$k=4\pi^2 \times (2.7)^2\times 2.27$

k = 653.3 N/m

So, the force constant of the spring of the scale is 653.3 N/m. Hence, this is the required solution.

7 0

3 years ago
