lapo4ka [179]
2 years ago
12

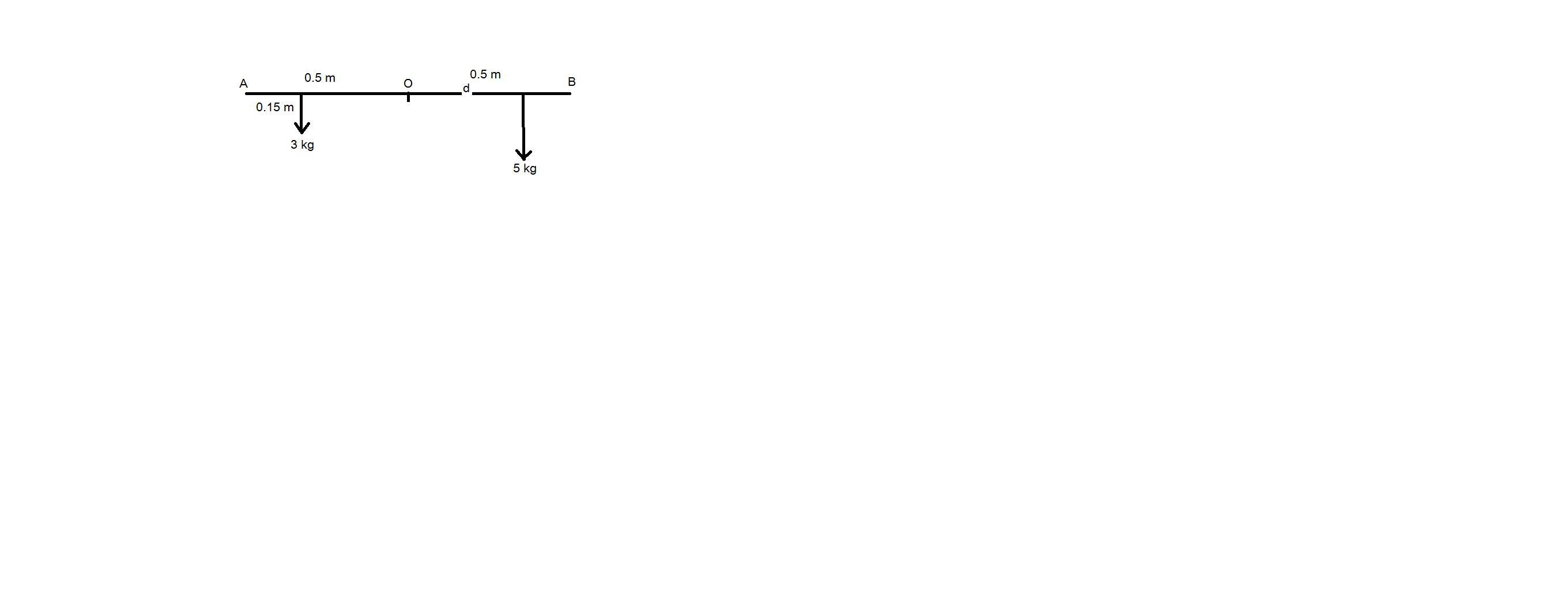

A meter stick is pivoted at the 0.50-m line. A 3.0-kg object is hung from the 0.15-m line. Where should a 5.0-kg object be hung

to achieve equilibrium (the meter stick oriented horizontal and motionless)?

Physics
1 answer:
Lera25 [3.4K]2 years ago
5 0

Answer:

0.71 m

Explanation:

Let the 5 kg is hang at a distance d from the midpoint.

use the concept of moments.

take moments about the mid point.

Anticlockwise moments = clockwise moments

3 x (0.5 - 0.15) = 5 x d

1.05 = 5 d

d = 0.21 m

So, the distance of 5 kg from 0 mark on the stick is 0.5 + 0.21 = 0.71 m

You might be interested in
In the Atwood machine shown below, m1 = 2.00 kg and m2 = 6.05 kg. The masses of the pulley and string are negligible by comparis
Rus_ich [418]
M1 descending
−m1g + T = m1a

m2 ascending
m2g − T = m2a

this gives :
(m2 − m1)g = (m1 + m2)a

a = (m2 − m1)g/m1 + m2
   = (5.60 − 2)/(2 + 5.60) x 9.81
   = = 4.65m/s^2
5 0
2 years ago
Does a fish appear closer or farther from a person wearing swim goggles with an air pocket in front of their eyes than the fish
Sunny_sXe [5.5K]

Answer:

In this case, the index of seawater replacement is 1.33, the index of refraction of air is 1, which is why the angle of replacement is less than the incident angle, so the fish seems to be closer

In the opposite case, when the fish looked at the face of the man, the angle of greater reason why it seems to be further away

Explanation:

This exercise can be analyzed with the law of refraction that establishes that a ray of light when passing from one medium to another with a different index makes it deviate from its path,

      n₁ sin θ₁ = n₂ sin θ₂

where n₁ and n₂ are the refractive indices of the incident and refracted means and the angles are also for these two means.

In this case, the index of seawater replacement is 1.33, the index of refraction of air is 1, which is why the angle of replacement is less than the incident angle, so the fish seems to be closer

1 sin θ₁ = 1.33 sin θ₂

        θ₂ = sin⁻¹ ( 1/1.33 sin θ₁)

In the opposite case, when the fish looked at the face of the man, the angle of greater reason why it seems to be further away

4 0
2 years ago
An inline skater skates on a circular track 120.0 m in diameter at a tangential speed of 9.20 m/s. If the skater’s mass is 68.5
jok3333 [9.3K]

Answer:

The centripetal force acting on the skater is <u>48.32 N.</u>

Explanation:

Given:

Radius of circular track is, R=120.0\ m

Tangential speed of the skater is, v=9.20\ m/s

Mass of the skater is, m=68.5\ kg

We are asked to find the centripetal force acting on the skater.

We know that, when an object is under circular motion, the force acting on the object is directly proportional to the mass and square of tangential speed and inversely proportional to the radius of the circular path. This force is called centripetal force.

Centripetal force acting on the skater is given as:

F_c=\frac{mv^2}{R}

Now, plug in the given values of the known quantities and solve for centripetal force, F_c. This gives,

F_c=\frac{68.5\times (9.20)^2}{120.0}\\\\F_c=\frac{68.5\times 84.64}{120}\\\\F_c=\frac{5797.84}{120}\\\\F_c=48.32\ N

Therefore, the centripetal force acting on the skater is 48.32 N.

3 0
2 years ago
An object of mass m has these three forces acting on it (there is no normal force, "no surface"). F1 = 1 N, F2 = 9 N, and F3 = 5
hammer [34]

Answer:

solved

Explanation:

a) F_net = (F2 - F3)i - F1 j

b) |Fnet| = sqrt( (F2 - F3)^2 + F1^2)

= sqrt( (9- 5)^2 + 1^2)

= 4.123 N

c) θ = tan^-1( (Fnet_y/Fnet_x)

= tan^-1( -1/(9-5) )

= -14.036°

7 0
2 years ago
Suppose you wanted to hold up an electron against the force of gravity by the attraction of a fixed proton some distance above i
SCORPION-xisa [38]

Answer:

The value is  r =  5.077 \  m

Explanation:

From the question we are told that

   The  Coulomb constant is  k =  9.0 *10^{9} \  N\cdot  m^2  /C^2

   The  charge on the electron/proton  is  e =  1.6*10^{-19} \  C

    The  mass of proton m_{proton} =  1.67*10^{-27} \  kg

    The  mass of  electron is  m_{electron } =  9.11 *10^{-31} \ kg

Generally for the electron to be held up by the force gravity

   Then

       Electric force on the electron  =  The  gravitational Force

i.e

            m_{electron} *  g  = \frac{ k *  e^2  }{r^2 }

         \frac{9*10^9 *  (1.60 *10^{-19})^2  }{r^2 }  =     9.11 *10^{-31 }  *  9.81

         r =  \sqrt{25.78}

         r =  5.077  \  m

7 0
2 years ago
