A square weightless frame ABCD with the side a is rotating around the side AB with the constant angular velocity ω1. A uniform d

isk of radius R and mass m is rotating around the frame’s diagonal AC with the constant angular velocity ω2. The center of the disk coincides with the center of the frame. Assuming ω1 = ω2 = ω find
a. The kinetic energy of the system.
b. The magnitude of the torque that needs to be applied to the axis AB to keep it (the axis AB) still.

1 answer:

Zarrin [17]2 years ago

5 0

Answer:

1) KE of the system = 1/2(Iw^2)

2) the torque T that must be applied to keep it still must be equal to the torque of rotation. This is equal to

T = (Iw^2)/2©

Where;

I = moment of inertia of the body

W = angular velocity of the body

© = angle of rotation in rad

Explanation:

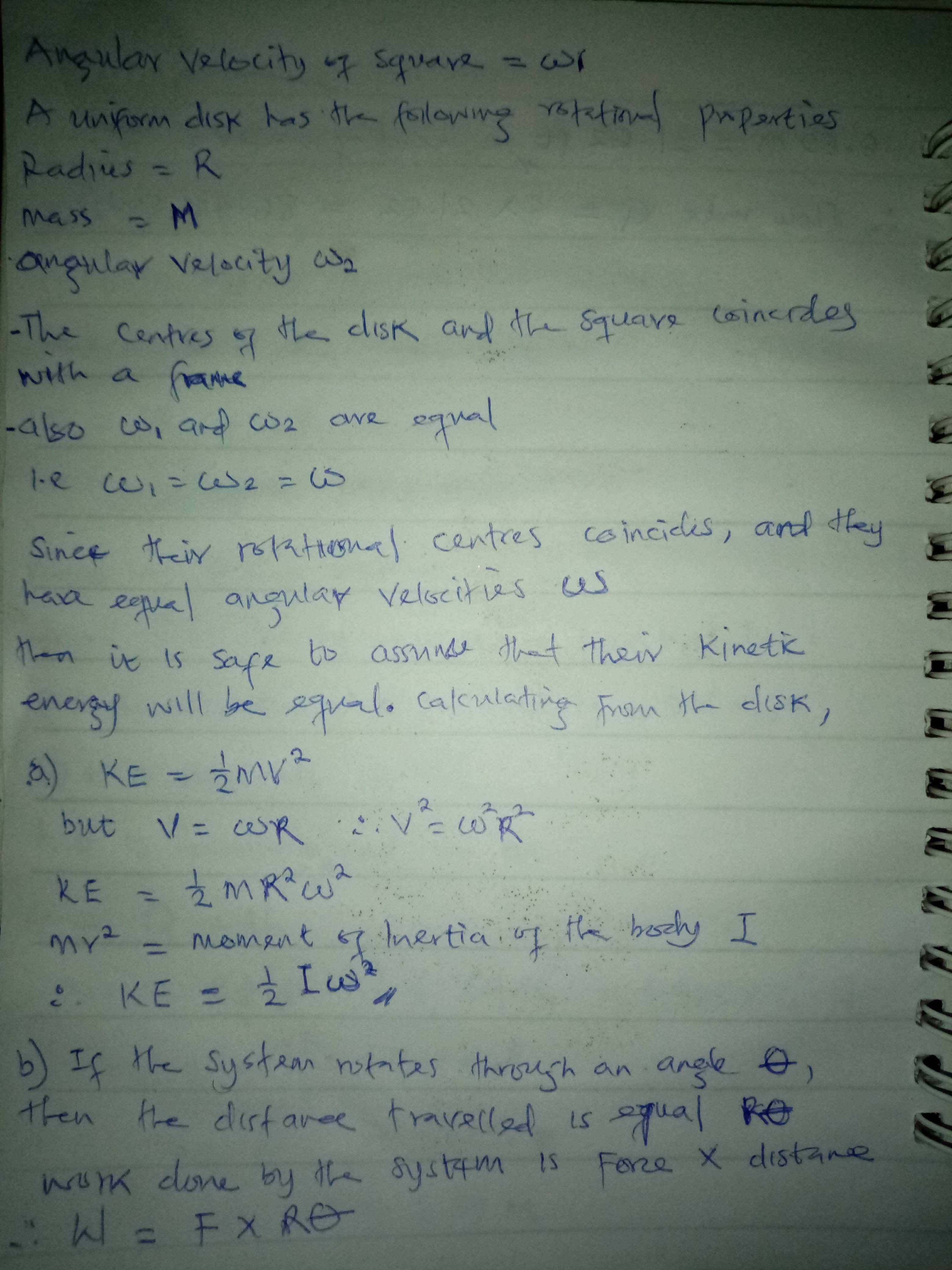

Detailed explanation and calculation is shown in the image below
