Answer:
Explanation:
As per Faraday's law of Electromagnetic induction we know that
Rate of change in magnetic flux will induce EMF in the closed conducting loop
so we have
now we have
now we have
now the induced EMF through this loop is given as
A scaffold of mass 60 kg and length 5.0 m is supported in a horizontal position by a vertical cable at each end. Its center of g
ravity is at the middle of the scaffold. A window washer of mass 80 kg stands at a point 1.5 m from one end. What is the tension in (a) the nearer cable and (b) the farther cable
1 answer:
Answer:
a) 842.8 N
b) 529.2 N
Explanation:
Given
Mass of scaffold, m = 60 kg
Length of scaffold, l = 5 m
Mass of window washer, m(w) = 80 kg
Distance of the window washer, d = 1.5 m

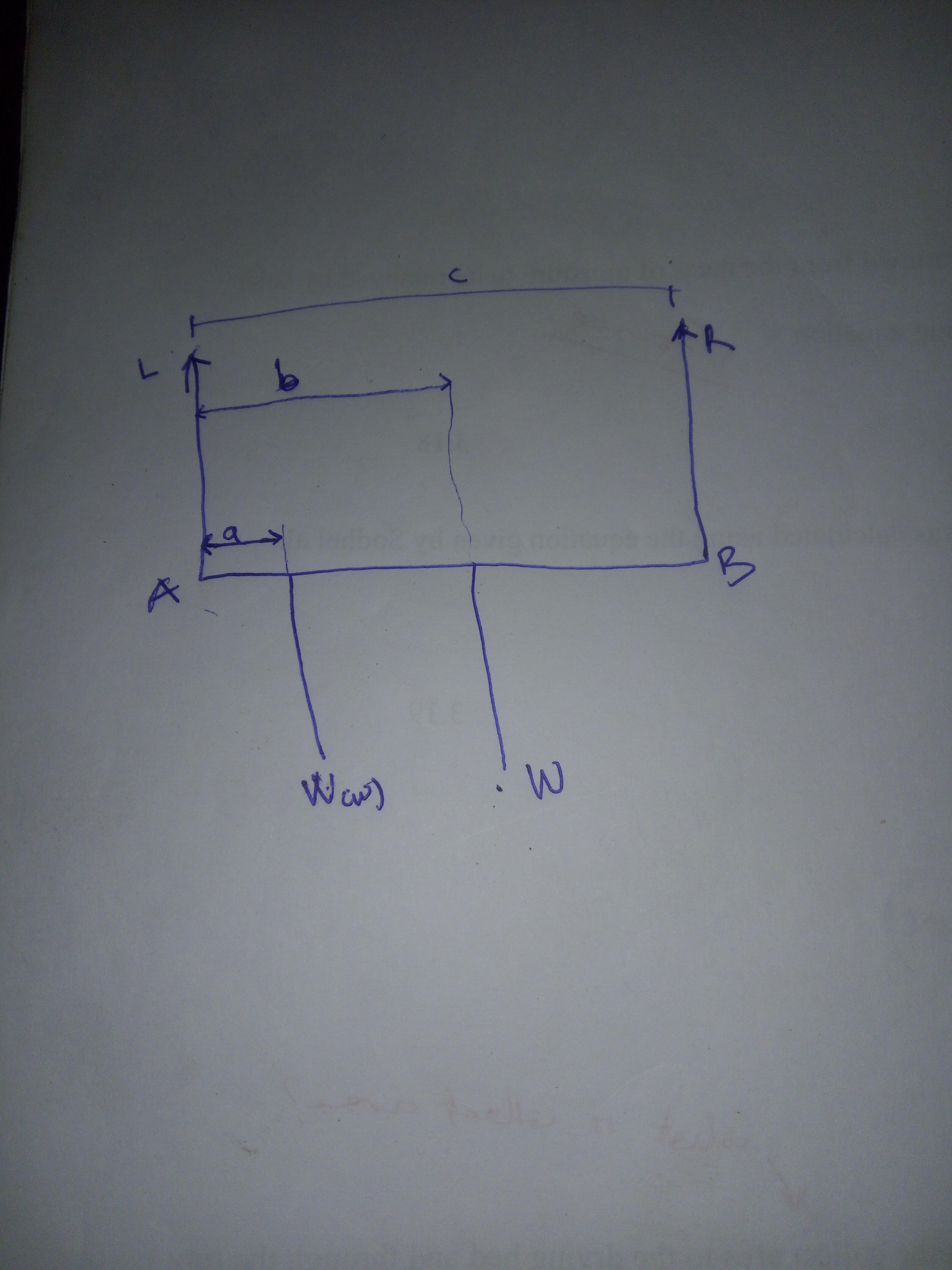

From the attached image
a = 1.5 m
b = 2.5 m
c = 5 m
W = 60 * 9.8 = 588 N
W(w) = 80 * 9.8 = 784 N
Since the scaffold is in equilibrium, then
Στ(b) = 0
W * (c - b) + W(w) * (c - a) - Lc = 0
Lc = W * (c - b) + W(w) * (c - a)
L = [W * (c - b) + W(w) * (c - a)] / c
L = [588 * (5 - 2.5) + 784 * (5 - 1.5)] / 5
L = (588 * 2.5 + 784 * 3.5) / 5
L = (1470 + 2744) / 5
L = 4214 / 5
L = 842.8 N
Στ(a) = 0
Rc - W * b - W(w) * a = 0
R = [W * b + W(w) * a] / c
R = (588 * 2.5 + 784 * 1.5) / 5
R = (1470 + 1176) / 5
R = 2646 / 5
R = 529.2 N
