Question

(a) The original value of the reaction quotient, Qc, for the reaction of H2(g) and I2(g) to form HI(g) (before any reactions take place and before equilibrium is established), was 5.56. On the following graph, plot the points representing the initial concentrations of all three gases. Label each point with the formula of the gas.

Answer 1

Answer:

Here's what I get

Explanation:

Assume the initial concentrations of H₂ and I₂ are 0.030 and 0.015 mol·L⁻¹, respectively.

We must calculate the initial concentration of HI.

1. We will need a chemical equation with concentrations, so let's gather all the information in one place.

                   H₂ +    I₂    ⇌ 2HI

I/mol·L⁻¹:    0.30   0.15         x

2. Calculate the concentration of HI

$Q_{\text{c}} = \dfrac{\text{[HI]}^{2}} {\text{[H _{2} ][I _{2} ]}} =\dfrac{x^{2}}{0.30 \times 0.15} = 5.56\\\\x^{2} = 0.30 \times 0.15 \times 5.56 = 0.250\\x = \sqrt{0.250} = \textbf{0.50 mol/L}\\\text{The initial concentration of HI is \large \boxed{\textbf{0.50 mol/L}} }$

3. Plot the initial points

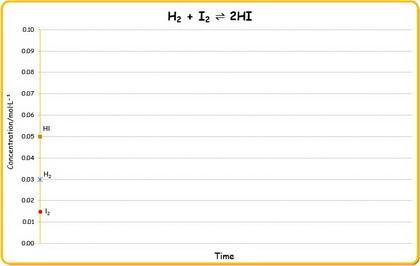

The graph below shows the initial concentrations plotted on the vertical axis.
