A book is sitting on a desk. what best describes the normal force acting on the book

Physics
2 answers:
Margarita [4]2 years ago
7 0

the upward force the desk pushes on the book.

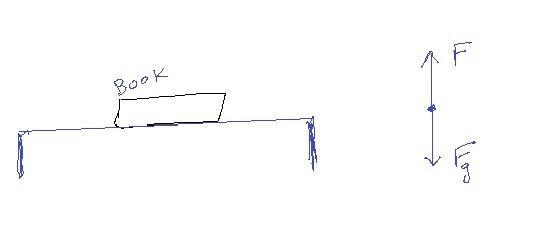

from the free body diagram of the book, it is clear that on the book, there are two forces acting.

1) normal force F by the desk in Upward direction.

2) force of gravity by earth in downward direction.

The Upward normal force by the desk on the book balances the force of gravity by earth in downward direction. that is why the book remains stationary on the desk.

blsea [12.9K]2 years ago
4 0

The forces acting upon the book are shown below. The force of gravity pulling downward and the force of the table pushing upwards on the book are of equal magnitude and opposite directions. These two forces balance each other.

You might be interested in
A baseball pitcher throws a ball at 90.0 mi/h in the horizontal direction. How far does the ball fall vertically by the time it
Lisa [10]

Answer:

Vertical distance=  3.3803ft

Explanation:

First with the speed of the ball and the distance traveled horizontally we can determine the flight time to reach the plate:

Velocity= (90 mi/h) × (1 mile/5280ft) = 475200ft/h

Distance= Velocity × time⇒ time= 60.5ft / (475200ft/h) = 0.00012731h

time=  0.00012731h × (3600s/h)= 0.458316s

With this time we can determine the distance traveled vertically taking into account that its initial vertical velocity is zero and its acceleration is that of gravity, 9.81m/s²:

Vertical distance= (1/2) × 9.81 (m/s²) × (0.458316s)²=1.0303m

Vertical distance= 1.0303m × (1ft/0.3048m) = 3.3803ft

This is the vertical distance traveled by the ball from the time it is thrown by the pitcher until it reaches the plate, regardless of air resistance.

3 0
2 years ago
Max and Jimmy want to jump on a trampoline. Max begins jumping in a steady pattern, making small waves in the trampoline. Jimmy
mylen [45]

Answer:

x_total = (A + B) cos (wt + Ф)

we have the sum of the two waves in a phase movement

Explanation:

In this case we can see that the first boy Max when he enters the trampoline and jumps creates a harmonic movement, with a given frequency. When the second boy Jimmy enters the trampoline and begins to jump he also creates a harmonic movement. If the frequency of the two movements is the same and they are in phase we have a resonant process, where the amplitude of the movement increases significantly.

         Max

               x₁ = A cos (wt + Ф)

         Jimmy

              x₂ = B cos (wt + Ф)



total movement

             x_total = (A + B) cos (wt + Ф)

 Therefore we have the sum of the two waves in a phase movement

8 0
2 years ago
Find the object's speeds v1, v2, and v3 at times t1=2.0s, t2=4.0s, and t3=13s.
Burka [1]
Since this is a distance/time graph, the speed at any time is the slope
of the part of the graph that's directly over that time on the x-axis.

At time  t1 = 2.0 s
That's in the middle of the first segment of the graph,
that extends from zero to 3 seconds.
Its slope is  7/3 .              v1 = 7/3 m/s .

At time  t2 = 4.0 s
That's in the middle of the horizontal part of the graph
that runs from 3 to 6 seconds.
Its slope is zero.
                                     v2 = zero .

At time  t3 = 13 s.
That's in the middle of the part of the graph that's sloping down,
between 11 and 16 seconds.
Its slope is  -3/5 .            v3 = -0.6 m/s .
7 0
2 years ago
Read 2 more answers
A quarterback throws a football at 40km/hr to a receiver 50yd away. How much time does it take the ball to reach the receiver
Akimi4 [234]

Given:

Distance = 50 yard = 45.72 meter

Speed = 40 km/hr = 11.11 m/s

To find:

Time required by ball to reach the receiver = ?

Formula used:

speed = \frac{distance}{time}

Solution:

The speed of the ball is given by,

speed = \frac{distance}{time}

Thus,

Time = \frac{distance}{speed}

Distance = 50 yard = 45.72 meter

Speed = 40 km/hr = 11.11 m/s

Time = 4.12 second

Hence, ball reaches the receiver in 4.12 second.

3 0
2 years ago
Describe electrons.<br> Location:<br> Charge:<br> Mass
irga5000 [103]
Protons, neutrons and electrons. Both protons and neutrons have a mass of 1 amu and are found in the nucleus. However, protons have a charge of +1, and neutrons are uncharged. Electrons have a mass of approximately 0 amu, orbit the the nucleus, and have a charge of -1.
5 0
2 years ago
Read 2 more answers
