Margaret [11]
2 years ago
13

A liquid mixture containing 30.0 mole% benzene (B), 25.0% toluene (T), and the balance xylene (X) is fed to a distillation colum

n. The bottoms product contains 98.0% X and no B, and 96.0% of the X in the feed is recovered in this stream. The overhead product is fed to a second column. The overhead product from the second column contains 97.0% of the B in the feed to this stream. The composition of this stream is 94.0 mole% B and the balance T. Draw and label a flowchart of this process and do the degree-of-freedom analysis to prove that for an assumed basis of calculation, molar flow rates and compositions of all process streams can be calculated from the given information. Write in order the equations you would solve to unknown process variables. In each equation (or pair of simultaneous equations), circle the variable(s) for which you would solve.

Chemistry
1 answer:
creativ13 [48]2 years ago
8 0

Answer:

Explanation:

The principle of material balance around a distillation column is applied.

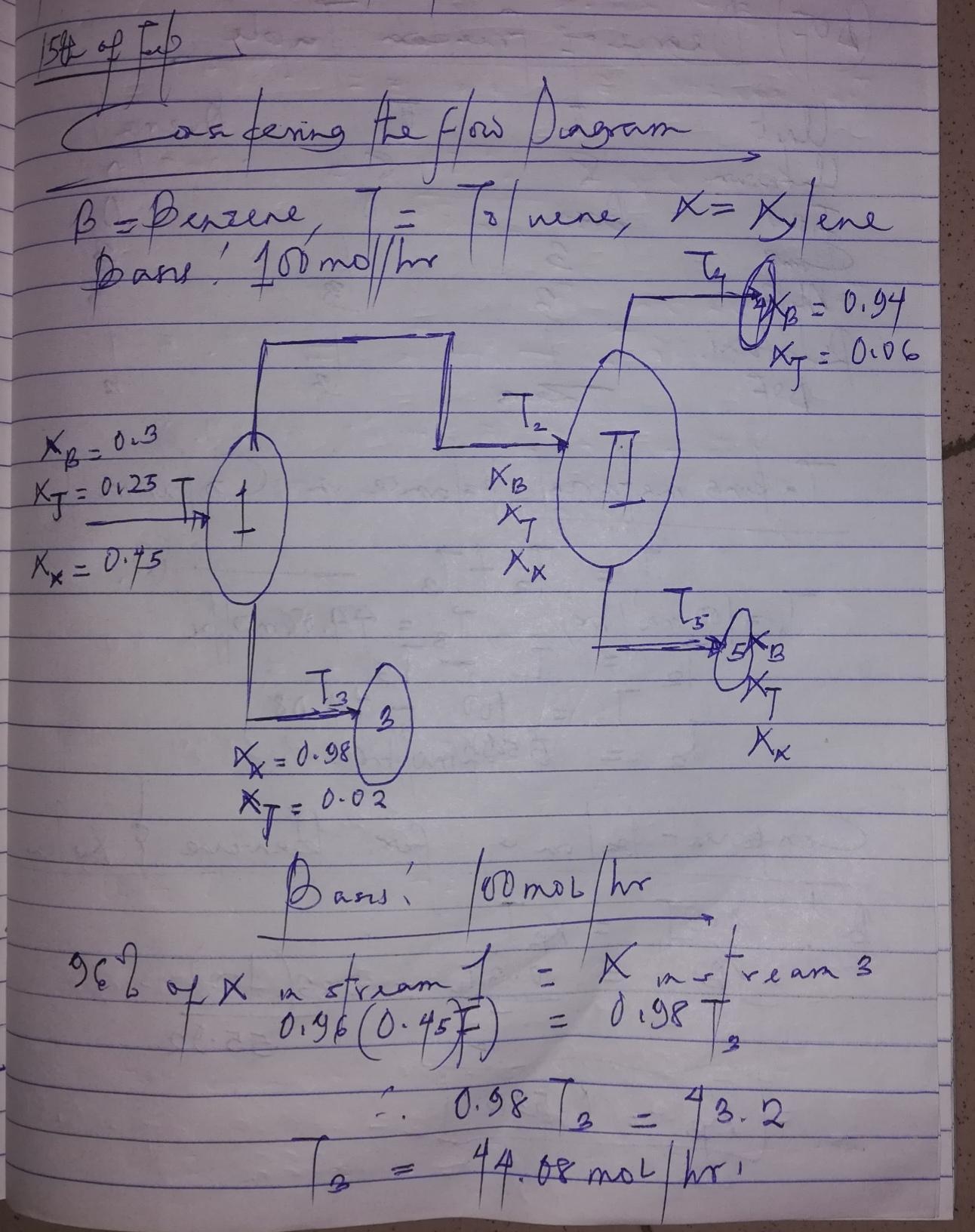

Material and component balance is taken in each column and appropriate substitution and analysis were made as shown in the attached files.

You might be interested in
14) The central iodine atom in the ICl4- ion has __________ nonbonded electron pairs and __________ bonded electron pairs in its
masha68 [24]

Answer:

Two non bonded electron pairs and four bonded electron pairs

Explanation:

An image of the compound as obtained from chemlibretext is attached to this answer.

The ion ICl4- ion, is an AX4E2 ion. This implies that there are four bond pairs and two lone pairs of electrons. As expected, the shape of the ion is square planar since the lone pairs are found above and below the plane of the square. This is clear from the image attached.

7 0
2 years ago
A sample of cacl2⋅2h2o/k2c2o4⋅h2o solid salt mixture is dissolved in ~150 ml de-ionized h2o. the oven dried precipitate has a ma
Paraphin [41]

We are given that the balanced chemical reaction is:

cacl2⋅2h2o(aq) + k2c2o4⋅h2o(aq) ---> cac2o4⋅h2o(s) + 2kcl(aq) + 2h2o(l)

We known that the product was oven dried, therefore the mass of 0.333 g pertains only to that of the substance cac2o4⋅h2o(s). So what we will do first is to convert this into moles by dividing the mass with the molar mass. The molar mass of cac2o4⋅h2o(s) is molar mass of cac2o4 plus the molar mass of h2o.

molar mass cac2o4⋅h2o(s) = 128.10 + 18 = 146.10 g /mole

moles cac2o4⋅h2o(s) = 0.333 / 146.10 = 2.28 x 10^-3 moles

Looking at the balanced chemical reaction, the ratio of cac2o4⋅h2o(s) and k2c2o4⋅h2o(aq) is 1:1, therefore:

moles k2c2o4⋅h2o(aq) = 2.28 x 10^-3 moles

Converting this to mass:

mass k2c2o4⋅h2o(aq) = 2.28 x 10^-3 moles (184.24 g /mol) = 0.419931006 g



Therefore:

The mass of k2c2o4⋅<span>h2o(aq) in the salt mixture is about 0.420 g</span>

3 0
2 years ago
Read 2 more answers
1. Which liquid sample is a pure substance?
IRISSAK [1]

The whole Activity , poem and paragraph is missing in the question.

Answer:

(1) Liquid A

(2) Solid A

Explanation:

Using this part of the given poem

Substances and mixtures behave differently,

During boiling and melting most especially

Boiling point of substance is fixed while mixture is not

Substance melts completely but mixture does not

The boiling point of the Pure substance remain fixed after reaching its boiling point this is shown by Liquid A

Solid A is melting completely so Solid A is a pure substance.

6 0
2 years ago
How many grams are in 2.5 pound sample
julsineya [31]
About 2,500 grams Ans balkfdoaks;
5 0
2 years ago
Perform the following calculations and give your answer with the correct number of significant figures:
Arte-miy333 [17]
When multiplying numbers, the term with the least significant digits gives how many significant digits will be in the answer. 2.995 has the least with 4 "sig figs", so the answer will have 4 significant digits as well:

2.995/0.16685 = <span>17.9502547198
</span>                           ↑↑  ↑<span>↑
                        4 sig figs

So the answer is 17.95.</span>
3 0
2 years ago
