A circuit contains two inductors of 6.0 mH inductance in parallel placed in series with an inductor of 8.0 mH inductance. After

one of the 6.0 mH inductors burns out, the repairman wants to replace all three inductors with one inductor of equivalent inductance. Assuming inductors combine in series and parallel the same way resistors do, what inductance should he use

Physics
1 answer:
Fynjy0 [20]2 years ago
4 0

Answer:

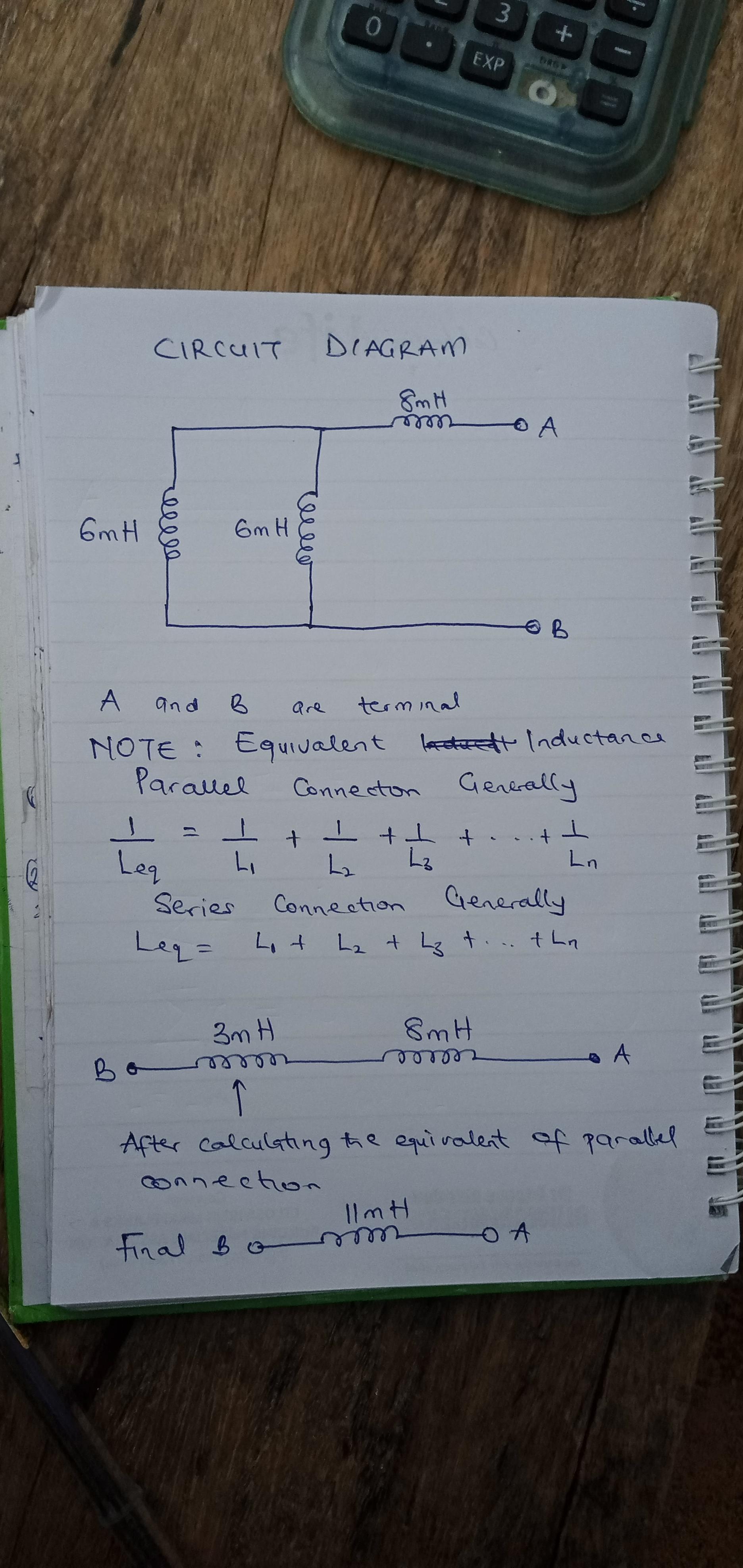

Check attachment for circuit diagram

And better understanding

Explanation:

Let find the equivalent inductance.

The 6mH in parallel to 6mH

Parallel connection will give

1 / Leq = 1 / L1 + 1 / L2

L1 = L2 = L = 6mH

1 / Leq = 1 / 6 + 1 / 6

1 / Leq = 2 / 6

1 / Leq = 1 / 3

Then, take reciprocal

Leq = 3 mH

Now the combInation of this parallel connection is connect in series with an 8mH inductor

Series connection is given as

Leq = L1 + L2

So, the equivalent of the parallel connection is 3mH and this will be connect in series with 8mH

Then, final inductance is

Leq = 3 + 8

Leq = 11 mH

Therefore, the repairman need to replace the element with one inductor of inductance 11 mH.

You might be interested in
A man holding 7N weight moves 7m horizontal and 5m vertical , find the work done
SashulF [63]

Answer:

35 J

Explanation:

The man is holding the box: this means that he is applying a force vertically upward, to balance the weight of the box (which pushes downward).

Therefore, we can ignore the horizontal displacement of the man, because the force applied (vertically upward) is perpendicular to that displacement (horizontal), so the work done for that is zero.

So, only the vertical motion contributes to the work. The work done by the man is equal to the gain in gravitational potential energy of the box, so:

W=(mg)\Delta h

where

mg=7 N is the weight of the box

\Delta h=5 m is the vertical displacement

Substituting, we find

W=(7N)(5 m)=35 J

8 0
2 years ago
Use the periodic table and your knowledge of isotopes to complete these statements.
klasskru [66]
<span><span>Use the periodic table and your knowledge of isotopes to complete these statements.

When polonium-210 emits an alpha particle, the child isotope has an atomic mass of </span><span> ⇒ 206</span>.</span>

<span><span>I-131 undergoes beta-minus decay. The chemical symbol for the new element is </span><span> ⇒ Xe</span>.</span>

<span><span>Fluorine-18 undergoes beta-plus decay. The child isotope has an atomic mass of </span><span> ⇒ 18</span>.</span>

7 0
2 years ago
Read 2 more answers
The ultimate source of energy that powers the Sun is__________.
dolphi86 [110]

Answer:C

Explanation:

Mass energy of hydrogen fusing into helium

5 0
2 years ago
Read 2 more answers
Your town is installing a fountain in the main square. If the water is to rise 26.0 m (85.3 feet) above the fountain, how much p
Brums [2.3K]

Answer:

P = 3.55 \times 10^5 Pa

Explanation:

As we know that water from the fountain will raise to maximum height

H = 26.0 m

now by energy conservation we can say that initial speed of the water just after it moves out will be

\frac{1}{2}mv^2 = mgH

v = \sqrt{2gH}

v = \sqrt{2(9.81)(26)}

v = 22.6 m/s

Now we can use Bernuolli's theorem to find the initial pressure inside the pipe

P = P_0 + \frac{1}{2}\rho v^2

P = 10^5 + \frac{1}{2}(1000)(22.6^2)

P = 3.55 \times 10^5 Pa

6 0
2 years ago
Starting at point 0, you travel 500 m on a straight road that slopes upward at a constant angle of 5 degrees. What is your heigh
ira [324]

Answer:

43.58 m

Explanation:

If you travel 500 m on a straight road that slopes upward at a constant angle of 5 degrees

Using trigonometry ratio

Sin 5 = opposite/hypothenus

Where the hypothenus = 500m

Opposite = height h

Sin 5 = h/500

Cross multiply

500 × sin 5 = h

h = 500 × 0.08715

h = 43.58m

Therefore, the height above the starting point is equal to 43.58m

5 0
2 years ago
