An ideal Stirling cycle filled with air uses a 75 F energy reservoir as a sink. The engine is designed to so that the maximum ai

r volume is 0.5 ft3 , the minimum air volume is 0.05 ft3 , and the minimum pressure is 15 psi. It is to be operated such that the engine produces 2 Btu of net work when 5 Btu of heat are transferred externally to the to the engine. Determine the temperature of the energy source, the amount of air contained inside the engine, and the maximum air pressure during the cycle.

1 answer:

algol132 years ago

6 0

Answer:

Explanation:

For the given stirling circle with air as the working fluid, temperature, pressure, and volume i^th stage are $T_t, P_i$ and $V_i$ respectively

Obtain the properties of air at room temperature from molar mass, gas constant and critical point properties table

Gas constant R = 0.3704 psia ft³ / ibm.R

Express the thermal efficiency of an ideal stirling engine

$n_{th}=\frac{W_{net}}{Q_{in}} =1-\frac{T_L}{T_H}$

Here, network done by the stirling engine is $W_{net}$

heat input to the engine is $Q_{in}$

Temperature of the heat source is $T_H$

Temperature of the sink is $T_L$

substitute 535 for $T_L$ , 2Btu for $W_{net}$ , 5Btu for $Q_{in}$ to find $T_H$

$\frac{2Btu}{5Btu}=1-\frac{535R}{T_H} \\\\T_H=\frac{535}{0.6}\\\\=891.7R$

Hence , the temperature of the source of energy reservoir is 891.7R

Express the idea gas equation for air at state 3 of the cycle

$m=\frac{P_3V_3}{RT_3}$

substitute

$15psia \ \ for \ \ p_3 \\\\0.5ft^3 \ \ for \ \ V_3 \\\\ 0.3704 psia.ft^/ibm.R \ \ for \ \ R \\\\535R \ \ for \ \ R$

$m=\frac{(15)(0.5)}{(0.3785)(535)} \\\\=0.3785Ibm$

Hence ,the amount of air conditioned in the engine is 0.3785 Ibm

Express the ideal gas equation for air at state 1 of the cycle

$P_1=\frac{mRT_1}{V_1}$

substitute 0.03785 for m,

$0.3704 psia ft^3/Ibm.R for R,\\\\ 891.7R for T_1 \ \ and \ \ 0.06ft^3 for V_1$

$P_1=\frac{(0.03785)(0.3704)(891.7)}{(0.05)} \\\\=250 \texttt{psia}$

Hence, the maximum air pressure during the cycle is 250 psia

You might be interested in

The manufacturer of a 1.5 V D flashlight battery says that the battery will deliver 9 mA for 40 continuous hours. During that ti

Jet001 [13]

Answer:

a) 144.000 s

b) and c)Battery voltage and power plots in attached image.

$V=-\frac{0.5}{144000} t + 1.5 V[tex] [tex]P(t)=-(31.25X10^{-9}) t+0.0135$ where D:{0<t<40} h

d) 1620 J

Explanation:

a) The first answer is a rule of three

$s=\frac{3600s * 40h}{1h} = 144000s$

b) Using the line equation with initial point (0 seconds, 1.5 V)

$m=\frac{1-1.5}{144000-0} = \frac{-0.5}{144000}$

where m is the slope.

$V-V_{1}=m(x-x_{1})$

where V is voltage in V, and t is time in seconds

$V=m(t-t_{1}) + V_{1}$ and using P and m.

$V=-\frac{0.5}{144000} t + 1.5 V[tex] c) Using the equation VPOWER IS DEFINED AS:[tex] P(t) = v(t) * i(t) [tex]so.[tex] P(t) = 9mA * (-\frac{0.5}{144000} t + 1.5) [tex][tex]P(t) = - (31.25X10^{-9}) t + 0.0135$

d) Having a count that.

$E = \int\limits^{144000}_{0} {P(t)} \, dt = \int\limits^{144000}_{0} {v(t)*i(t)} \, dt$

$E = \int\limits^{144000}_{0} {-\frac{0.5}{144000} t + 1.5*0.009} \, dt = 1620 J$

4 0

2 years ago

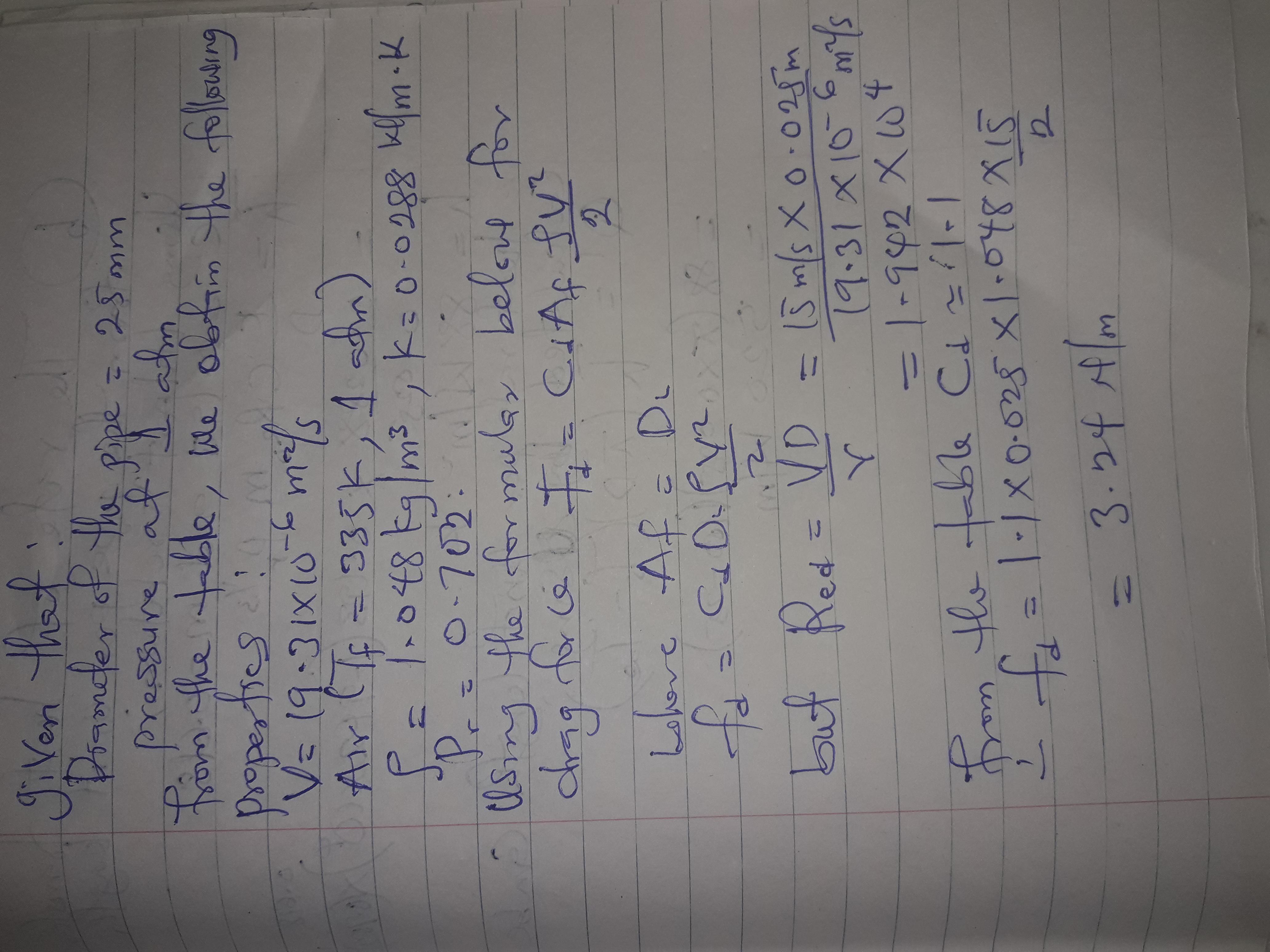

A circular pipe of 25-mm outside diameter is placed in an airstream at 25 °C and 1-atm pressure. The air moves in cross flow ove

Scrat [10]

Answer: a) Fd = 3.24 N/m

b) Q = 520 w/m

Explanation: please find the attached files for the solution

7 0

2 years ago

The gradual and uniform cooling of glass that has been heated in order to relieve random internal stresses is... Group of answer

kirill115 [55]

Answer: Annealing

Explanation:

In the manufacturing of glass, Processes such as expansion when glass heats and cooling when it contracts are involved. These build up random internal stresses which can cause cracks and breakage when finally cooled at room temperature. To relieve these stresses, Annealing is carried out on glass during the manufacturing process.

Annealing is the process whereby the temperature during the process of the manufacturing of glass is reduced and maintained at a uniform rate so that it undergoes a gradual cooling process. so as to make the glass tough and reduce internal stress.

7 0

2 years ago

Based in bonding theory, explain why heat capacity increases when you consider metals, ceramics and polymers.

Sonbull [250]

Answer:

Metals are good conductors are heat. Many applications of ceramics, such as their use as insulating materials cause higher heating capacity. In the case of polymers, we have to distinguish between the heat capacity of liquid, rubbery and glassy polymers. The heat capacity increases with increasing temperature, therefore, a liquid or rubbery polymer can hold more energy than a solid polymer.

Explanation:

Valence bond (VB) theory is a chemical bonding theory that explains the chemical bonding between two atoms. Like molecular orbital (MO) theory, it explains bonding using principles of quantum mechanics. According to valence bond theory, bonding is caused by the overlap of half-filled atomic orbitals. The two atoms share each other's unpaired electron to form a filled orbital to form a hybrid orbital and bond together. Sigma and pi bonds are part of valence bond theory.

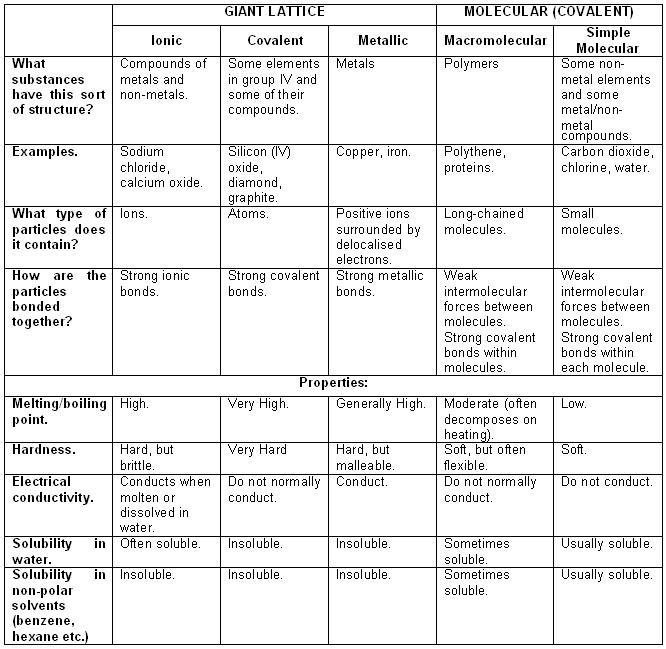

Bonding, Structure and Properties

The bonding and structure of substances determine their properties.
Bonding is the way the atoms are held together.
The structure is the way the atoms are arranged relative to each other.
There are two major types of structure: giant and molecular.
Giant structures go on indefinitely, whereas molecular structures are made up of groups of atoms.

4 0

2 years ago

Raul doesn’t feel like he needs to write down events that will happen months from now. Explain to him why it is important to use

MAXImum [283]

The primary reason for having a calendar is to organize the days, weeks, months and years. It keeps a track of which day of the week events fall and when special events are going to happen. Historically speaking calendars were often uses to preserve religious holidays and events.

4 0
