A shaft consisting of a steel tube of 50-mm outer diameter is to transmit 100 kW of power while rotating at a frequency of 34 Hz

. Determine the tube thickness that should be used if the shearing stress is not to exceed 60 MPa.

1 answer:

nikitadnepr [17]2 years ago

4 0

Answer:

25 - $\sqrt[4]{26.66*10^{-8} }$ mm

Explanation:

Given data

steel tube : outer diameter = 50-mm

power transmitted = 100 KW

frequency(f) = 34 Hz

shearing stress ≤ 60 MPa

Determine tube thickness

firstly we calculate the ; power, angular velocity and torque of the tube

power = T(torque) * w (angular velocity)

angular velocity ( w ) = 2 $\pi$ f = 2 * $\pi$ * 34 = 213.71

Torque (T) = power / angular velocity = 100000 / 213.71 = 467.92 N.m/s

next we calculate the inner diameter using the relation

$\frac{J}{c_{2} } = \frac{T}{t_{max} }$ = 467.92 / (60 * 10^6) = 7.8 * 10^-6 m^3

also

c2 = (50/2) = 25 mm

$\frac{J}{c_{2} }$ = $\frac{\pi }{2c_{2} } ( c^{4} _{2} - c^{4} _{1} )$ = $\frac{\pi }{0.050} [ ( 0.025^{4} - c^{4} _{1} ) ]$

therefore; 0.025^4 - $c^{4} _{1}$ = 0.050 / $\pi$ (7.8 *10^-6)

$c^{4} _{1}$ = 39.06 * 10 ^-8 - ( 1.59*10^-2 * 7.8*10^-6)

39.06 * 10^-8 - 12.402 * 10^-8 =26.66 *10^-8

$c_{1} = \sqrt[4]{26.66 * 10^{-8} }$ =

THE TUBE THICKNESS

$c_{2} - c_{1}$ = 25 - $\sqrt[4]{26.66*10^{-8} }$ mm

You might be interested in

The force exerted on a bridge pier in a river is to be tested in a 1:10 scale model using water as the working fluid. In the pro

Len [333]

Answer:

Force on the prototype is 5000 N

Solution:

As per the question:

Depth of water, x = 2.0 m

Flow velocity, v' = 1.5 m/s

Width of the river, w = 20 m

Force on the bridge pier model, F' = 5 N

Pressure, Ratio = Ratio of scale length

Scale = 1:10

Now,

$\frac{P'}{P} = \frac{x}{w} = \frac{2.0}{20}$

where

P' = pressure on model

P = pressure on prototype

$\frac{\frac{F'}{A'}}{\frac{F}{A}} = \frac{1}{10}$

where

F' = Force on model

F = Force on prototype

A' = Area of model

A = Area of prototype

Now:

$\frac{F'}{F}.\frac{A}{A'} = \frac{1}{10}$

$\frac{5}{F}.\frac{1}{\frac{1}{10}}.\frac{1}{\frac{1}{10}} = \frac{1}{10}$

F = 5000 N

3 0

2 years ago

Air enters a nozzle steadily at 280 kPa and 77°C with a velocity of 50 m/s and exits at 85 kPa and 320 m/s. The heat losses from

Arlecino [84]

The input values are the following

$\left.T_{1}=350 K\right\ then$

$h_{1}=350.49 \frac{k j}{k g}, s_{1}=1.85708 \frac{K j}{K g \cdot K}$

By using the energy equilibrium

$\dot{E}_{i n}-\dot{E}_{o u t}=\Delta \dot{E}_{s y s t e m}=0$ , $\dot{E}_{i n}=\dot{E}_{o u t}$

we have $T_{2}=297.2 K$

eq (1) $\dot{m}\left(h_{1}+\frac{V_{1}^{2}}{2}\right)=\dot{m}\left(h_{2}+\frac{V_{2}^{2}}{2}\right)+\dot{Q}_{o u t}$ ∴

$0=q+h_{2}-h_{1}+\frac{V_{2}^{2}-V_{1}^{2}}{2}$

Now, for specific energy h2:

$h_{2}=h_{1}-q_{o u t}-\frac{V_{2}^{2}-V_{1}^{2}}{2}$

By replacing the eq (1) we have

$h_{2}=350.49 \frac{k j}{k g}-3.2-\frac{\left(320 \frac{m}{s}\right)^{2}-\left(50 \frac{m}{m}\right)^{2}}{2}\left(\frac{1 \frac{k j}{k g}}{1000 \frac{m^{2}}{s^{2}}}\right)$

$h_{2}=297.34 \frac{k j}{k g}$

By using a standard ideal-gas properties of air we have

$T_{2}=297.2 K$

6 0

2 years ago

A heat pump operates on a Carnot heat pump cycle with a COP of 12.5. It keeps a space at 24°C by consuming 2.15 kW of power. Det

Vinil7 [7]

Answer:

a) $T_{L} = 273.378\,K\,(0.228\,^{\textdegree}C)$ , b) $\dot Q_{H} = 26.875\,kW$

Explanation:

a) The Coefficient of Performance of the Carnot Heat Pump is:

$COP_{HP} = \frac{T_{H}}{T_{H}-T_{L}}$

After some algebraic handling, the temperature of the cold reservoir is determined:

$T_{H}-T_{L} = \frac{T_{H}}{COP_{HP}}$

$T_{L} = T_{H}\cdot \left(1-\frac{1}{COP_{HP}} \right)$

$T_{L} = (297.15\,K)\cdot \left(1-\frac{1}{12.5}\right)$

$T_{L} = 273.378\,K\,(0.228\,^{\textdegree}C)$

b) The heating load provided by the heat pump is:

$\dot Q_{H} = COP_{HP}\cdot \dot W$

$\dot Q_{H} = (12.5)\cdot (2.15\,kW)$

$\dot Q_{H} = 26.875\,kW$

4 0

2 years ago

A 100 kmol/h stream that is 97 mole% carbon tetrachloride (CCL) and 3% carbon disulfide (CS2) is to be recovered from the bottom

Ugo [173]

Answer: oop

Explanation:oop

7 0

2 years ago

A 0.40-m3 insulated piston-cylinder device initially contains 1.3 kg of air at 30°C. At this state, the piston is free to move.

Setler79 [48]

Answer:

(a) The Final Temperature is 315.25 K.

(b) The amount of mass that has entered 0.5742 Kg.

(c) The work done is 56.52 kJ.

(d) The entrophy generation is 0.0398 kJ/kgK.

Explanation:

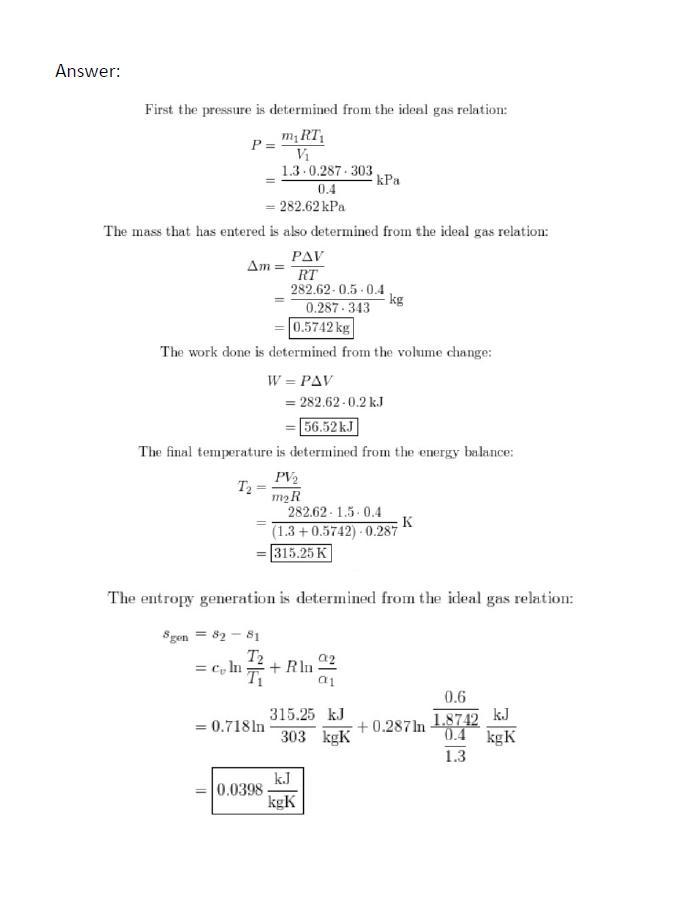

Explanation is in the following attachments.
