kotegsom [21]
2 years ago
12

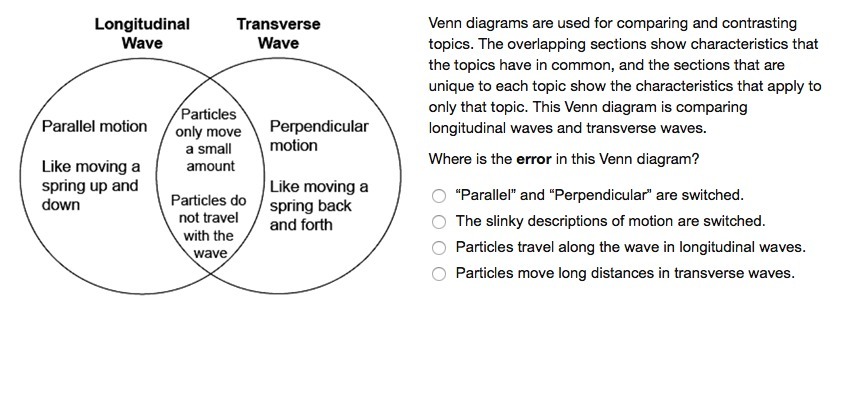

Venn diagrams are used for comparing and contrasting topics. The overlapping sections show characteristics that the topics have

in common, and the sections that are unique to each topic show the characteristics that apply to only that topic. This Venn diagram is comparing longitudinal waves and transverse waves.
“Parallel” and “Perpendicular” are switched.
The slinky descriptions of motion are switched.
Particles travel along the wave in longitudinal waves.
Particles move long distances in transverse waves.

Physics
2 answers:
Kisachek [45]2 years ago
8 0

Answer: The correct answer is "the slinky descriptions of motion are switched".

Explanation:

Longitudinal wave: The particles of the medium move parallel to the direction of the motion of the wave in which the energy from one particle to the another is transported. For example, sound wave. Here, the motion of the wave is like back and forth.

Transverse wave: The particles of the medium move perpendicular to the direction of the motion of the wave in which the energy is transported from one particle to the another.  For example, light wave. Here, the motion of the wave is like up and down.

Therefore, there is an error in the given Venn diagram. The slinky descriptions of motion are switched.

Zanzabum2 years ago
7 0
The second option is the best.
You might be interested in
A car is traveling at 20 meters/second and is brought to rest by applying brakes over a period of 4 seconds. What is its average
frez [133]
 (u) = 20 m/s
(v) = 0 m/s
<span> (t) = 4 s
</span>
<span>0 = 20 + a(4)

</span><span>4 x a = -20
</span>
so, the answer is <span>-5 m/s^2. or -5 meter per second</span>
8 0
2 years ago
Read 2 more answers
A 1.15-kg mass oscillates according to the equation x = 0.650 cos(8.40t) where x is in meters and t in seconds. Determine (a) th
zheka24 [161]

Answer:

(a) A = 0.650 m

(b) f = 1.3368 Hz

(c) E = 17.1416 J

(d)  K = 11.8835 J

     U = 5.2581 J

Explanation:

Given

m = 1.15 kg

x = 0.650 cos (8.40t)

(a) the amplitude,

A = 0.650 m

(b) the frequency,

if we know that

ω = 2πf = 8.40    ⇒   f = 8.40 / (2π)

⇒   f = 1.3368 Hz

(c) the total energy,

we use the formula

E = m*ω²*A² / 2

⇒  E = (1.15)(8.40)²(0.650)² / 2

⇒  E = 17.1416 J

(d) the kinetic energy and potential energy when x = 0.360 m.

We use the formulas

K = (1/2)*m*ω²*(A² - x²)       (the kinetic energy)

and

U = (1/2)*m*ω²*x²              (the potential energy)

then

K = (1/2)*(1.15)*(8.40)²*((0.650)² - (0.360)²)

⇒  K = 11.8835 J

U = (1/2)*(1.15)*(8.40)²*(0.360)²

⇒  U = 5.2581 J

4 0
2 years ago
If 300. mL of water are poured into the measuring cup, the volume reading is 10.1 oz . This indicates that 300. mL and 10.1 oz a
tigry1 [53]

Answer:

Milliliters to Ounces Conversions

some results rounded

mL    - fl oz

200.00 6.7628

200.01 6.7631

200.02 6.7635

200.03 6.7638

200.04 6.7642

200.05 6.7645

200.06 6.7648

200.07 6.7652

200.08 6.7655

200.09 6.7658

200.10 6.7662

200.11 6.7665

200.12 6.7669

200.13 6.7672

200.14 6.7675

200.15 6.7679

200.16 6.7682

200.17 6.7686

200.18 6.7689

200.19 6.7692

200.20 6.7696

200.21 6.7699

200.22 6.7702

200.23 6.7706

200.24 6.7709

mL fl oz

200.25 6.7713

200.26 6.7716

200.27 6.7719

200.28 6.7723

200.29 6.7726

200.30 6.7729

200.31 6.7733

200.32 6.7736

200.33 6.7740

200.34 6.7743

200.35 6.7746

200.36 6.7750

200.37 6.7753

200.38 6.7757

200.39 6.7760

200.40 6.7763

200.41 6.7767

200.42 6.7770

200.43 6.7773

200.44 6.7777

200.45 6.7780

200.46 6.7784

200.47 6.7787

200.48 6.7790

200.49 6.7794

mL fl oz

200.50 6.7797

200.51 6.7800

200.52 6.7804

200.53 6.7807

200.54 6.7811

200.55 6.7814

200.56 6.7817

200.57 6.7821

200.58 6.7824

200.59 6.7828

200.60 6.7831

200.61 6.7834

200.62 6.7838

200.63 6.7841

200.64 6.7844

200.65 6.7848

200.66 6.7851

200.67 6.7855

200.68 6.7858

200.69 6.7861

200.70 6.7865

200.71 6.7868

200.72 6.7872

200.73 6.7875

200.74 6.7878

mL fl oz

200.75 6.7882

200.76 6.7885

200.77 6.7888

200.78 6.7892

200.79 6.7895

200.80 6.7899

200.81 6.7902

200.82 6.7905

200.83 6.7909

200.84 6.7912

200.85 6.7915

200.86 6.7919

200.87 6.7922

200.88 6.7926

200.89 6.7929

200.90 6.7932

200.91 6.7936

200.92 6.7939

200.93 6.7943

200.94 6.7946

200.95 6.7949

200.96 6.7953

200.97 6.7956

200.98 6.7959

200.99 6.7963

Explanation:

5 0
2 years ago
Read 2 more answers
A bird is flying in a room with a velocity field of . Calculate the temperature change that the bird feels after 9 seconds of fl
Korvikt [17]

Complete Question

The complete question is shown on the first uploaded image

Answer:

The temperature change is \frac{dT}{dt} = 1.016 ^oC/m

Explanation:

From the question we are told that

   The velocity field with which the bird is flying is  \vec V =  (u, v, w)= 0.6x + 0.2t - 1.4 \ m/s

   The temperature of the room is  T(x, y, u) =  400 -0.4y -0.6z-0.2(5 - x)^2 \  ^o C

    The time considered is  t =  10 \  seconds

    The  distance that the bird flew is  x  =  1 m

 Given that the bird is inside the room then the temperature of the room is equal to the temperature of the bird

Generally the change in the bird temperature with time is mathematically represented as

      \frac{dT}{dt} = -0.4 \frac{dy}{dt} -0.6\frac{dz}{dt} -0.2[2 *  (5-x)] [-\frac{dx}{dt} ]

Here the negative sign in \frac{dx}{dt} is because of the negative sign that is attached to x in the equation

 So

       \frac{dT}{dt} = -0.4v_y  -0.6v_z -0.2[2 *  (5-x)][ -v_x]

From the given equation of velocity field

    v_x  =  0.6x

    v_y  =  0.2t

     v_z  =  -1.4

So

\frac{dT}{dt} = -0.4[0.2t]  -0.6[-1.4] -0.2[2 *  (5-x)][ -[0.6x]]

substituting the given values of x and t

\frac{dT}{dt} = -0.4[0.2(10)]  -0.6[-1.4] -0.2[2 *  (5-1)][ -[0.61]]

\frac{dT}{dt} = -0.8 +0.84 + 0.976

\frac{dT}{dt} = 1.016 ^oC/m

5 0
2 years ago
the distance between the sun and earth is about 1.5X10^11 m. express this distance with an SI prefix and kilometers
Angelina_Jolie [31]
First, we write the SI prefixed. The SI unit for distance is meters.

Kilo = 10³
Mega = 10⁶
Giga = 10⁹
Terra = 10¹²

Because our value has ten to the power of 11, we will use the closest and lowest power prefix, which is giga.

1.5 x 10¹¹ /  10⁹
= 1.5 x 10² Gm or 150 Gm

Writing in kilometers, we simply repeat the procedure except we divide by 10³ this time.

1.5 x 10¹¹ / 10³
= 1.5 x 10⁸ km
5 0
2 years ago
