A displacement vector has a magnitude of 810 m and points at an angle of 18° above the positive x axis. what are the x and y sca

lar components of this vector? x scalar component y scalar component

1 answer:

Naily [24]2 years ago

5 0

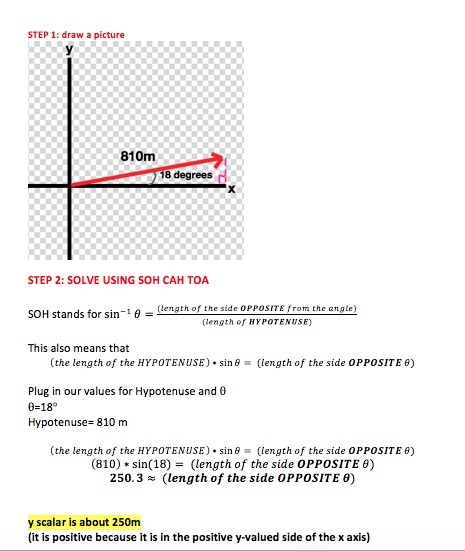

I attached my work and highlighted my answers. Hope it makes sense! please comment back with any questions if anything is still unclear! :)

You might be interested in

refrigerant 134a enters a compressor operating at steady state as saturated vapor at 0.12 MPa and exits at 1.2 MPa and 70 C at a

Afina-wow [57]

Answer:

the power input to the compressor is 7.19Kw

Explanation:

Hello!

To solve this problem follow the steps below.

1. We will call 1 the refrigerant state at the compressor inlet and 2 at the outlet.

2. We use thermodynamic tables to determine enthalpies in states 1 and 2.

(note: Through laboratory tests, thermodynamic tables were developed, these allow to know all the thermodynamic properties of a substance (entropy, enthalpy, pressure, specific volume, internal energy etc ..)

through prior knowledge of two other properties such as pressure and temperature. )

h1[quality=1, P=0.12Mpa)=237KJ/Kg

h2(P=1.2Mpa, t=70C)=300.6KJ/kg

3. uses the first law of thermodynamics in the compressor that states that the energy that enters a system is the same that must come out

Q=heat=0.32kJ/s

W=power input to the compressor

m=mass flow=0.108kg/S

m(h1)+W=Q+m(h2)

solving for W

W=Q+m(h2-h1)

W=0.32+0.108(300.6-237)=7.19Kw

the power input to the compressor is 7.19Kw

7 0

2 years ago

A rectangular tank that is 4 meters long, 3 meters wide and 6 meters deep is filled with a rubbing alcohol that has density 786

ki77a [65]

Answer:

Explanation:

The explanation is given in the attached document.

4 0

2 years ago

1. When the fission of uranium-235 is carried out, about 0.1 percent of the mass of the reactants is lost during the reaction. W

DerKrebs [107]

The correct answer to the question is that the lost mass has been converted into energy.

EXPLANATION:

From Einstein's theory, we know that energy and mass are inter convertible .

When some amount of mass is lost, same amount of energy equivalent to mass is produced.

Let us consider m is the mass lost during any reaction. Hence, the amount of energy produced will be-

Energy E = $mc^2$

Here, c is the velocity of light i.e c = $3\times 10^8\ m/s$

As per the question, uranium-235 undergoes fission. The amount of mass defect is 0.1 %.

The mass defect is defined as the difference between mass of reactants and products. During the fission, energy is produced.

The energy produced in this reaction is nothing else than the energy equivalent to mass defect. Approximately 199.5 Mev of energy equivalent to this mass defect is produced in this reaction.

6 0

2 years ago

Read 2 more answers

(a). The largest building in the world by volume is the boeing 747 plant in Everett, Washington. It measures approximately 631m

lions [1.4K]

Explanation:

Given that,

Length of the building, l = 631 m

Breadth of the building, b = 707 yards

Height of the building, h = 110 ft

1 meter = 3.28084 feet

631 m = 2070.21 feet

1 yard= 3 feet

707 yards = 2121 feet

(a) The volume of any cuboidal shape is given by :

$V=l\times b\times h$

$V=2070.21\ ft\times 2121\ ft\times 110\ ft$

$V=4.83\times 10^8\ ft^3$

(b) $V=4.83\times 10^8\ ft^3$

$V=(4.83\times 10^8\ ft^3)(\dfrac{1\ m}{3.281\ ft})^3$

$V=1.37\times 10^7\ m^3$

Hence, this is the required solution.

3 0

2 years ago

Which graph represents the motion of an object traveling with a positive velocity and a negative acceleration?

nignag [31]

Answer
graph 2

Explanation
Velocity is the rate of change of displacement.
Velocity = (change in displacement)/(change is time)
In graph 2, the gradient of the curve is positive, indicating that the velocity is positive.
Acceleration is the rate of change of velocity.
The steepness of the slope of the same graph (graph 2) is decreasing. This shows that the velocity is decreasing hence a negative acceleration.

5 0

2 years ago
