PLEASE HELP ASAP!!! CORRECT ANSWER ONLY PLEASE!!!

1 answer:

Mila [183]2 years ago

3 0

Answer:

C) from 4.5 to 5.0 seconds

Explanation:

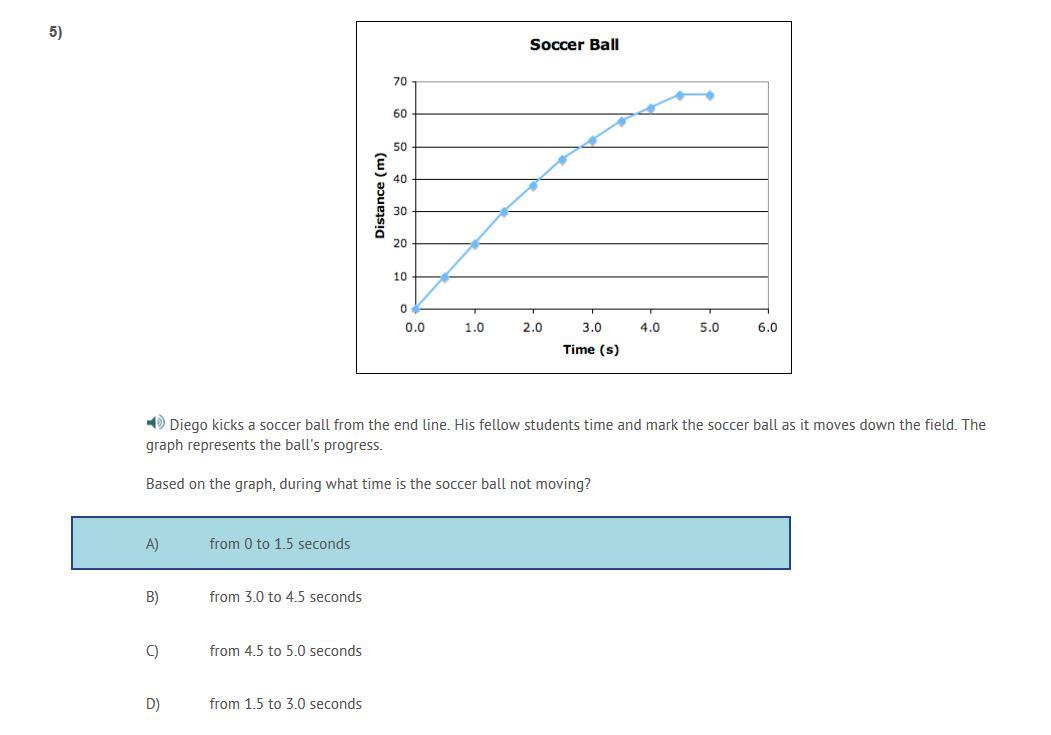

The graph shows the distance of the ball from the initial point (y-axis) against the time (x-axis).

In such graph, the speed of the ball corresponds to the slope of the curve, since it is equal to the ratio between the distance travelled (increment in the y-axis) and time taken (increment in the x-axis):

$v=\frac{\Delta y}{\Delta x}=\frac{d}{t}$

Therefore, we can say that the object is moving when the slope of the curve is not zero: when the slope of the curve is zero, instead, the object is at rest.

From the graph, we observe that between t=4.5 s and t=5.0 s the slope of the curve is zero, because the curve is horizontal. This means that the speed is zero, so the object is not moving.

You might be interested in

Bears eat fruits such as berries and animals such as fish. They hibernate in the winter. They give birth to live young . Which o

bulgar [2K]

Answer:

Bears are consumers

Explanation:

7 0

2 years ago

A certain alarm clock ticks four times each second, with each tick representing half a period. The balance wheel consists of a t

Semenov [28]

Answer:

a. $I=2.77x10^{-8} kg*m^2$

b. $K=4.37 x10^{-6} N*m$

Explanation:

The inertia can be find using

a.

$I = m*r^2$

$m = 0.95 g * \frac{1 kg}{1000g}=9.5x10^{-4} kg$

$r=0.54 cm * \frac{1m}{100cm} =5.4x10^{-3}m$

$I = 9.5x10^{-4}kg*(5.4x10^{-3}m)^2$

$I=2.77x10^{-8} kg*m^2$

now to find the torsion constant can use knowing the period of the balance

b.

T=0.5 s

$T=2\pi *\sqrt{\frac{I}{K}}$

Solve to K'

$K = \frac{4\pi^2* I}{T^2}=\frac{4\pi^2*2.7702 kg*m^2}{(0.5s)^2}$

$K=4.37 x10^{-6} N*m$

3 0

2 years ago

A ball of mass m and radius R is both sliding and spinning on a horizontal surface so that its rotational kinetic energy equals

spin [16.1K]

Answer:

$\frac{v_{cm}}{\omega} = 1.122\cdot R$

Explanation:

According to the statement of the problems, the following identity exists:

$K_{t} = K_{r}$

$\frac{1}{2}\cdot m \cdot v_{cm}^{2} = 0.63\cdot m \cdot R^{2} \cdot \omega^{2}$

After some algebraic handling, the ratio is obtained:

$\frac{v_{cm}^{2}}{\omega^{2}}=1.26\cdot R^{2}$

$\frac{v_{cm}}{\omega} = 1.122\cdot R$

4 0

2 years ago

An object travels 50 m in 4 s. It had no initial velocity and experiences constant acceleration. What is the magnitude of the ac

Allisa [31]

Answer:

The formula to calculate velocity in this case:

v = v0 + at

=> a = (v - v0)/t

= (50 - 0)/4

= 50/4 = 12.5 (m/s2)

Hope this helps!

:)

3 0

2 years ago

A satellite, orbiting the earth at the equator at an altitude of 400 km, has an antenna that can be modeled as a 1.76-m-long rod

ivann1987 [24]

Answer:

The inducerd emf is 1.08 V

Solution:

As per the question:

Altitude of the satellite, H = 400 km

Length of the antenna, l = 1.76 m

Magnetic field, B = $8.0\times 10^{- 5}\ T$

Now,

When a conducting rod moves in a uniform magnetic field linearly with velocity, v, then the potential difference due to its motion is given by:

$e = - l(vec{v}\times \vec{B})$

Here, velocity v is perpendicular to the rod

Thus

e = lvB (1)

For the orbital velocity of the satellite at an altitude, H:

$v = \sqrt{\frac{Gm_{E}}{R_{E}} + H}$

where

G = Gravitational constant

$m_{e} = 5.972\times 10^{24}\ kg$ = mass of earth

$R_{E} = 6371\ km$ = radius of earth

$v = \sqrt{\frac{6.67\times 10^{- 11}\times 5.972\times 10^{24}}{6371\times 1000 + 400\times 1000} = 7670.018\ m/s$

Using this value value in eqn (1):

$e = 1.76\times 7670.018\times 8.0\times 10^{- 5} = 1.08\ V$

5 0
