notka56 [123]
2 years ago
3

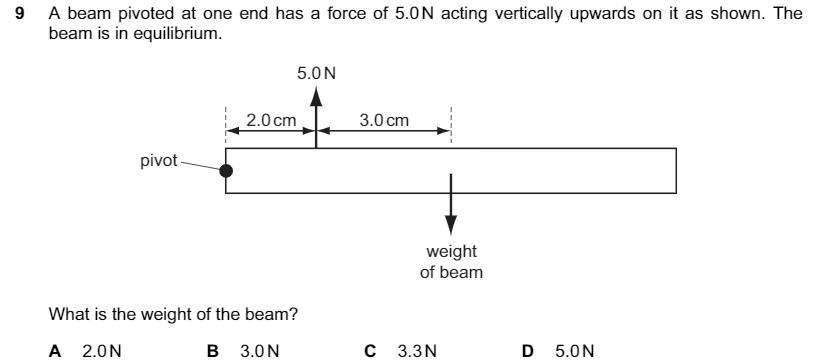

A beam pivoted at one end has a force of 5.0N acting vertically upwards on it as shown. the beam is in equilibrium.

Physics
1 answer:
olga55 [171]2 years ago
3 0

Answer:

Option A

Explanation:

Taking moments about the pivot, we know that the sum of clockwise moments equal the sum of anticlockwise moments at equilibrium. Therefore, at the pivot point

5N*2cm=Weight of beam*5 cm

Weight of beam = 5N*2cm/5cm=2 N

Clearly, the weight of the beam is 2N for it to remain in equilibrium

You might be interested in
A ping-pong ball weighs 0.025 N. The ball is placed inside a cup that sits on top of a vertical spring. If the spring is compres
kondor19780726 [428]

Answer:

Explanation:

The energy stored in the spring is used to throw the ball upwards . Let the height reached be h

stored energy of spring = 1/2 k y² , k is spring constant and y is compression created in the spring

stored energy of spring = potential energy of the ball

1/2 k y² = mgh , m is mass of the ball , h is height attained by ball

.5 k x .055² = .025  x 2.84

.0015125 k = .071

k = .071 / .0015125

= 46.9 N / m .

4 0
2 years ago
According to a rule-of-thumb. every five seconds between a lightning flash and the following thunder gives the distance to the f
Bond [772]

Answer:

S_{s}=300 m/s

The rule for kilometers is that every three seconds between a lightning flash and the following thunder gives the distance to the flash in kilometers.

Explanation:

In order to use the rule of thumb to find the speed of sound in meters per second, we need to use some conversion ratios. We know there is 1 mile per every 5 seconds after the lightning is seen. We also know that there are 5280ft in 1 mile and we also know that there are 0.3048m in 1ft. This is enough information to solve this problem. We set our conversion ratios like this:

\frac{1mi}{5s}*\frac{5280ft}{1mi}*\frac{0.3048m}{1ft}=321.87m/s

notice how the ratios were written in such a way that the units got cancelled when calculating them. Notice that in one ratio the miles were on the numerator of the fraction while on the other they were on the denominator, which allows us to cancel them. The same happened with the feet.

The problem asks us to express the answer to one significant figure so the speed of sound rounds to 300m/s.

For the second part of the problem we need to use conversions again. This time we will write our ratios backwards and take into account that there are 1000m to 1 km, so we get:

\frac{5s}{1mi}*\frac{1mi}{5280ft}*\frac{1ft}{0.3048m}*\frac{1000m}{1km}=3.11s/km

This means that for every 3.11s there will be a distance of 1km from the place where the lightning stroke. Since this is a rule of thumb, we round to the nearest integer for the calculations to be made easily, so the rule goes like this:

The rule for kilometers is that every three seconds between a lightning flash and the following thunder gives the distance to the flash in kilometers.

3 0
2 years ago
A sample of tendon 3.00 cm long and 4.00 mm in diameter is found to break under a minimum force of 128 N. If instead the sample
Hatshy [7]

Answer:128 N

Explanation:

Sample of 3 cm and 4 mm diameter found to break under a minimum force of 128 N .

If sample is 1.5 cm long with same cross-sectional area then minimum force required to break is also 128 N because the applied force is same for any length and diameter of tendon.

3 0
2 years ago
(1) A typical person has a surface area of about 2m^2 and a layer of fat about 1cm thick (It can vary from 0.5 cm to 1.5 cm) . E
KATRIN_1 [288]

Answer:

1)H=714 Watts of energy is given out.

2)614.34 KCal energy is burnt in an hour in the room

3)In freezing conditions, 1337.09 KCal is spent in an hour.

Explanation:

The formula for thermal conductivity states that the rate of heat loss H is as follows:

H=\frac{KA (T_{1}-T_{2})}{x}   where,

K=Coefficient of thermal conductivity

A=Area of Cross Section

H=Rate of heat loss

x=Thickness of the material

T_{1}-T_{2}=Temperature difference between the two surfaces of the body in context

T_{1}=37°C ie. Body Temperature

T_{2}=20°C ie. Room Temperature

For first case, T_{1}-T_{2}=17°C or 17°F

K for fat= 0.21 Wm^{-1}K^{-1}

A=2m^{2}

x=0.01 m

H=\frac{0.21 * 2* 17}{0.01}

H=714 Watts of energy is given out.

2) Power×Time(in seconds) = Energy

Energy= 714 × 60 × 60=2570400 J

2570400 J=614.3403442 KCal

Therefore, 614.3403442 KCal energy is burnt in an hour.

3) Only the temperature difference becomes 37°C from 17°C , rest everything remains the same, therefore the energy will also vary due to the temperature factor and more energy will be spent as in freezing climate T_{2}=0 °C

E=\frac{614.34*37}{17}=1337.09 KCal

In freezing conditions, 1337.09 KCal is spent in an hour.

8 0
2 years ago
A soccer ball kicked with a force of 13.5 n accelerates at 6.5 m/s^2 to the right. what is the mass of the ball?
Art [367]

Answer:

2.08 kg

Explanation:

We can solve the problem by using Newton's second law:

F=ma

where

F is the net force acting on an object

m is the mass of the object

a is its acceleration

In this problem, the ball is kicked with a force of F=13.5 N, and its acceleration is a=6.5 m/s^2, therefore we can re-arrange the equation to find the mass of the ball, m:

m=\frac{F}{a}=\frac{13.5 N}{6.5 m/s^2}=2.08 kg

7 0
2 years ago
Read 2 more answers
