Pani-rosa [81]
2 years ago
3

List the values of the displacement of the string at x = 4.0 m at 1 s intervals from t = 0 s to t = 6 s.

Physics
1 answer:
cupoosta [38]2 years ago
7 0

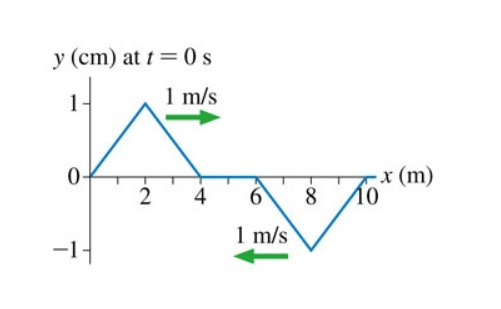

I attached the missing graph.
I also made an animation of what would happen, you can play with the slider t to see how waves would propagate. The resulting amplitude is simply the sum of amplitudes of each wave at that point.
I will mark one wave with g for green and one with r for red.
With this animation, it won't be hard to figure out the results.
t=0s; A_g=0;A_r=0:A=A_g+A_r=0\\
t=1s; A_g=0;A_r=0.5:A=A_g+A_r=0.5\\
t=2s; A_g=0;A_r=1:A=A_g+A_r=1\\
t=3s; A_g=-0.5;A_r=0.5:A=A_g+A_r=0\\
t=4s; A_g=-1;A_r=0:A=A_g+A_r=-1\\
t=5s; A_g=-0.5;A_r=0:A=A_g+A_r=-0.5\\
t=6s; A_g=0;A_r=0:A=A_g+A_r=0\\
Link to the animation:
https://www.desmos.com/calculator/ivl8tv10rk

You might be interested in
Suppose 1 kg of Hydrogen is converted into Helium. a) What is the mass of the He produced? b) How much energy is released in thi
morpeh [17]

Answer:

a) m = 993 g

b) E = 6.50 × 10¹⁴ J

Explanation:

atomic mass of hydrogen = 1.00794

4 hydrogen atom will make a helium atom = 4 × 1.00794 = 4.03176

we know atomic mass of helium = 4.002602

difference in the atomic mass of helium = 4.03176-4.002602 = 0.029158

fraction of mass lost = \dfrac{0.029158}{4.03176}= 0.00723

loss of mass for 1000 g = 1000 × 0.00723 = 7.23

a) mass of helium produced = 1000-7.23 = 993 g (approx.)

b) energy released in the process

E = m c²

E = 0.00723 × (3× 10⁸)²

E = 6.50 × 10¹⁴ J

4 0
2 years ago
Read 2 more answers
A ping-pong ball weighs 0.025 N. The ball is placed inside a cup that sits on top of a vertical spring. If the spring is compres
kondor19780726 [428]

Answer:

Explanation:

The energy stored in the spring is used to throw the ball upwards . Let the height reached be h

stored energy of spring = 1/2 k y² , k is spring constant and y is compression created in the spring

stored energy of spring = potential energy of the ball

1/2 k y² = mgh , m is mass of the ball , h is height attained by ball

.5 k x .055² = .025  x 2.84

.0015125 k = .071

k = .071 / .0015125

= 46.9 N / m .

4 0
2 years ago
Think of something from everyday life that follows a two-dimensional path. It could be a kicked football, a bus that's turning a
OLEGan [10]

Answer:

Let us consider the case of a bus turning around a corner with a constant velocity, as the bus approaches the corner, the velocity at say point A is Va, and is tangential to the curve with direction pointing away from the curve. Also, the velocity at another point say point B is Vb and is also tangential to the curve with direction pointing away from the curve.<em> </em><em>Although the velocity at point A and the velocity at point B have the same magnitude, their directions are different (velocity is a vector quantity), and hence we have a change in velocity. By definition, an acceleration occurs when we have a change in velocity, so the bus experiences an acceleration at the corner whose direction is away from the center of the corner</em>.

The acceleration is not aligned with the direction of travel because<em> the change in velocity is at a tangent (directed away) to the direction of travel of the bus.</em>

4 0
2 years ago
A race car driver must average 200km/hr for four laps to qualify for a race. Because of engine trouble, the car averages only 17
vampirchik [111]
The average speed would have to be 260 km/hr due to the driver originally going 30 km/hr too slow the first two laps
5 0
2 years ago
The suspension cable of a 1,000 kg elevator snaps, sending the elevator moving downward through its shaft. The emergency brakes
tester [92]

Answer:

option (E) 1,000,000 J

Explanation:

Given:

Mass of the suspension cable, m = 1,000 kg

Distance, h = 100 m

Now,

from the work energy theorem

Work done by the gravity = Work done by brake

or

mgh = Work done by brake

where, g is the acceleration due to the gravity = 10 m/s²

or

Work done by brake  = 1000 × 10 × 100

or

Work done by brake = 1,000,000 J

this work done is the release of heat in the brakes

Hence, the correct answer is option (E) 1,000,000 J

4 0
2 years ago
