Answer:
The x- component of the weight is 17.56 N.
Explanation:
It is given that,
Mass of the crate, m = 5 kg
X-Y axes tilted down a plane. We have to find the x- component of the weight. The weight of the crate is acting vertically downward.

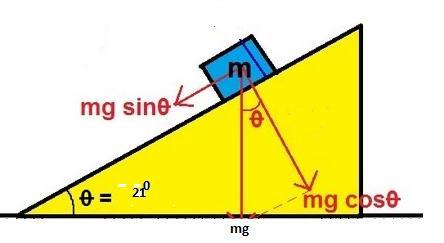

From the attached figure, the x- component of the crate is given by
So,
So, the x- component of the weight is 17.56 N. Hence, this is the required solution.
When air is blown into the open pipe,
L =
where nis any integral number 1,2,3,4 etc. and λ is the wavelength of the oscillation
⇒λ=
Note here that n=1 is for fundamental, n=2 is first harmonic and so on..
⇒ third harmonic will be n=4
Given L=6m, n=4, solving for λ we get:
λ= =3m
Relationship of frequency(f), velocity of sound (c) and wavelength(λ) is:
c=f.λ Or f=
⇒f=
≈115 Hz
Answer:
The graphs are attached
Explanation:
We are told that he starts with a constant speed of 25 m/s for a distance of 100 m.
At constant velocity, v = distance/time
time(t) = distance(d)/velocity(v)
t1 = 100/25
t1 = 4 s
Now, we are told that he applies his brakes and accelerates uniformly to a stop just as he reaches a wall 50m away.
It means, he decelerate and final velocity is zero.
Thus;
v² = u² + 2as
0² = 25² + 2a(50)
25² = - 100a
625 = - 100a
a = - 625/100
a = - 6.25 m/s²
v = u + at
0 = 25 + (-6.25t)
25 = 6.25t
t = 25/6.25
t = 4 s
With the values gotten, kindly find attached the distance-time and velocity-time graphs.
