According to the first rule, if a force pulls on one end of a rope, the tension in the rope equals the magnitude of the pulling

force. What is the magnitude T1 of the tension in rope 1? Express your answer in terms of some or all of the variables F, mB and g.

1 answer:

gayaneshka [121]2 years ago

7 0

Answer:

The answer is well explained in the attachments. We are going to find the force acting on the rope with Newton's third law. It is obvious that the question is culled from the equilibrium concept.

The answer is "The magnitude of tension T1 in rope 1 is equal to F

Explanation:

Newton's third law states that for every action, there is an opposite and equal reaction.

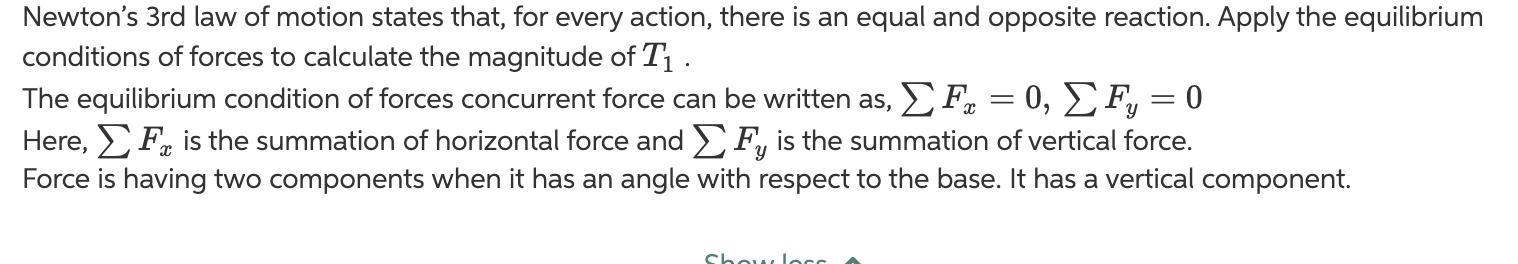

Open the attachment to see detailed solution and explanation of the problem

You might be interested in

A weightlifter lifts a 13.0-kg barbel from the ground an moves it a distance of 1.3 meters. What is the work se does on the barb

marta [7]

The work done on the barbell is -165.62 Nm.

Explanation:

Work done on any object is the measure of force required to move that object from one position to another. So it is determined by the product of force acting on the object with the displacement of the object.

In the present problem, the displacement of the object on acting of force is given as 1.3 m. And the weight of the object which is a barbel is given as 13 kg. As the work is to lift the object from the ground, so the acceleration due to gravity will be acting on the object. In other words, the force applied on the object to lift it should be in opposite direction to the acting of acceleration due to gravity.

Thus, $Force = - Mass * Acceleration due to gravity = - 13 * 9.8 =-127.4 N$

Now, the force is -127.4 N and the displacement is 1.3 m.

So, $Work done = F*d$

$Work done = -127.4* 1.3 = -165.62 Nm$

So, the work done on the barbell is -165.62 Nm.

6 0

2 years ago

A carbon-dioxide laser emits infrared light with a wavelength of 10.6 μm. What is the length of a tube that will oscillate in th

alex41 [277]

Answer:

The length of a tube and number of rounds are 0.848 m and $1.77\times10^{8}\ trip\ per\ second$ .

Explanation:

Given that,

Wavelength $\lambda= 10.6\mu m$

m = 160000

We need to calculate the length

Using formula of wavelength

Laser tube behave like closed pipe

$m\dfrac{\lambda}{2}=L$

$L=160000\times\dfrac{10.6\times10^{-6}}{2}$

$L=0.848\ m$

Distance traveled by pulse of light in one back and fourth trip

$d=2L$

$d=2\times0.848$

$d=1.696\ m$

We need to calculate the time

Using formula for time

$t = \dfrac{d}{c}$

$t=\dfrac{1.696}{3\times10^{8}}$

$t=5.653\times10^{-9}\ s$

We need to calculate the number of round

Using formula of number of round

$N=\dfrac{1}{t}$

$N= \dfrac{1}{5.653\times10^{-9}}$

$N=1.77\times10^{8}\ trip\ per\ second$

Hence, The length of a tube and number of rounds are 0.848 m and $1.77\times10^{8}\ trip\ per\ second$ .

7 0

2 years ago

In an attempt to impress its friends, an acrobatic beetle runs and jumps off the bottom step of a flight of stairs. The step is

Aleks04 [339]

Answer:

0.3677181864 m

Explanation:

u = Velocity = 1.5 m/s

$\theta$ = Angle = 20°

y = -20 cm

Velocity components

$u_x=ucos\theta\\\Rightarrow u_x=1.5cos20\\\Rightarrow u_x=1.40953\ m/s$

$u_y=usin\theta\\\Rightarrow u_y=1.5sin20\\\Rightarrow u_y=0.51303\ m/s$

Acceleration components

$a_x=0$

$a_y=-9.81\ m/s^2$

$y=u_yt+\dfrac{1}{2}a_yt^2\\\Rightarrow -0.2=0.51303\times t+\dfrac{1}{2}\times -9.81t^2\\\Rightarrow 4.905t^2-0.51303t-0.2=0$

$t=\frac{-\left(-0.51303\right)+\sqrt{\left(-0.51303\right)^2-4\cdot \:4.905\left(-0.2\right)}}{2\cdot \:4.905}, \frac{-\left(-0.51303\right)-\sqrt{\left(-0.51303\right)^2-4\cdot \:4.905\left(-0.2\right)}}{2\cdot \:4.905}\\\Rightarrow t=0.26088, -0.15629$

Time taken is 0.26088 seconds

$x=u_xt+\dfrac{1}{2}a_xt^2\\\Rightarrow x=1.40953\times 0.26088\\\Rightarrow x=0.3677181864\ m$

The distance the beetle travels on the ground is 0.3677181864 m

6 0

2 years ago

A squeeze bottle squeezes when pressed. It regains its shape when pressed .It regains its shape when the pressure from your hand

Leokris [45]

Answer:

The squeeze will not regain its shape

Explanation:

The squeeze bottle will not regain its shape.

This is because the atmospheric pressure compresses the squeeze bottle. Since the pressure in the squeeze bottle is now not equal to the atmospheric pressure since it has been corked tightly, its internal pressure cannot balance out the atmospheric pressure and thus cancel its effect.

So, the squeeze bottle does not regain its shape due to this imbalance of pressure.

5 0

2 years ago

Which force changes the lithosphere by building up the surface?

Sunny_sXe [5.5K]

Answer:

volcanic eruptions

Explanation:

The volcanic eruptions are the ones that manage to cause changes to the lithosphere by building up new material on the surface. Through the volcanic eruptions we have release of pyroclastic material on the surface, and more importantly and in much higher amount lava flows. The lava flows quickly cool off on the surface on the Earth, and as they do they pile up new layers of igneous rocks, thus new crust on the surface of the Earth, causing changes on the lithosphere and shaping it for the foreseeable future.

4 0
