marishachu [46]
2 years ago
13

A solar cell has an open circuit voltage value of 0.60 V with a reverse saturation current density of Jo = 3.9 × 10−9 A/m2 . The

temperature of the cell is 27◦C, the cell voltage is 0.52 V, and the cell area is 28 m2 . If the solar irradiation is 485 W/m2 , determine the power output and the efficiency of the solar cell.

Physics
1 answer:
xenn [34]2 years ago
4 0

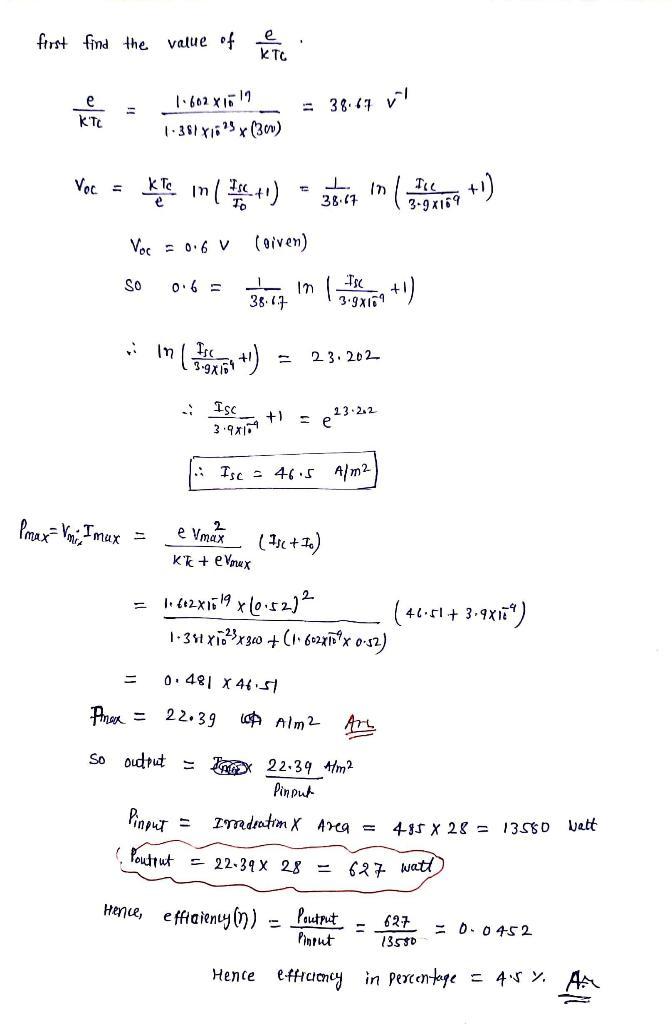

Answer:

Explanation:

given data

ocv=0.6 V

Vmax= 0.52 v

J₀= 3.9*10⁻⁹

You might be interested in
Tom has built a large slingshot, but it is not working quite right. He thinks he can model the slingshot like an ideal spring wi
Amiraneli [1.4K]

Answer:

8.9

Explanation:

We can start by calculating the initial elastic potential energy of the spring. This is given by:

U=\frac{1}{2}kx^2 (1)

where

k = 35.0 N/m is the initial spring constant

x = 0.375 m is the compression of the spring

Solving the equation,

U=\frac{1}{2}(35.0)(0.375)^2=2.5 J

Later, the professor told the student that he needs an elastic potential energy of

U' = 22.0 J

to achieve his goal. Assuming that the compression of the spring will remain the same, this means that we can calculate the new spring constant that is needed to achieve this energy, by solving eq.(1) for k:

k'=\frac{2U'}{x^2}=\frac{2(22.0)}{0.375^2}=313 N/m

Therefore, Tom needs to increase the spring constant by a factor:

\frac{k'}{k}=\frac{313}{35}=8.9

7 0
2 years ago
You are riding a rollercoaster going around a vertical loop, on the inside of the loop. If the loop has a radius of 30 meters, h
Debora [2.8K]

Answer:

Speed of the cart at the top of the loop = 34.3 m/s

Explanation:

Gravitational acceleration = g = 9.81 m/s2

Your mass = m

You feel three times as heavy at the top of the loop.

Normal force on you = N = 3mg

Radius of the loop = R

Speed of the cart = V

Centripetal force required for the circular motion = Fc

F = m

The centripetal force is provided by the normal force on you which is directed downwards and your own weight which is directed downwards.

Fc = mg + N

Fc = mg + 3mg

Fc = 4mg

m12 -= 4mg R

V = 4gR

V = 4(9.81)(30)

V = 34.3 m/s

Speed of the cart at the top of the loop = 34.3 m/s

3 0
2 years ago
Read 2 more answers
A space shuttle orbits Earth at a speed of 21,000 km/hr. How far does it go in 3.5 hrs?
inn [45]
Since it travels at 21,000 kilometers per hour, you'd just multiply that with 3.5 to get 73,500. So your answer is 73,500.

5 0
2 years ago
Wire A has the same length and twice the radius of wire B. Both wires are made of the same material and carry the same current.
WARRIOR [948]

Answer:

V_A= \frac{I_A}{n_A e A_A}= \frac{I}{ne 4A_B}= \frac{1}{4} \frac{I}{neA_B}

V_B= \frac{I_B}{n_B e A_B}= \frac{I}{ne A_B}

And as we can see we have that:

V_A = \frac{1}{4} V_B

So then the best answer would be:

a. vA = vB/4

Explanation:

For this case we know the following conditions:

L_A = L_B =L same length

I_A = I_B =I both wires with the same current

Both wires are made of he same material, so then the number of electrons per cubic meter (n) are the same for both wires n_A = n_B =n

We also know that r_A = 2 r_B where r represent the radius.

Since we know that a wire have a cylindrical form we can find the area for each case:

A_A= \pi r^2_A = \pi (2r_B)^2 = 4 \pi r^2_B= 4 A_B

A_B = \pi r^2_B

So then we have that A_A = 4 A_B

Now we know that from the definition the drift velocity of electron in a wire is given by:

v_d = \frac{I}{neA}

Where I is the current, n the number of electrons per cubic meter, e is the charge for the electron and A the area.

If we replace we have this:

V_A= \frac{I_A}{n_A e A_A}= \frac{I}{ne 4A_B}= \frac{1}{4} \frac{I}{neA_B}

V_B= \frac{I_B}{n_B e A_B}= \frac{I}{ne A_B}

And as we can see we have that:

V_A = \frac{1}{4} V_B

So then the best answer would be:

a. vA = vB/4

6 0
2 years ago
Complete combustion of 1.0 metric ton of coal (assuming pure carbon) to gaseous carbon dioxide releases 3.3 x 1010 j of heat. co
netineya [11]
Keeping in mind that the conversion between calories and Joules is
1 cal = 4.186 J
we can write the conversion factor using the kilocalories:
1 kcal = 4186 J

The energy released in our problem is
E=3.3 \cdot 10^{10} J
so we can set a simple proportion to find its equivalent in kcal:
1 kcal: 4186 J = x: 3.3 \cdot 10^{10} J
from which we find:
x= \frac{3.3 \cdot 10^{10} J \cdot 1 kcal}{4186 J} =7.88 \cdot 10^6 kcal
6 0
2 years ago
