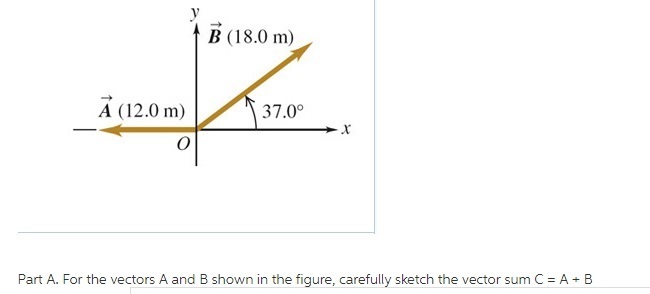

Problem 3.2 Part A Draw the vector C⃗ =A⃗ +B⃗ .(Figure 1)

Physics

1 answer:

Elodia [21]2 years ago

5 0

I can't answer this question without a figure. I've found a similar problem as shown in the first picture attached. When adding vectors, you don't have to add the magnitudes only, because vectors also have to factor in the directions. To find the resultant vector C, connect the end tails of the individual vectors. The red line (second picture) represents the vector C.

You might be interested in

Fiber optic (FO) cables are based upon the concept of total internal reflection (TIR), which is achieved when the FO core and cl

kozerog [31]

Answer:

False

Explanation:

Though fiber active cable is based on the concept of internal reflection but it is achieved by refractive index which transmit data through fast traveling pulses of light. It has a layer of glass and insulating casing called “cladding,”and this is is wrapped around the central fiber thereby causing light to continuously bounce back from the walls of the Cable.

7 0

2 years ago

A runner has a momentum of 720 kg m/s and is traveling at a velocity of 5 m/s. What is his mass?

antiseptic1488 [7]

I could be wrong, but I'm pretty sure it's 144kg.

8 0

2 years ago

Read 2 more answers

If a rock is thrown upward on the planet mars with a velocity of 14 m/s, its height (in meters) after t seconds is given by h =

crimeas [40]

Answer:

Velocity of rock after 2 seconds = 6.56 m/s

Explanation:

We have equation of motion , $s= ut+\frac{1}{2} at^2$ , s is the displacement, u is the initial velocity, a is the acceleration and t is the time.

Here height of rock in meters, h = $14t-1.86t^2$

Comparing both the equations

We will get initial velocity = 14 m/s(already given) and $\frac{1}{2} a = -1.86$

So, Acceleration, a = -3.72 $m/s^2$

Now we have equation of motion, v = u + at, where v is the final velocity, u is the initial velocity, a is the acceleration and t is the time taken.

When time is 2 seconds we need to find final velocity.

v = 14 - 3.72 * 2 = 6.56 m/s.

So, Velocity of rock after 2 seconds = 6.56 m/s

6 0

2 years ago

Charge q1 is distance r from a positive point charge q. charge q2=q1/3 is distance 2r from q. what is the ratio u1/u2 of their p

makvit [3.9K]

We need the power law for the change in potential energy (due to the Coulomb force) in bringing a charge q from infinity to distance r from charge Q. We are only interested in the ratio U₁/U₂, so I'm not going to bother with constants (like the permittivity of space).

The potential energy of charge q is proportional to
∫[s=r to ∞] qQs⁻²ds = -qQs⁻¹|[s=r to ∞] = qQr⁻¹,

so if r₂ = 3r₁ and q₂ = q₁/4, then
U₁/U₂ = q₁Qr₂/(r₁q₂Q) = (q₁/q₂)(r₂/r₁)
= 4•3 = 12.

5 0

2 years ago

A fly has a mass of 1 gram at rest. how fast would it have to be traveling to have the mass of a large suv, which is about 3000

Zigmanuir [339]

We solve this using special relativity. Special relativity actually places the relativistic mass to be the rest mass factored by a constant "gamma". The gamma is equal to 1/sqrt (1 - (v/c)^2).

We want a ratio of 3000000 to 1, or 3 million to 1.

Therefore:
3E6 = 1/sqrt (1 - (v/c)^2)
1 - (v/c)^2 = (0.000000333)^2
0.99999999999999 = (v/c)^2
0.99999999999999 = v/c
v= 99.999999999999% of the speed of light ~ speed of light
v = 3 x 10^8 m/s

8 0
