Andrew [12]
2 years ago
10

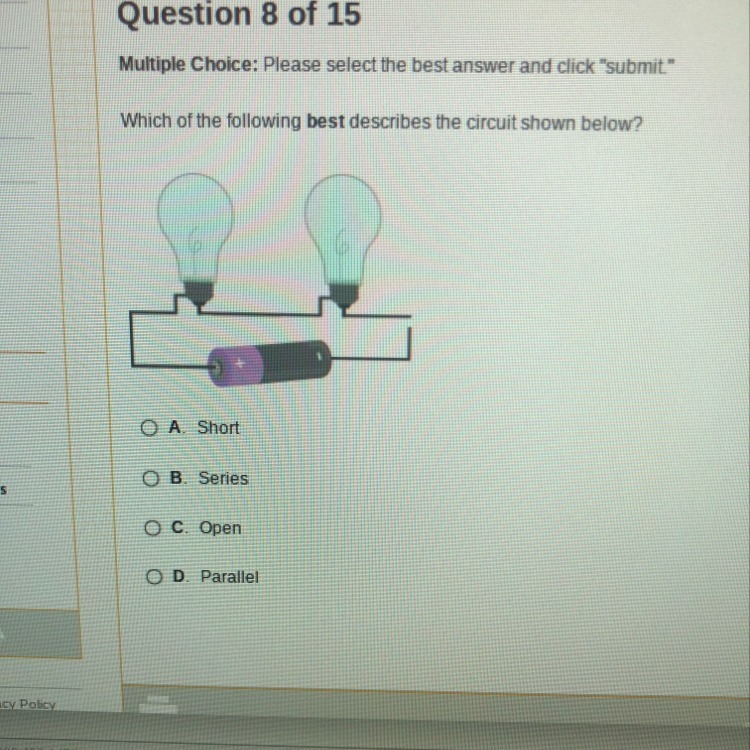

Which of the following best describes the circuit shown below?

Physics
2 answers:
Irina18 [472]2 years ago
7 0
The circuit that best describes the circuit shown in the image is an open circuit.

As you can see on the diagram,the circuit is not complete. At the upper right-hand corner, the wire is not connected. This means that the pathway is open.
rewona [7]2 years ago
3 0

Answer:

<h2><u><em>C/ open</em></u></h2>

Explanation:

You might be interested in
Assume that you stay on the earth's surface. what is the ratio of the sun's gravitational force on you to the earth's gravitatio
Pachacha [2.7K]
First, let's determine the gravitational force of the Earth exerted on you. Suppose your weight is about 60 kg.

F = Gm₁m₂/d²
where
m₁ = 5.972×10²⁴ kg (mass of earth)
m₂ = 60 kg
d = 6,371,000 m (radius of Earth)
G = 6.67408 × 10⁻¹¹ m³ kg⁻¹ s⁻²

F = ( 6.67408 × 10⁻¹¹ m³ kg⁻¹ s⁻²)(60 kg)(5.972×10²⁴ kg)/(6,371,000 m )²
F = 589.18 N

Next, we find the gravitational force exerted by the Sun by replacing,
m₁ = 1.989 × 10³⁰<span> kg
Distance between centers of sun and earth = 149.6</span>×10⁹ m
Thus,
d = 149.6×10⁹ m - 6,371,000 m = 1.496×10¹¹ m

Thus,
F = ( 6.67408 × 10⁻¹¹ m³ kg⁻¹ s⁻²)(60 kg)(1.989 × 10³⁰ kg)/(1.496×10¹¹ m)²
F = 0.356  N

Ratio = 0.356  N/589.18 N
<em>Ratio = 6.04</em>
5 0
2 years ago
Read 2 more answers
What is the net force required to give an automobile with a mass of 1,600 kg an acceleration of 4.5 m/s2
Paladinen [302]

Answer:

Fnet=7200 N

Explanation:

Fnet=mass x acceleration

mass= 1600kg acceleration=4.5m/s^2

8 0
2 years ago
A steel cable 1.25 in. in diameter and 50 ft long is to lift a 20-ton load without permanently deforming. What is the length of
Over [174]

Answer:

50.0543248872 ft

Explanation:

F = Load = 20 ton = 20\times 2000\ lb

d = Diameter = 1.25 in

L_1 = Initial length = 50 ft

L_2 = Final length

A = Area = \dfrac{\pi}{4}d^2

Y = Young's modulus = 30\times 10^6\ psi

Young's modulus is given by

Y=\dfrac{FL}{A\Delta L}\\\Rightarrow Y=\dfrac{FL_1}{\dfrac{\pi}{4}d^2(L_2-L_1)}\\\Rightarrow L_2=\dfrac{4FL_1}{Y\pi d^2}+L_1\\\Rightarrow L_2=\dfrac{4\times 40000\times 50}{30\times 10^6\times \pi\times 1.25^2}+50\\\Rightarrow L_2=50.0543248872\ ft

The length during the lift is 50.0543248872 ft

6 0
2 years ago
At the equator, the earth’s field is essentially horizontal; near the north pole, it is nearly vertical. In between, the angle v
Yanka [14]

Answer:

A current of 0.358A is required

Explanation:

Pls refer to attached document for more details

7 0
2 years ago
Which statement about work and power correctly describes an automobile race?
miv72 [106K]
Well this question looks like it makes some assumptions.  So assuming that both cars have the same mass and experience the same wind resistance regardless of speed and same internal frictions, then we could say "The car that finishes last has the lowest power".  The reason is that for a given race the cars must overcome losses associated with motion.  Since they all travel the same distance, the amount of work will be the same for both.  This is because work is force times distance.  If the force applied is the same in both cases (identical cars with constant wind resistance) and the distance is the same for both (a fair race track) then W=F·d will be the same.
Power, however, is the work done divided by the time over which it is done.  So for a slower car, time t will be larger.  The power ratio W/t will be smaller for the longer time (slower car).
7 0
2 years ago
Read 2 more answers
